Hardware Description

The following illustration shows the important interface and hardware components of the ULINK2 Adapter.

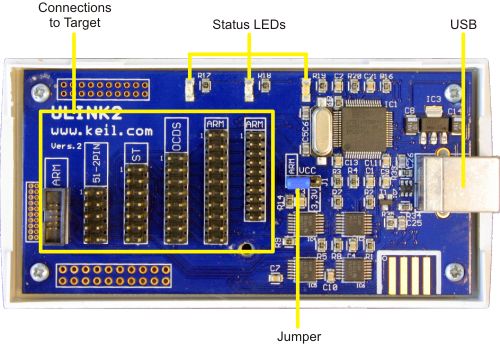

ULINK Adapter (cover off)

In general, there is very little you must do to configure ULINK for your target system. However, you may be required to:

• Set the ULINK Configuration Jumpers.
• Connect the appropriate cable to the Target Connectors.
