Debug Driver Configuration

Use the Options for Target toolbar button and click the Debug tab to display the Debug dialog.

µVision uses a target driver to connect to and control Flash downloading and debugging. For debugging, select the target driver from the Use: section of the Options for Target — Debug dialog.

In general, you must choose the driver that matches your In-Circuit Emulator (ICE) or target debugger from the drop-down list. When using ULINK2, select the appropriate ULINK driver for your target hardware.

Note

• The ULINK2 adapter uses the same drivers as the ULINK adapter, and requires the following product versions or higher:
  • MDK-ARM — V3.04
  • C166 — V6.06
  • C51 — V8.06

Check the Load Application at Startup and Run to main() options to load your application and execute code up to the first executable statement of your main() function when the debugger starts.

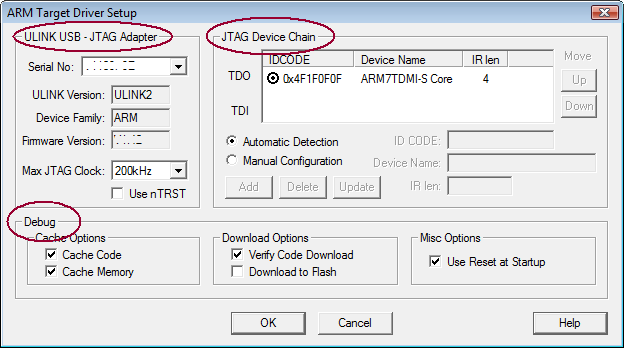

Connect the ULINK2 adapter to your PC, then click the Settings button to display the Target Driver Setup dialog.

The Target Driver Setup dialog is composed of three groups of information and configuration settings:

• ULINK2 USB-JTAG Adapter
• JTAG Device Chain
• Debug
