Peripheral Simulation

For Infineon C167CS-LM — CAN2 Controller

Simulation support for this peripheral or feature is comprised of:

• Dialog boxes which display and allow you to change peripheral configuration.
• VTREGs (Virtual Target Registers) which support I/O with the peripheral.

These simulation capabilities are described below.

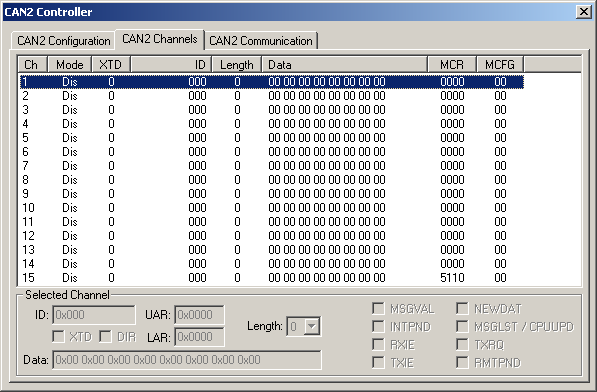

CAN2 Channels Dialog

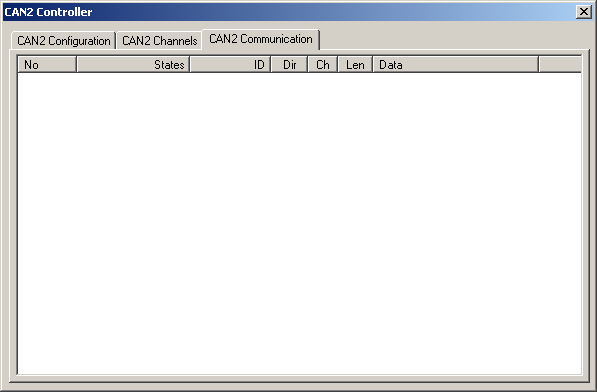

CAN2 Communication Dialog

The Controller Area Network (CAN) Controller Communication tab displays the CAN communication activity on the CAN bus. The Message number, States, Message Identifier, Message Direction, Channel, Data Length and Data content are displayed for each message. To clear the message display, double-click anywhere in the message display area.

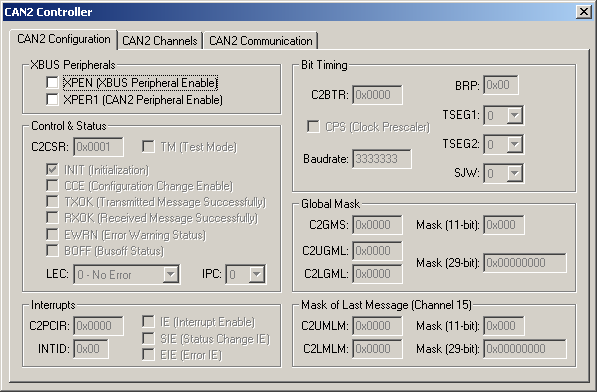

CAN2 Configuration Dialog

CAN2Bx VTREG
Data Type: unsigned char

The CAN2Bx VTREGs contains the eight bytes of the CAN message. CAN2B0 is the first byte, CAN2B1 is the second byte, and so on.

• When the simulated MCU transmits a CAN message, these VTREGs contain the message data bytes.
• To simulate a received CAN message, these VTREGs must be initialized with the message data bytes.

CAN2ID VTREG
Data Type: unsigned long

The CAN2ID VTREG specifies the ID of the CAN message.

• When the simulated MCU transmits a CAN message, this VTREG contains the message ID.
• To simulate a received CAN message, this VTREG must be initialized with the message ID.

CAN2IN VTREG
Data Type: unsigned char

The CAN2IN VTREG specifies the type of CAN message the simulated MCU will receive. The values 1-4 are used:

• 1: Message with 11-bit ID.
• 2: Message with 29-bit ID.
• 3: Message Request with 11-bit ID.
• 4: Message Request with 29-bit ID.

For example:

CAN2IN=2;  // Input a 29-bit ID message

CAN2L VTREG
Data Type: unsigned char

The CAN2L VTREG specifies the length of the CAN message in bytes.

• When the simulated MCU transmits a CAN message, this VTREG contains the number of bytes in the message.
• To simulate a received CAN message, this VTREG must be initialized with the number of bytes in the message.

CAN2OUT VTREG
Data Type: unsigned char

The CAN2OUT VTREG specifies the type of CAN message that was transmitted by the simulated MCU. The values 1-4 are used:

• 1: Message with 11-bit ID was sent.
• 2: Message with 29-bit ID was sent.
• 3: Message Request with 11-bit ID was sent.
• 4: Message Request with 29-bit ID was sent.
