Peripheral Simulation

For STMicroelectronics STR755FV2 — I²C Interfaces (I2C0-I2C1)

Simulation support for this peripheral or feature is comprised of:

  • Dialog boxes which display and allow you to change peripheral configuration.
  • VTREGs (Virtual Target Registers) which support I/O with the peripheral.

These simulation capabilities are described below.

I2C 0 Interface Dialog

I2C 0 Interface

I2C 0 Interface Dialog

I2C 0 Interface

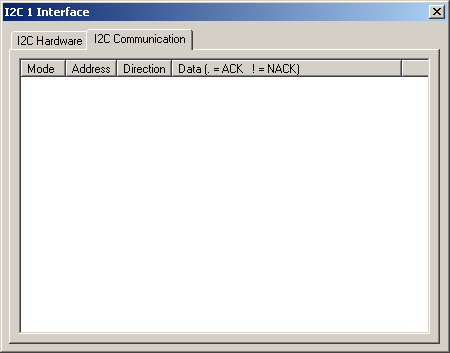

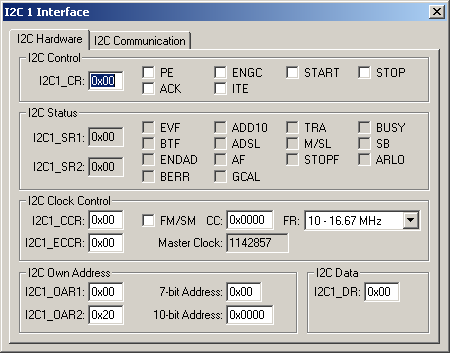

I2C 1 Interface Dialog

I2C 1 Interface

I2C 1 Interface Dialog

I2C 1 Interface

I2C0 Input VTREG
Data Type: unsigned short


I2C0 Output VTREG
Data Type: unsigned short


I2C1 Input VTREG
Data Type: unsigned short


I2C1 Output VTREG
Data Type: unsigned short


Get more information about the
Peripheral Simulation Capabilities
of the µVision Debugger.
