Peripheral Simulation

For Atmel AT91SAM9263 — PIOA-E (32 I/O Lines each)

Simulation support for this peripheral or feature is comprised of:

• Dialog boxes which display and allow you to change peripheral configuration.
• VTREGs (Virtual Target Registers) which support I/O with the peripheral.

These simulation capabilities are described below.

Parallel I/O A Dialog

The PIO Dialog box allows you to configure the parallel I/O port using checkboxes. Controls in this dialog are presented in groups which are described below.

PIO/Output/Input Filter/Output Data/Multi Driver/Pull-up/AB Select/Output Write

• The PIOA_PSR (PIO Status Register) check boxes indicate which pins are controlled by the associated peripheral (0-unchecked) and which pins are controlled by the PIO (1-checked). Changing the values of these check boxes changed the values of the PIOA_PER and PIOA_PDR peripheral registers.
• The PIOA_OSR (Output Status Register) check boxes indicate the output status (0-unchecked for input, 1-checked for output) of the corresponding pin. Changing these check boxes writes to the PIOA_OER or PIOA_ODR peripheral registers.
• The PIOA_IFSR (Input Filter Status Register) check boxes indicate that glitch filtering is enabled (1-checked) for the corresponding pin. Changing these check boxes writes to the PIOA_IFER or PIOA_IFDR peripheral registers.
• The PIOA_ODSR (Output Data Status Register) check boxes indicate the output value for each port pin. Changing these check boxes writes to the PIOA_SODR or PIOA_CODR peripheral registers.
• The PIOA_MDSR (Multidriver Status Register) check boxes indicate whether each port pin is open drain (1-checked) or not (0-unchecked). Changing these check boxes writes to the PIOA_MDER or PIOA_MDDR peripheral registers.
• The PIOA_PUSR (Pull-up Status Register) enables or disables an embedded 100k ohm pull-up resistor for each bit.
• The PIOA_ABSR (AB Select Status Register) determines whether the I/O pins are controlled by the PIO controller or the the corresponding on-chip peripheral.
• The PIOA_OWSR (Output Write Status Register) displays the output data mask bits set by writing to PIOA_OWER, or reset by writing to PIOA_OWDR.

Pin Data Status

• The PIOA_PDSR (Pin Data Status Register) check boxes indicate the pin data status of the pins on the simulated MCU.

I/O Pins

• The Pins check boxes indicate the states of the pins on the simulated MCU. When used as outputs, these have the same value as the PIOA_ODSR check boxes. When used as inputs you may set the level of the input pin to high (1) or low (0).

Interrupt Mask & Status

• The PIOA_IMR (Interrupt Mask Register) check boxes indicate the interrupts enabled for each corresponding pin. Changing these check boxes writes to the PIOA_IER or PIOA_IDR peripheral registers.
• The PIOA_ISR (Interrupt Status Register) check boxes allow you to view the interrupt status registers for the PIOA pins.

Parallel I/O B Dialog

The PIO B Dialog box allows you to configure the parallel I/O port using checkboxes. Controls in this dialog are presented in groups which are described below.

PIO/Output/Input Filter/Output Data/Multi Driver/Pull-up/AB Select/Output Write

• The PIOB_PSR (PIO Status Register) check boxes indicate which pins are controlled by the associated peripheral (0-unchecked) and which pins are controlled by the PIO (1-checked). Changing the values of these check boxes changed the values of the PIOB_PER and PIOB_PDR peripheral registers.
• The PIOB_OSR (Output Status Register) check boxes indicate the output status (0-unchecked for input, 1-checked for output) of the corresponding pin. Changing these check boxes writes to the PIOB_OER or PIOB_ODR peripheral registers.
• The PIOB_IFSR (Input Filter Status Register) check boxes indicate that glitch filtering is enabled (1-checked) for the corresponding pin. Changing these check boxes writes to the PIOB_IFER or PIOB_IFDR peripheral registers.
• The PIOB_ODSR (Output Data Status Register) check boxes indicate the output value for each port pin. Changing these check boxes writes to the PIOB_SODR or PIOB_CODR peripheral registers.
• The PIOB_MDSR (Multidriver Status Register) check boxes indicate whether each port pin is open drain (1-checked) or not (0-unchecked). Changing these check boxes writes to the PIOB_MDER or PIOB_MDDR peripheral registers.
• The PIOB_PUSR (Pull-up Status Register) enables or disables an embedded 100k ohm pull-up resistor for each bit.
• The PIOB_ABSR (AB Select Status Register) determines whether the I/O pins are controlled by the PIO controller or the the corresponding on-chip peripheral.
• The PIOB_OWSR (Output Write Status Register) displays the output data mask bits set by writing to PIOB_OWER, or reset by writing to PIOB_OWDR.

Pin Data Status

• The PIOB_PDSR (Pin Data Status Register) check boxes indicate the pin data status of the pins on the simulated MCU.

I/O Pins

• The Pins check boxes indicate the states of the pins on the simulated MCU. When used as outputs, these have the same value as the PIOB_ODSR check boxes. When used as inputs you may set the level of the input pin to high (1) or low (0).

Interrupt Mask & Status

• The PIOB_IMR (Interrupt Mask Register) check boxes indicate the interrupts enabled for each corresponding pin. Changing these check boxes writes to the PIOB_IER or PIOB_IDR peripheral registers.
• The PIOB_ISR (Interrupt Status Register) check boxes allow you to view the interrupt status registers for the PIOB pins.

Parallel I/O C Dialog

The PIO C Dialog box allows you to configure the parallel I/O port using checkboxes. Controls in this dialog are presented in groups which are described below.

PIO/Output/Input Filter/Output Data/Multi Driver/Pull-up/AB Select/Output Write

• The PIOC_PSR (PIO Status Register) check boxes indicate which pins are controlled by the associated peripheral (0-unchecked) and which pins are controlled by the PIO (1-checked). Changing the values of these check boxes changed the values of the PIOC_PER and PIOC_PDR peripheral registers.
• The PIOC_OSR (Output Status Register) check boxes indicate the output status (0-unchecked for input, 1-checked for output) of the corresponding pin. Changing these check boxes writes to the PIOC_OER or PIOC_ODR peripheral registers.
• The PIOC_IFSR (Input Filter Status Register) check boxes indicate that glitch filtering is enabled (1-checked) for the corresponding pin. Changing these check boxes writes to the PIOC_IFER or PIOC_IFDR peripheral registers.
• The PIOC_ODSR (Output Data Status Register) check boxes indicate the output value for each port pin. Changing these check boxes writes to the PIOC_SODR or PIOC_CODR peripheral registers.
• The PIOC_MDSR (Multidriver Status Register) check boxes indicate whether each port pin is open drain (1-checked) or not (0-unchecked). Changing these check boxes writes to the PIOC_MDER or PIOC_MDDR peripheral registers.
• The PIOC_PUSR (Pull-up Status Register) enables or disables an embedded 100k ohm pull-up resistor for each bit.
• The PIOC_ABSR (AB Select Status Register) determines whether the I/O pins are controlled by the PIO controller or the the corresponding on-chip peripheral.
• The PIOC_OWSR (Output Write Status Register) displays the output data mask bits set by writing to PIOC_OWER, or reset by writing to PIOC_OWDR.

Pin Data Status

• The PIOC_PDSR (Pin Data Status Register) check boxes indicate the pin data status of the pins on the simulated MCU.

I/O Pins

• The Pins check boxes indicate the states of the pins on the simulated MCU. When used as outputs, these have the same value as the PIOC_ODSR check boxes. When used as inputs you may set the level of the input pin to high (1) or low (0).

Interrupt Mask & Status

• The PIOC_IMR (Interrupt Mask Register) check boxes indicate the interrupts enabled for each corresponding pin. Changing these check boxes writes to the PIOC_IER or PIOC_IDR peripheral registers.
• The PIOC_ISR (Interrupt Status Register) check boxes allow you to view the interrupt status registers for the PIOC pins.

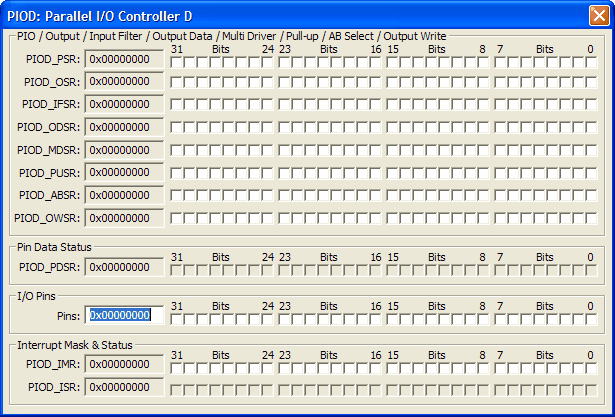

Parallel I/O Controller D Dialog

The PIO D Dialog box allows you to configure the parallel I/O port using checkboxes. Controls in this dialog are presented in groups which are described below.

PIO/Output/Input Filter/Output Data/Multi Driver/Pull-up/AB Select/Output Write

• The PIOD_PSR (PIO Status Register) check boxes indicate which pins are controlled by the associated peripheral (0-unchecked) and which pins are controlled by the PIO (1-checked). Changing the values of these check boxes changed the values of the PIOD_PER and PIOD_PDR peripheral registers.
• The PIOD_OSR (Output Status Register) check boxes indicate the output status (0-unchecked for input, 1-checked for output) of the corresponding pin. Changing these check boxes writes to the PIOD_OER or PIOD_ODR peripheral registers.
• The PIOD_IFSR (Input Filter Status Register) check boxes indicate that glitch filtering is enabled (1-checked) for the corresponding pin. Changing these check boxes writes to the PIOD_IFER or PIOD_IFDR peripheral registers.
• The PIOD_ODSR (Output Data Status Register) check boxes indicate the output value for each port pin. Changing these check boxes writes to the PIOD_SODR or PIOD_CODR peripheral registers.
• The PIOD_MDSR (Multidriver Status Register) check boxes indicate whether each port pin is open drain (1-checked) or not (0-unchecked). Changing these check boxes writes to the PIOD_MDER or PIOD_MDDR peripheral registers.
• The PIOD_PUSR (Pull-up Status Register) enables or disables an embedded 100k ohm pull-up resistor for each bit.
• The PIOD_ABSR (AB Select Status Register) determines whether the I/O pins are controlled by the PIO controller or the the corresponding on-chip peripheral.
• The PIOD_OWSR (Output Write Status Register) displays the output data mask bits set by writing to PIOD_OWER, or reset by writing to PIOD_OWDR.

Pin Data Status

• The PIOD_PDSR (Pin Data Status Register) check boxes indicate the pin data status of the pins on the simulated MCU.

I/O Pins

• The Pins check boxes indicate the states of the pins on the simulated MCU. When used as outputs, these have the same value as the PIOD_ODSR check boxes. When used as inputs you may set the level of the input pin to high (1) or low (0).

Interrupt Mask & Status

• The PIOD_IMR (Interrupt Mask Register) check boxes indicate the interrupts enabled for each corresponding pin. Changing these check boxes writes to the PIOD_IER or PIOD_IDR peripheral registers.
• The PIOD_ISR (Interrupt Status Register) check boxes allow you to view the interrupt status registers for the PIOD pins.

Parallel I/O E Dialog

The PIO E Dialog box allows you to configure the parallel I/O port using checkboxes. Controls in this dialog are presented in groups which are described below.

PIO/Output/Input Filter/Output Data/Multi Driver/Pull-up/AB Select/Output Write

• The PIOE_PSR (PIO Status Register) check boxes indicate which pins are controlled by the associated peripheral (0-unchecked) and which pins are controlled by the PIO (1-checked). Changing the values of these check boxes changed the values of the PIOE_PER and PIOE_PDR peripheral registers.
• The PIOE_OSR (Output Status Register) check boxes indicate the output status (0-unchecked for input, 1-checked for output) of the corresponding pin. Changing these check boxes writes to the PIOE_OER or PIOE_ODR peripheral registers.
• The PIOE_IFSR (Input Filter Status Register) check boxes indicate that glitch filtering is enabled (1-checked) for the corresponding pin. Changing these check boxes writes to the PIOE_IFER or PIOE_IFDR peripheral registers.
• The PIOE_ODSR (Output Data Status Register) check boxes indicate the output value for each port pin. Changing these check boxes writes to the PIOE_SODR or PIOE_CODR peripheral registers.
• The PIOE_MDSR (Multidriver Status Register) check boxes indicate whether each port pin is open drain (1-checked) or not (0-unchecked). Changing these check boxes writes to the PIOE_MDER or PIOE_MDDR peripheral registers.
• The PIOE_PUSR (Pull-up Status Register) enables or disables an embedded 100k ohm pull-up resistor for each bit.
• The PIOE_ABSR (AB Select Status Register) determines whether the I/O pins are controlled by the PIO controller or the the corresponding on-chip peripheral.
• The PIOE_OWSR (Output Write Status Register) displays the output data mask bits set by writing to PIOE_OWER, or reset by writing to PIOE_OWDR.

Pin Data Status

• The PIOE_PDSR (Pin Data Status Register) check boxes indicate the pin data status of the pins on the simulated MCU.

I/O Pins

• The Pins check boxes indicate the states of the pins on the simulated MCU. When used as outputs, these have the same value as the PIOE_ODSR check boxes. When used as inputs you may set the level of the input pin to high (1) or low (0).

Interrupt Mask & Status

• The PIOE_IMR (Interrupt Mask Register) check boxes indicate the interrupts enabled for each corresponding pin. Changing these check boxes writes to the PIOE_IER or PIOE_IDR peripheral registers.
• The PIOE_ISR (Interrupt Status Register) check boxes allow you to view the interrupt status registers for the PIOE pins.

PORTx VTREG
Data Type: unsigned long

The PORTx VTREGs represent the I/O pins of the simulated MCU for Port A, Port B, and so on. PORTA represents Port A, PORTB represents Port B, etc. You may read PORTx to determine the state of the output pins of that port. For example, in the command window you may type,

PORTA

to obtain value corresponding to the set pins of Port A. You may also change the input values of port pins by changing the value of the VTREG. For example,

PORTA=0x000000F0

sets the upper four port pins of Port A to a value of 1 and all other port pins to a value of 0. You may use the bitwise operators AND(&), OR(|) and XOR(^) to change individual bits of the PORTx VTREGs. For example:

PORTA |=  0x00000001;  /* Set PA0 Pin */
PORTB &= ~0x00000200;  /* Clr PB9 Pin */
PORTA ^=  0x00800000;  /* Toggle PA23 Pin */
