Peripheral Simulation

For STMicroelectronics STR910FAW32 — Power, System and Clock Control Unit (PRCCU)

Simulation support for this peripheral or feature is comprised of:

• Dialog boxes which display and allow you to change peripheral configuration.
• VTREGs (Virtual Target Registers) which support I/O with the peripheral.

These simulation capabilities are described below.

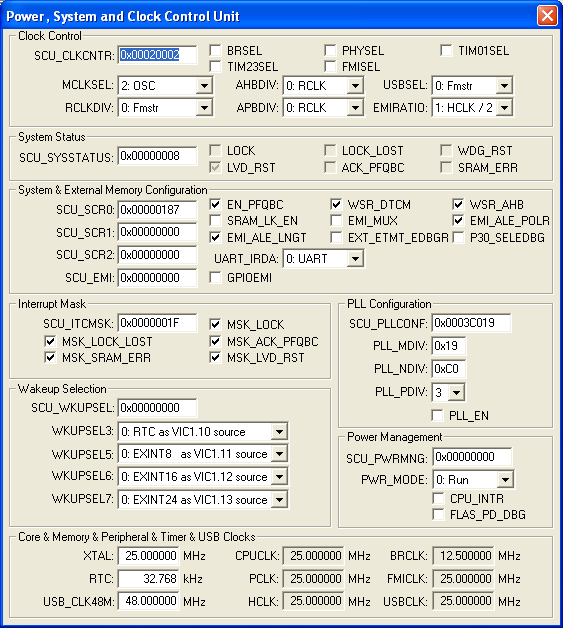

Power, System and Control Clock Unit Dialog

HDLC Clock Input VTREG
Data Type: unsigned long

Oscillator Frequency VTREG
Data Type: unsigned long

Peripheral Clock Input VTREG
Data Type: unsigned long

Real Time Clock Input VTREG
Data Type: unsigned long

System Clock VTREG
Data Type: unsigned long

VDD Voltage VTREG
Data Type: float
