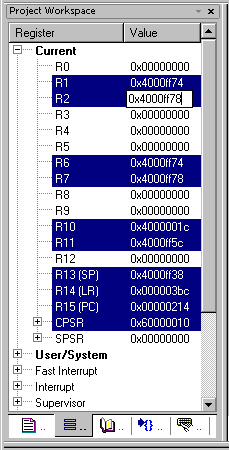

The CPU registers are displayed and Project Workspace — Regs page. To modify a register value, select the value with a mouse click and wait a second. Another mouse click or the F2 key starts the edit mode.
