The new Network Component supports IPv4 and IPv6, whereas previous versions of the Middleware provided support only for IPv4. Based on this difference, the API has changed which will require either to use a compatibility mode to be able to use the new Network Core together with the old API or a manual change of the user code to reflect the API changes.

The following sections show how to migrate projects from previous versions of the Middleware:

Project Migration describes how to migrate an MDK Version 5 project from the previous Middleware (v5.x and v6.x) to the latest version.
Porting Library Functionality demonstrates how to port functionality based on the internal library functions to the new API.
Component Migration explains the required code changes for every single software component.

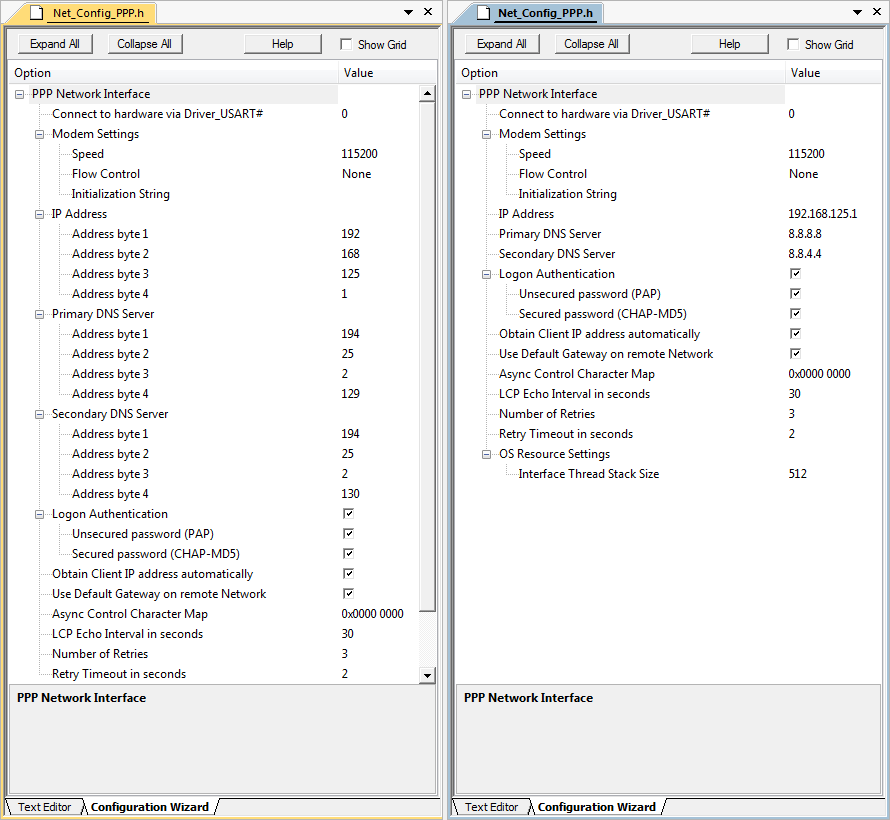

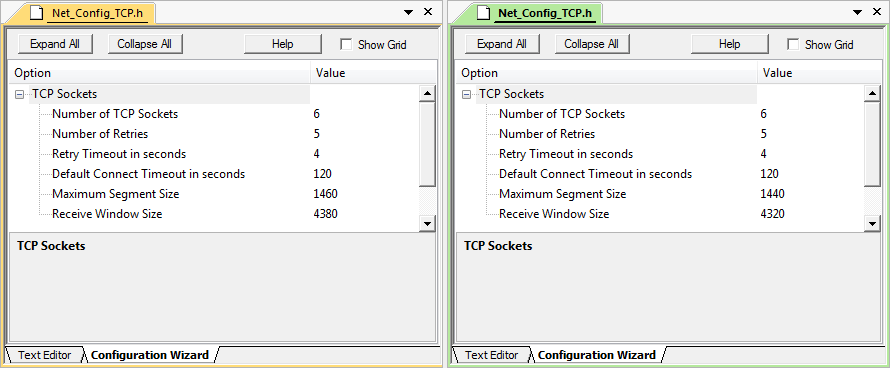

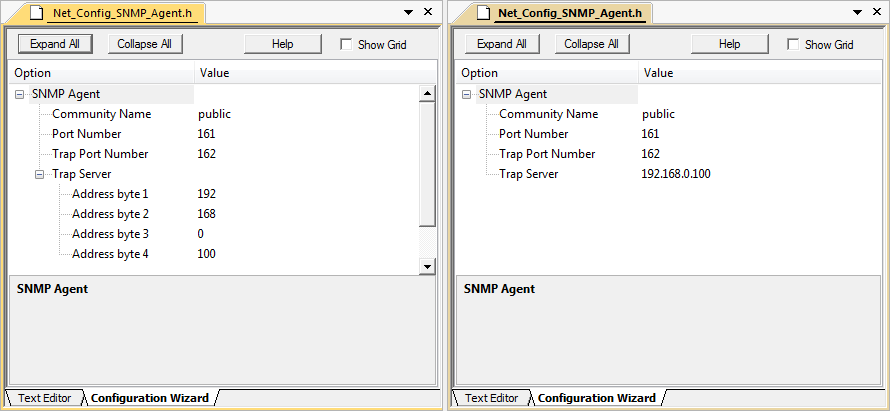

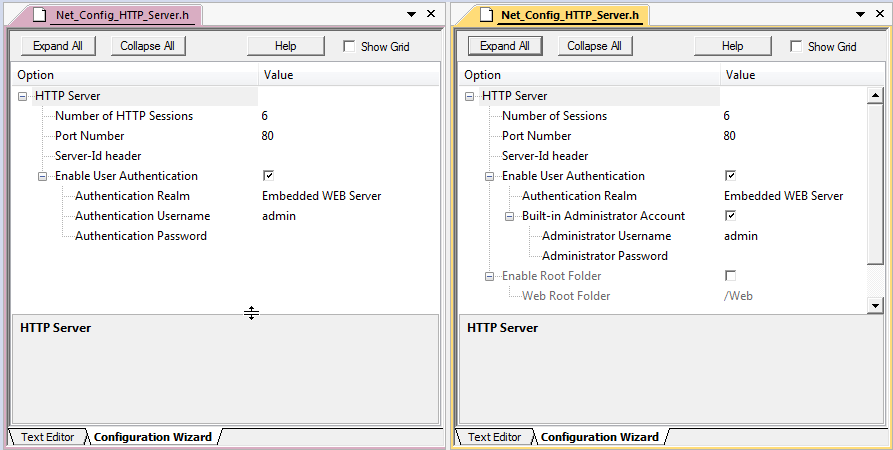

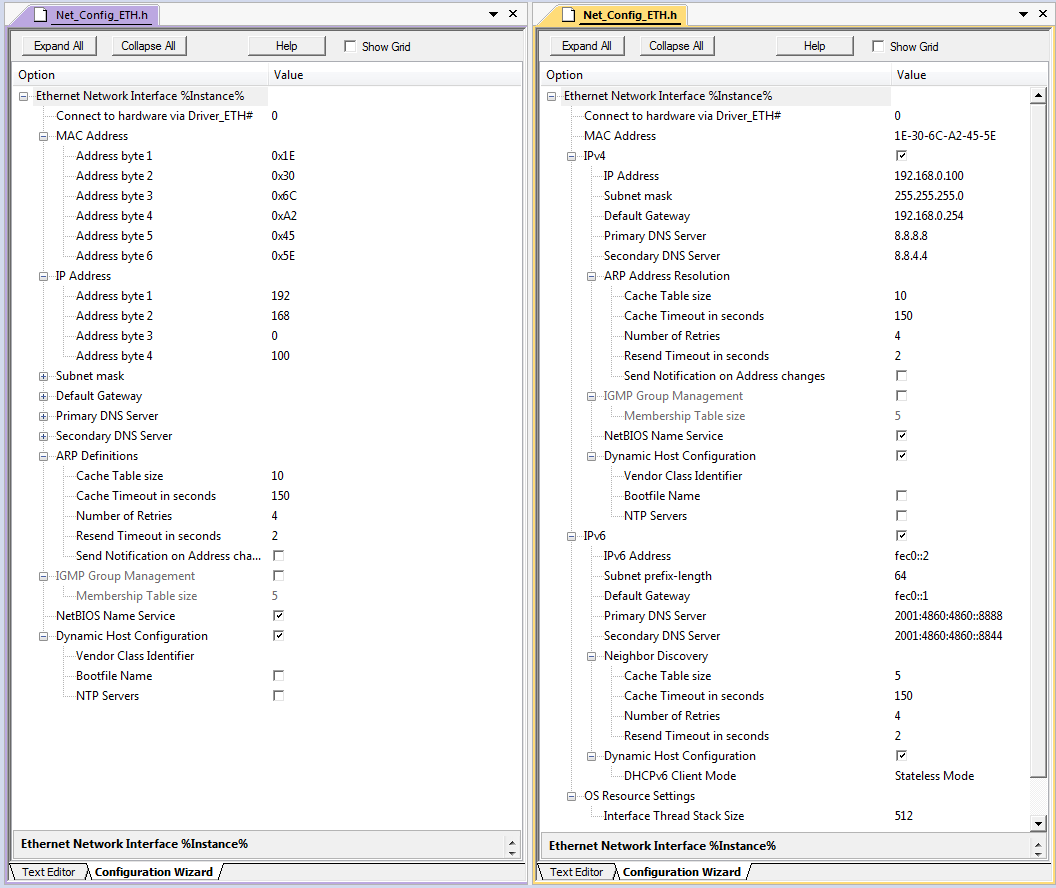

Network Configuration describes the differences in the configuration files of the Network Component.

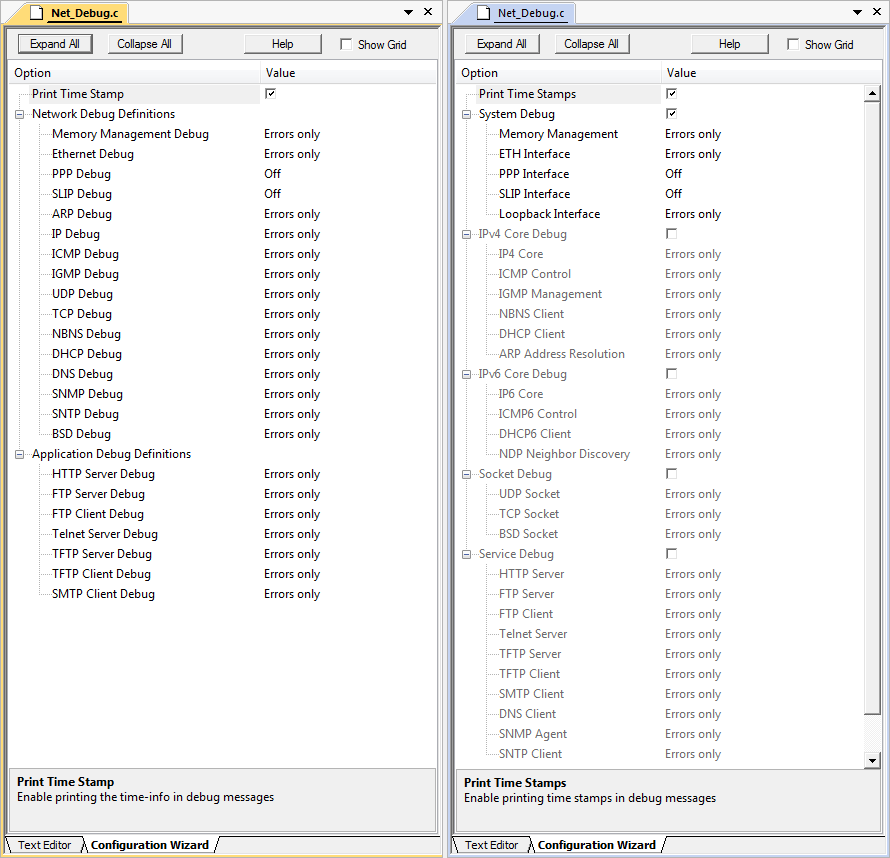

STDIO Debug explains how to use the legacy debug features.

Project Migration

There is an easy migration path available for users of the Network Component v5 and v6. Simply open the project that is about to be migrated in µVision. The IDE will show an error message that a software component is not available:

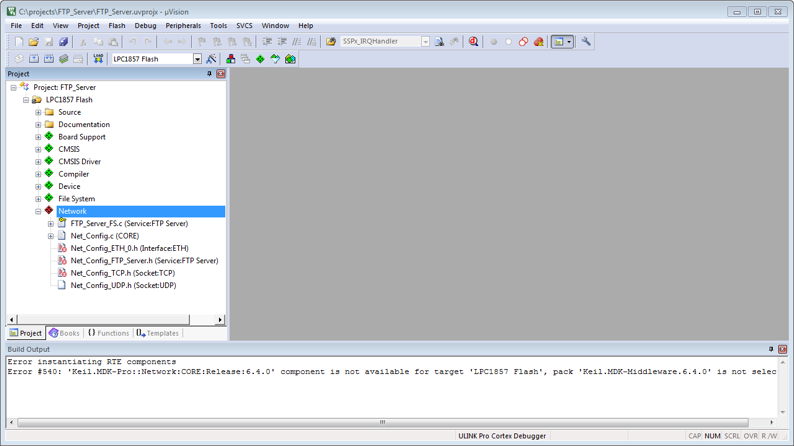

Error message opening a legacy project

This message is shown because the previous variants Debug/Release have been changed to IPv4/IPv6 Debug and IPv4/IPv6 Release. Open the Manage Run-Time Environment window. It will show the same error message in a different way:

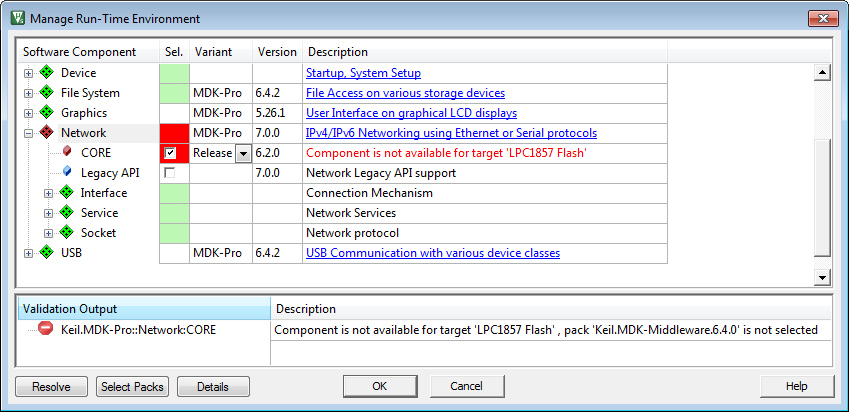

Error message in the Run-Time Environment

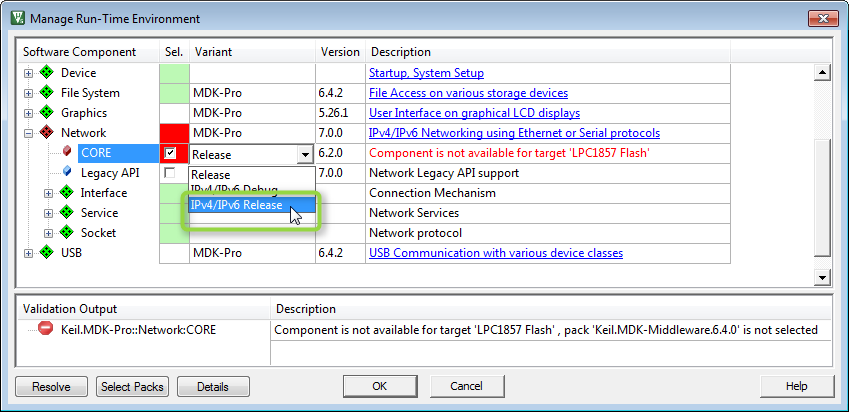

Select a New Core Variant

Select the variant IPv4/IPv6 Release to get rid of this validation message:

Manually resolve the error message

Using the Compatibility Mode

The Network Component v7 contains a compatibility mode that enables you to use the old API with the new Network Core. This gives you the benefit to use the latest Network library (with all updates and bug fixes) and the new API, while it is not necessary to change all the legacy code right now. You can mix the old and the new APi on component level, for example using the new API for TCP sockets while using the old API for the Ethernet interface.

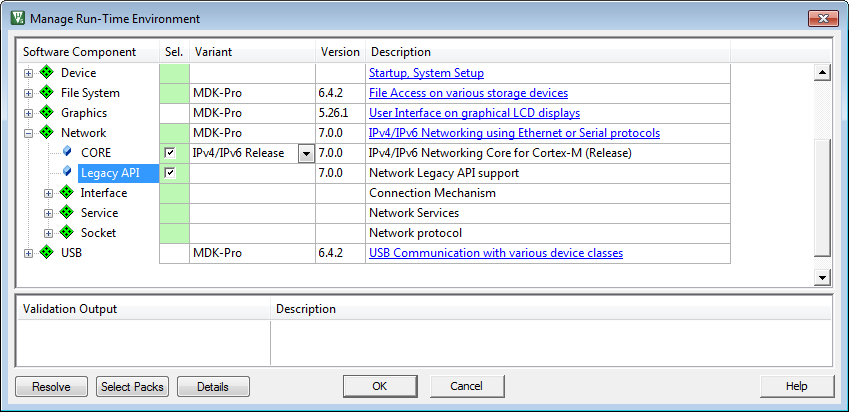

Check the box to use the Legacy API:

Enable to use the Legacy API

A few legacy API functions cannot be used with the compatibility mode:

The function telnet_server_message_poll will create errors during compile
The SNMP Agent will compile but fail at runtime because the MIB table is not registered properly

These example projects will not build:

Note: The section Porting Library Functionality explains the details on how to work-around these problems.

Update Configuration Files

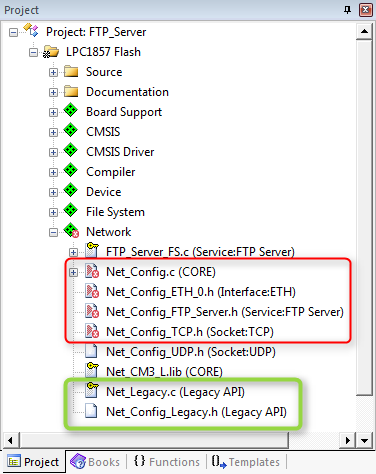

After pressing OK, the Project window will look like this:

Updated Project window

Two files (for supporting the legacy API) have been added: Net_Legacy.c and Net_Config_Legacy.h. Files with a red icon require your attention because they are incompatible with this version of the Network Component. You need to update them in order to use the new component. Refer to for details.

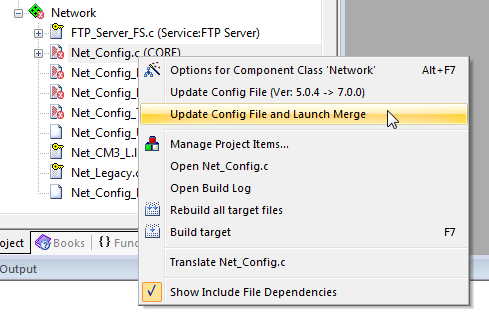

Right-clicking each file will give you the update options:

Update options for configuration files

Update Config File will simply copy the new configuration file into your project containing the default settings. The old file with your project's settings will be renamed to Net_Config.c.0000 for example. If you want to manually merge the two files, you can open this backup file (located in the folder RTE\Network) and compare it with the new file line by line.

A better way is to use the option Update Config File and Launch Merge. This option is available for µVision users with version 5.15 and above. Refer to the µVision help for details.

Not all configuration files require a merge, as many of them are compatible. The section Network Configuration describes the differences in more detail.

Configure Keil RTX

If you use RTX v5, you do not need to change the RTX settings, because all resources are statically allocated.

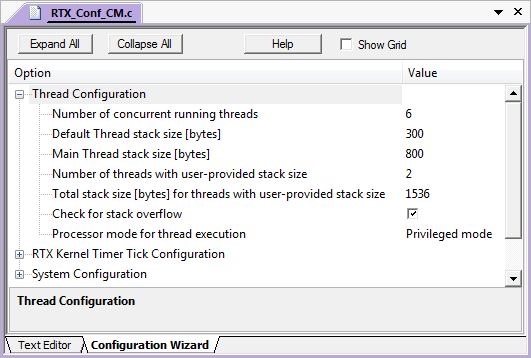

If you use RTX v4, you must change the following settings in file:

RTX v4 configuration in RTX_Conf_CM.c

Increase the Number of concurrent running threads by 2
Increase the Number of threads with user-provided stack size by 2
Increase Total stack size [bytes] for threads with user-provided stack size by 1536 bytes
Enable User Timers

Note: Refer to the section Resource Requirements for more information.

Build and Run the Network Project

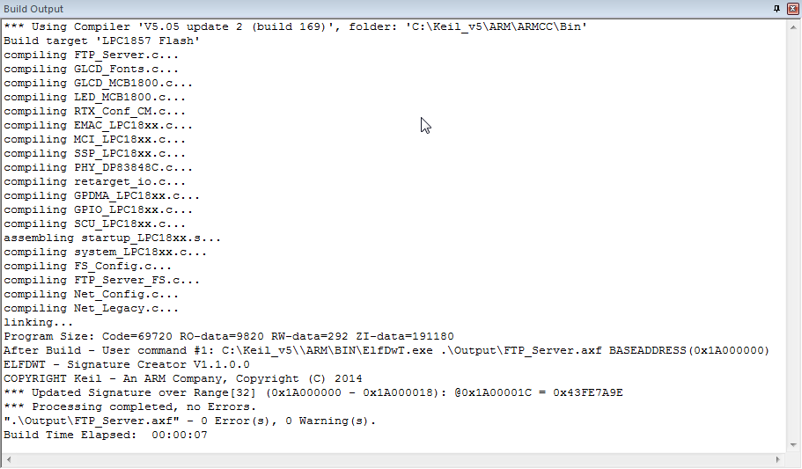

Finally, after merging the configuration files, you should be able to compile the project and run it on your target hardware:

Error-free build output

Note: If you see errors/warnings in the Build Output window, check the section Porting Library Functionality for details on how to migrate functions that are not covered by the compatibility layer.

Porting Library Functionality

Runtime Configuration Migration

In previous versions of the Network Component (v5 and v6) and in the old RL-ARM networking stack it was possible to get direct access to a structure called LOCALM. This was used to change the configuration of the network interface at runtime. This is deprecated and the following two control functions have been introduced for runtime configuration. Use:

netIF_GetOption to get the current value of an interface option and
netIF_SetOption to set values of an interface option.

For more information on the usage of the two functions refer to Runtime Configuration. The following shows how to migrate code using LOCALM to the new Network Component API.

LOCALM

In previous versions, the
LOCALM structure defined network parameters for all available interfaces (Ethernet, PPP or SLIP). It was defined as follows:

// Local Machine info
typedef struct localm {
  uint8_t IpAddr [IP4_ADDR_LEN];  // Local IP Address
  uint8_t DefGW  [IP4_ADDR_LEN];  // Default GateWay
  uint8_t NetMask[IP4_ADDR_LEN];  // Net Mask
  uint8_t PriDNS [IP4_ADDR_LEN];  // Primary DNS Server
  uint8_t SecDNS [IP4_ADDR_LEN];  // Secondary DNS Server
} LOCALM;

Access to the structure was directly available using:

localm[NETIF_ETH]  // parameters for Ethernet interface
localm[NETIF_PPP]  // parameters for PPP interface
localm[NETIF_SLIP] // parameters for SLIP interface

Code Examples

Previous Versions

extern LOCALM localm[];
uint8_t ip_addr[IP4_ADDR_LEN];

// Read IP address
memcpy (ip_addr, localm[NETIF_ETH].IpAddr, IP4_ADDR_LEN);

// Write IP address
memcpy (localm[NETIF_ETH].IpAddr, ip_addr, IP4_ADDR_LEN);

Network Component v7

uint8_t ip_addr[NET_ADDR_IP4_LEN];

// Read IP address
netIF_GetOption (NET_IF_CLASS_ETH | 0, netIF_OptionIP4_Address, ip_addr, NET_ADDR_IP4_LEN);

// Write IP address
netIF_SetOption (NET_IF_CLASS_ETH | 0, netIF_OptionIP4_Address, ip_addr, NET_ADDR_IP4_LEN);

TCP Socket Access Migration

The example projects for HTTP and Telnet Server previously accessed the TCP socket control block directly (using tcp_config and TCP_INFO). This is deprecated in Network Component v7. New API functions have been introduced for that purpose:

netTCP_GetState - reads active socket state
netTCP_GetLocalPort - reads a local communication port
netTCP_GetPeer - reads peer information (IP address and port number)
netTCP_GetTimer - reads socket timeout timer

Code Examples

The current state of a particular TCP socket can be determined using the function netTCP_GetState. If the function returns netTCP_StateINVALID, the socket is not available (not in the range of sockets specified in Net_Config_TCP.h). For example, this can be used to determine the maximum number of available TCP sockets:

Previous Versions

#define tcp_NumSocks tcp_config.NumSocks;
:
do {
  // Process socket information
} while (++socket < tcpNumSocks)

Network Component v7

do {
  // Process socket information
} while (netTCP_GetState (++socket) != netTCP_StateINVALID);

HTTP/Telnet Server Migration

The example projects for HTTP and Telnet Server previously used internal functionality to access the server authentication and the user password (using http_config, and tnet_config). This is deprecated in Network Component v7. Use the following new API functions instead:

netHTTPs_LoginActive - determines if the HTTP server authentication is enabled
netHTTPs_SetPassword - sets the password of the built-in user account
netTELNETs_LoginActive - determines if the Telnet server authentication is enabled
netTELNETs_SetPassword - sets the password of the built-in user account

Code Examples

Previous Versions

#define http_EnAuth http_config.EnAuth;
:
if (http_EnAuth != 0) {
  strcpy (http_auth_passw, passw);
}

Network Component v7

if (netHTTPs_LoginActive () == true) {
  netHTTPs_SetPassword (passw);
}

Component Migration

This section shows how to migrate each software component of the Network separately. Using the Compatibility Mode, it is possible to mix old (v5/v6) and new API calls in the same project. This enables the user to change to the new API on a component level which reduces risk and required time for the migration.

In general, all function names are changed according to a new naming convention. Most functions are compatible, with the exception of a few, where parameters are changed and optimized. Parameters providing an IP address and a port are replaced with a single structure NET_ADDR that contains both, the IP address and port number.

Usually, functions are now RTOS thread-safe and can be called from different threads.

For a function-by-function comparison visit the appropriate reference sections:

Network Core Functions

The Network v7 Core runs in event-driven mode in a separate thread (netCore_Thread, thread-safe) which is created by the netInitialize function. Core processing is triggered using a timer tick every 100ms, or when a packet is received. Otherwise, netCore_Thread is idle. The function net_main is removed.

The following API functions are added:

Code Examples

Previous Versions

int main (void) {
  net_initialize();

  while(1) {
    net_main ();
  }
}

Network Component v7

int main (void) {
  netInitialize();

  while(1) {
    // do anything
  }
}

HTTP Server

Previous versions started the HTTP server automatically in net_initialize. Now it is required to start the HTTP server either using:

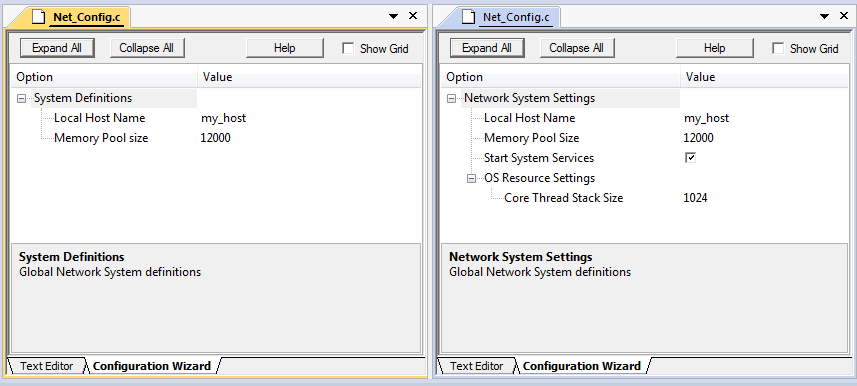

A configuration setting to start system services in Net_Config.c:
#define NET_START_SERVICE 1

or
Manual service start in the application code:
netHTTPs_Start ();

interface functions are renamed and compatible:

Old API	v7 API
`http_server_fopen`	netHTTPs_fopen
`http_server_fclose`	netHTTPs_fclose
`http_server_fread`	netHTTPs_fread
`http_server_fgets`	netHTTPs_fgets
`http_server_ftime`	netHTTPs_fstat

Note: netHTTPs_fstat is incompatible with the previous version. It is changed to provide the file size and file time.

The following API functions are added:

netHTTPs_Start enables the HTTP server at runtime
netHTTPs_Stop disables HTTP server at runtime
netHTTPs_Running checks whether the HTTP server is running
netHTTPs_GetPort returns the port of the HTTP server
netHTTPs_SetPort sets the port of the HTTP server
netHTTPs_GetRootPath returns the path to the root folder of the HTTP server
netHTTPs_SetRootPath sets the path to the root folder of the HTTP server
netHTTPs_GetUsername returns the user name of the built-in user
netHTTPs_SetUsername sets the user name of the built-in user
netHTTPs_GetPassword returns the password of the built-in user
netHTTPs_SetPassword sets the password of the built-in user
netHTTPs_LoginActive checks if the HTTP server is set up for user authentication
netHTTPs_LoginOnOff toggles the user authentication on the HTTP server
netCGI_Redirect redirects URL addresses of a missing resource to a new location

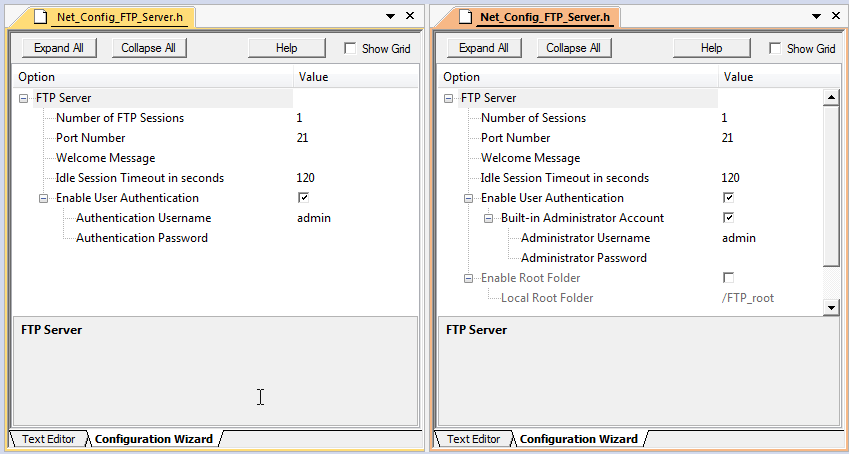

FTP Server

Previous versions started the FTP server automatically in net_initialize. Now it is required to start the FTP server either using:

A configuration setting to start system services in Net_Config.c:
#define NET_START_SERVICE 1

or
Manual service start in the application code:
netFTPs_Start ();

The interface functions are renamed and compatible:

Old API	v7 API
`ftp_server_fopen`	netFTPs_fopen
`ftp_server_fclose`	netFTPs_fclose
`ftp_server_fread`	netFTPs_fread
`ftp_server_fwrite`	netFTPs_fwrite
`ftp_server_fdelete`	netFTPs_fdelete
`ftp_server_frename`	netFTPs_frename
`ftp_server_mkdir`	netFTPs_mkdir
`ftp_server_rmdir`	netFTPs_rmdir
`ftp_server_ffind`	netFTPs_ffind

Note: netFTPs_ffind is incompatible with the previous version. It is changed to provide the file name, file size and file time.

The following API functions are added:

netFTPs_Start enables the FTP server at runtime
netFTPs_Stop disables FTP server at runtime
netFTPs_Running checks whether the FTP server is running
netFTPs_GetPort returns the port of the FTP server
netFTPs_SetPort sets the port of the FTP server
netFTPs_GetRootPath returns the path to the root folder of the FTP server
netFTPs_SetRootPath sets the path to the root folder of the FTP server
netFTPs_GetUsername returns the user name of the built-in user
netFTPs_SetUsername sets the user name of the built-in user
netFTPs_GetPassword returns the password of the built-in user
netFTPs_SetPassword sets the password of the built-in user
netFTPs_LoginActive checks if the FTP server is set up for user authentication
netFTPs_LoginOnOff toggles the user authentication on the FTP server

FTP Client

The interface functions are renamed and compatible:

Old API	v7 API
`ftp_client_fopen`	netFTPc_fopen
`ftp_client_fclose`	netFTPc_fclose
`ftp_client_fread`	netFTPc_fread
`ftp_client_fwrite`	netFTPc_fwrite

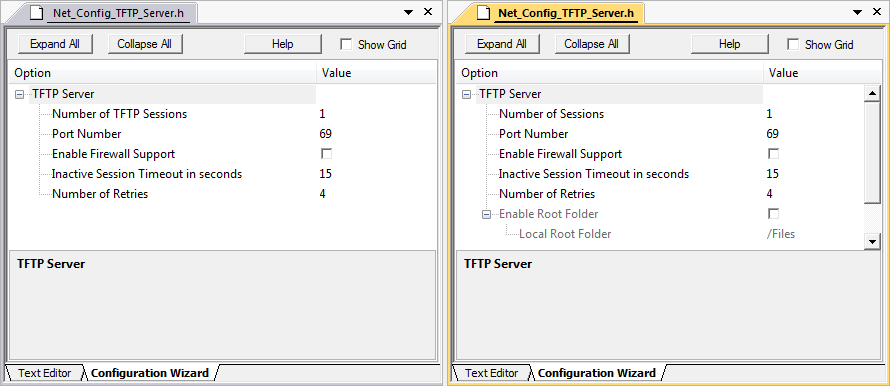

TFTP Server

Previous versions started the TFTP server automatically in net_initialize. Now it is required to start the TFTP server either using:

A configuration setting to start system services in Net_Config.c:
#define NET_START_SERVICE 1

or
Manual service start in the application code:
netTFTPs_Start ();

The interface functions are renamed and compatible:

Old API	v7 API
`tftp_server_fopen`	netTFTPs_fopen
`tftp_server_fclose`	netTFTPs_fclose
`tftp_server_fread`	netTFTPs_fread
`tftp_server_fwrite`	netTFTPs_fwrite

The following API functions are added:

netTFTPs_Start enables the TFTP server at runtime
netTFTPs_Stop disables TFTP server at runtime
netTFTPs_Running checks whether the TFTP server is running
netTFTPs_GetPort returns the port of the TFTP server
netTFTPs_SetPort sets the port of the TFTP server
netTFTPs_GetRootPath returns the path to the root folder of the TFTP server
netTFTPs_SetRootPath sets the path to the root folder of the TFTP server

TFTP Client

The interface functions are renamed and compatible:

Old API	v7 API
`tftp_client_fopen`	netTFTPc_fopen
`tftp_client_fclose`	netTFTPc_fclose
`tftp_client_fread`	netTFTPc_fread
`tftp_client_fwrite`	netTFTPc_fwrite

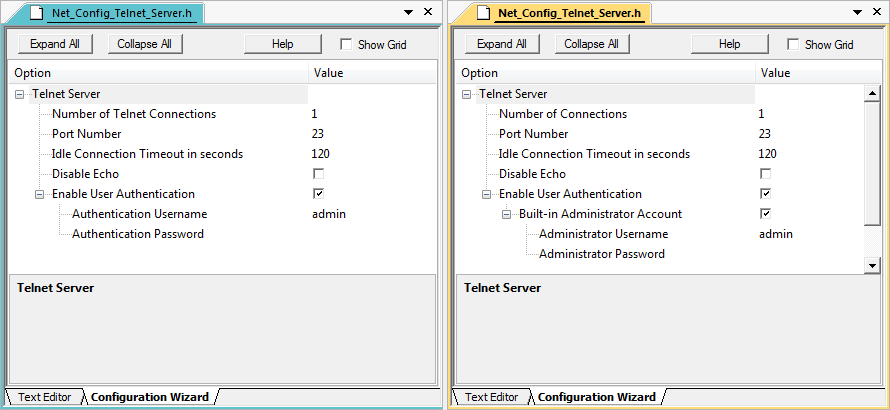

Telnet Server

Previous versions started the Telnet server automatically in net_initialize. Now it is required to start the Telnet server either using:

A configuration setting to start system services in Net_Config.c:
#define NET_START_SERVICE 1

or
Manual service start in the application code:
netTELNETs_Start ();

The following API functions are added:

netTELNETs_Start enables the TELNET server at runtime
netTELNETs_Stop disables TELNET server at runtime
netTELNETs_Running checks whether the TELNET server is running
netTELNETs_GetPort returns the port of the TELNET server
netTELNETs_SetPort sets the port of the TELNET server
netTELNETs_GetUsername returns the user name of the built-in user
netTELNETs_SetUsername sets the user name of the built-in user
netTELNETs_GetPassword returns the password of the built-in user
netTELNETs_SetPassword sets the password of the built-in user
netTELNETs_LoginActive checks if the TELNET server is set up for user authentication
netTELNETs_LoginOnOff toggles the user authentication on the TELNET server
netTELNETs_RequestMessage passes unsolicited messages to the Telnet server

SNMP Agent

SNMP-MIB definitions are renamed and are compatible:

Old API	v7 API
`MIB_INTEGER`	NET_SNMP_MIB_INTEGER
`MIB_OCTET_STR`	NET_SNMP_MIB_OCTET_STR
`MIB_OBJECT_ID`	NET_SNMP_MIB_OBJECT_ID
`MIB_IP_ADDR`	NET_SNMP_MIB_IP_ADDR
`MIB_COUNTER`	NET_SNMP_MIB_COUNTER
`MIB_GAUGE`	NET_SNMP_MIB_GAUGE
`MIB_TIME_TICKS`	NET_SNMP_MIB_TIME_TICKS
`MIB_ATR_RO`	NET_SNMP_MIB_ATR_RO
`MIB_OID_SIZE`	NET_SNMP_MIB_OID_SIZE
`MIB_STR_SIZE`	NET_SNMP_MIB_STR_SIZE
`MIB_READ`	NET_SNMP_MIB_READ
`MIB_WRITE`	NET_SNMP_MIB_WRITE

SNMP-MIB macros are renamed and are compatible:

Old API	v7 API
`MIB_STR`(s)	NET_SNMP_MIB_STR(s)
`MIB_INT`(o)	NET_SNMP_MIB_INT(o)
`MIB_IP`(ip)	NET_SNMP_MIB_IP(ip)
`MIB_OID0`(f,s)	NET_SNMP_MIB_OID0(f,s)
`SNMP_MIB_SIZE`(mib)	removed

MIB-Entry information typedef SNMP_MIB is renamed to NET_SNMP_MIB_INFO.

The registering of the MIB data table has changed in the SNMP agent:

Previous versions used variable names: snmp_mib and snmp_mib_size,
Network Component v7 uses netSNMP_SetMIB_Table function to register the MIB data table.

The following API functions are added:

netSNMP_SetMIB_Table registers SNMP-MIB table in SNMP Agent

SNTP Client

The following API functions are added:

netSNTPc_SetMode changes the operation mode of the SNTP client (to unicast/broadcast mode)

BSD Sockets

The BSD socket API is not changed and is fully backward compatible. It has been extended to support IPv6 addresses without breaking the existing API.

TCP Sockets

The socket types TCP_TYPE_SERVER and TCP_TYPE_CLIENT are removed from socket attributes. A socket type is now implicitly defined when the socket is opened for use:

netTCP_Listen creates a socket SERVER mode
netTCP_Connect creates socket CLIENT mode

The following API functions are added:

netTCP_SetOption sets different options for a TCP socket
netTCP_GetPeer provides the IP address and port of a remote client that is connected
netTCP_GetLocalPort returns the port number of a socket
netTCP_GetTimer returns the timer value of a time out or the current keep alive value

UDP Sockets

The following API functions are deprecated:

udp_multicast_ttl - use the netUDP_SetOption function to change TTL.

The following API functions are added:

netUDP_SetOption sets different options for a UDP socket
netUDP_GetLocalPort returns the port number of a socket

Network Interface Functions

The following API functions are added:

netARP_Probe determines whether the requested IPv4 address is already used in local area network
netNDP_CacheIP determines whether the NDP table has already an entry for a certain IPv6 address
netNDP_GetIP determines the resolved IPv6 address for a specific MAC address
netNDP_GetMAC determines the resolved MAC address for a specific IPv6 address
netNDP_Probe determines whether the requested IPv6 address is already used in local area network
netDHCP_Enable starts the DHCP service at runtime
netIF_GetOption retrieves the current value of a requested option for an interface
netIF_SetOption sets different options for an interface

Network Address Conversion Functions

The network address conversion functions are similar, but not compatible. The functions in the new API need to provide an output buffer for the conversion to an ASCII string. The functions are RTOS thread-safe and can be called from different threads.

Network Configuration

Some network configuration files have changed in the Network Component v7. In general, IP address configuration has changed. The address string has replaced individual address byte configuration. Further details for every configuration file are explained below.

The following files maintain full compatibility from v5/v6 to v7:

Net_Config_BSD.h
Net_Config_DNS_Client.h
Net_Config_FTP_Client.h
Net_Config_SMTP_Client.h
Net_Config_TFTP_Client.h
Net_Config_UDP.h

Note: The following screenshots always show the previous settings on the left hand side, whereas the new settings are shown on the right hand side.

Net_Config.c

Old Net_Config.c vs. new Net_Config.c

NET_MEM_SIZE presentation changed from words to bytes
NET_START_SERVICE setting added for compatibility with Network version 5
NET_THREAD_STACK_SIZE and NET_THREAD_PRIORITY settings added

Enumerator ERROR_CODE changed to incompatible NET_ERROR:

Old Enumerator	New Enumerator
ERR_MEM_ALLOC	NET_ERROR_MEM_ALLOC
ERR_MEM_FREE	NET_ERROR_MEM_FREE
ERR_MEM_CORRUPT	NET_ERROR_MEM_CORRUPT
ERR_MEM_LOCK	NET_ERROR_CONFIG (replaced with configuration error)
ERR_UDP_ALLOC	NET_ERROR_UDP_ALLOC
ERR_TCP_ALLOC	NET_ERROR_TCP_ALLOC
ERR_TCP_STATE	NET_ERROR_TCP_STATE

Net_Config_ETH.h

Old Net_Config_ETH.h vs. new Net_Config_ETH.h

MAC Address changed to string MAC presentation
Network version 5 settings moved to IPv4 section
IP Address, Subnet mask, Default Gateway etc. presentation changed to string
Added OS Resource Settings with settings for ETH interface thread creation (ETH_THREAD_STACK_SIZE and ETH_THREAD_PRIORITY)

Net_Config_FTP_Server.h

Old Net_Config_FTP_Server.h vs. new Net_Config_FTP_Server.h

Added built-in administrator account enable (FTP_SERVER_AUTH_ADMIN added)
Added Local Root Folder setting (FTP_SERVER_ROOT_ENABLE and FTP_SERVER_ROOT_FOLDER)

Net_Config_HTTP_Server.h

Old Net_Config_HTTP_Server.h vs. new Net_Config_HTTP_Server.h

Added built-in administrator account enable (HTTP_SERVER_AUTH_ADMIN added)
Added Local Root Folder setting (HTTP_SERVER_ROOT_ENABLE and HTTP_SERVER_ROOT_FOLDER)

Net_Config_PPP.h

Old Net_Config_PPP.h vs. new Net_Config_PPP.h

IP Address, Subnet mask, Default Gateway etc. presentation changed to string
Added OS Resource Settings with settings for PPP interface thread creation (PPP_THREAD_STACK_SIZE and PPP_THREAD_PRIORITY)

Net_Config_SLIP.h

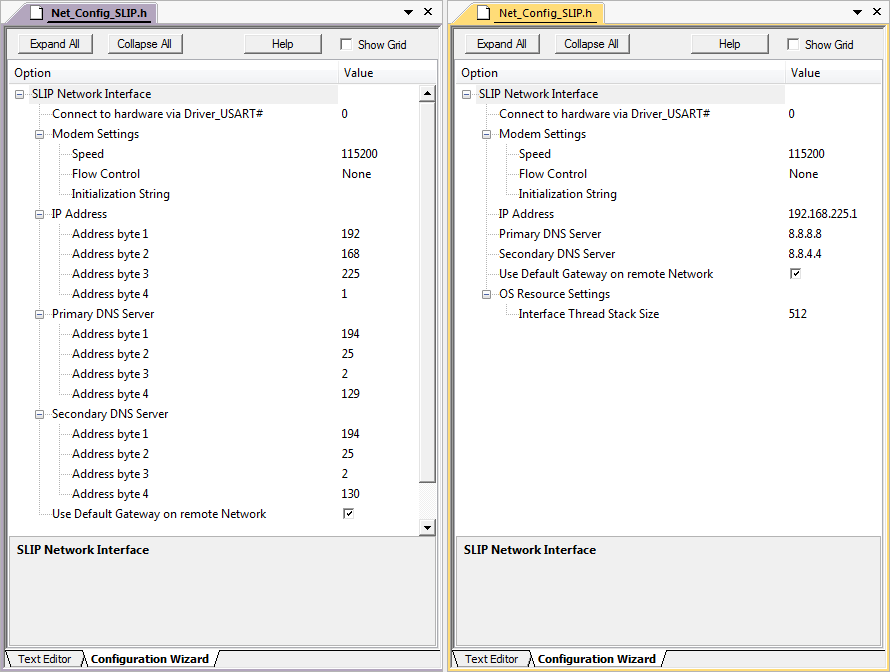

Old Net_Config_SLIP.h vs. new Net_Config_SLIP.h

IP Address, Subnet mask, Default Gateway etc. presentation changed to string
Added OS Resource Settings with settings for SLIP interface thread creation (SLIP_THREAD_STACK_SIZE and SLIP_THREAD_PRIORITY)

Net_Config_SNMP_Agent.h

Old Net_Config_SNMP_Agent.h vs. new Net_Config_SNMP_Agent.h

Trap Server Address presentation changed to string

Net_Config_SNTP_Client.h

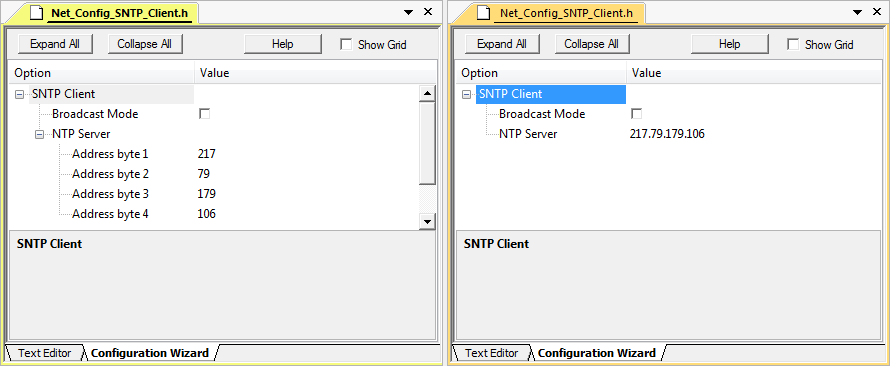

Old Net_Config_SNTP_Client.h vs. new Net_Config_SNTP_Client.h

NTP Server Address presentation changed to string

Net_Config_TCP.h

In principle, the configuration files are compatible, but the following default settings have changed:

Receive Window Size changed from 4380 to 4320 octets
Maximum Segment Size changed from 1460 to 1440 octets

Old Net_Config_TCP.h vs. new Net_Config_TCP.h

Net_Config_Telnet_Server.h

Old Net_Config_Telnet_Server.h vs. new Net_Config_Telnet_Server.h

Added built-in administrator account enable (TELNET_SERVER_AUTH_ADMIN added)

Net_Config_TFTP_Server.h

Old Net_Config_TFTP_Server.h vs. new Net_Config_TFTP_Server.h

Added Local Root Folder setting (TFTP_SERVER_ROOT_ENABLE and TFTP_SERVER_ROOT_FOLDER)

Net_Debug.c

Old Net_Debug.c vs. new Net_Debug.c

Added IPv6 protocols for debugging
Debug configuration settings reorganized to:
- System Debug
- IPv4 Core Debug
- IPv6 Core Debug
- Socket Debug
- Service Debug

STDIO Debug

STDIO Debug is a legacy debug variant that prints event information as ASCII messages to a standard IO port. It is generally less feature-rich and slower than the debug with Event Recorder and is not recommended for new projects.

To enable STDIO debugging together with the Network Component, it is required to create an image that generates event information. The necessary steps are:

In the RTE management dialog select the Debug STDIO variant for the Network:Core software component. All necessary files, such as the Net_Debug.c file and the debug library will be automatically added to your project.
In the RTE management dialog enable Compiler:I/O:STDOUT component and select its ITM variant.
Configure the Debug Levels.
Build the application code and download it to the target hardware.

Note

If the target system has only one serial port that is used by the PPP or SLIP Network Interface, then use ITM channel for printing debug messages. Otherwise, the debug messages will interfere with the IP packets and the system might malfunction or crash. The ARM::Compiler component helps you to configure the stdio channel.
If the debug mode is used on a high traffic LAN, the system might block. Reduce the amount of printed debug messages in Net_Debug.c configuration or disable the debug mode completely.

Debug Levels

The system is made up of several modules that output debug messages. It is possible to configure the stdio debug output for each module separately. This can be done in the Net_Debug.c file. There are three debug levels available:

Level	Description
Off	The debug messages for the selected module are disabled.
Errors Only	Only error messages are output. This mode is useful for error tracking.
Full Debug	In this mode, all debug messages are output.

The following debug options are available:

Print Time Stamp switch enables or disables printing the time information with debug messages. If this switch is not enabled, the timing information is not printed.
Debug level for each module defines what kind of debug messages are printed.

The owner module of the displayed debug message is identified by the message prefix. The following system and application modules are configurable for debugging:

ID	Module	Description
MEM	Memory Management Debug	Allocates and releases frame buffers.
ETH	Ethernet Debug	Handles Ethernet link.
WIFI	WiFi Debug	Handles wireless network link.
PPP	PPP Debug	Handles serial line direct or modem connection PPP link.
SLIP	SLIP Debug	Handles serial line direct or modem connection SLIP link.
LOOP	Loopback Debug	Handles localhost loopback interface.
ARP	ARP Debug	Handles Ethernet MAC address resolution and caching.
IP4	IPv4 Debug	Processes the IP version 4 network layer.
ICMP	ICMP Debug	Processes ICMP messages. Best known example is the ping.
IGMP	IGMP Debug	Processes IGMP messages, Hosts groups and IP Multicasting.
IP6	IPv6 Debug	Processes the IP version 6 network layer.
ICMP6	ICMPv6 Debug	Processes ICMP version 6 messages. Best known example is the ping.
NDP6	NDP Debug	Handles Neighbor Discovery MAC address resolution and caching.
UDP	UDP Debug	Processes UDP frames.
TCP	TCP Debug	Processes TCP frames.
BSD	BSD Debug	Processes TCP and UDP frames via standard BSD Sockets API.
NBNS	NBNS Debug	The NetBIOS Name Service maintains name access to your hardware.
DHCP	DHCP Debug	Handles automatic configuration of IP address, Net mask, Default Gateway, and Primary and Secondary DNS servers.
DHCP6	DHCP6 Debug	Handles automatic configuration of IP address in IP version 6.
DNS	DNS Debug	Handles the resolution of the IP address from a host name.
SNMP	SNMP Debug	Manages devices on IP network.
HTTP	HTTP Server Debug	Delivers web pages on the request to web clients.
FTP	FTP Server Debug	Manages the files stored on the server and serves the file requests received from the clients.
FTPC	FTP Client Debug	Connects to FTP server to transfer files on the server, and to manage files stored on the server.
TELN	Telnet Server Debug	Allows remote clients to control the system using the command line interface.
TFTP	TFTP Server Debug	A simple service which allows you to send files to or read files from the server.
TFTPC	TFTP Client Debug	Connects to TFTP server to send or receive files.
SMTP	SMTP Client Debug	Connects to SMTP server to send emails.
SNTP	SNTP Debug	Manages clock synchronization over the network.

An example of the debug output is:

0 ETH:*** Processing frame ***
0 ETH: DstMAC 1E-30-6C-A2-45-5E
0 ETH: SrcMAC 00-11-43-A4-FE-40
0 ETH: Proto IP4, 66 bytes
0 IP4:*** Processing frame ***
0 IP4: SrcAddr 192.168.0.5
0 IP4: DstAddr 192.168.0.150
0 IP4: Proto TCP, Id=0x0622
0 IP4: Length 52 bytes
0 TCP:*** Processing frame ***
0 TCP: Ports  : Src=49232, Dst=80
0 TCP: Segment: Seq=0x31EDC88C, Ack=0x0
0 TCP: Control: [SYN] Win=8192, Cks=0x0C67
0 TCP: Mapped to Socket 1, state LISTEN
0 TCP:Process Options, 12 bytes
0 TCP: Opt-MSS: 1440
0 TCP: SendWin: 8192
0 TCP: RTO=4000ms (sa=0, sv=40)
0 TCP: Next state SYN_REC

In the above example, Ethernet, IP and TCP debug messages are enabled:

Received Ethernet packets are processed by the Ethernet layer and a debug message containing Ethernet header information is printed out. Ethernet debug information contains source and destination MAC address, Ethernet frame length and Ethernet protocol type.
The packet is then passed to the IP layer. IP layer prints out IP debug messages containing the IP header information such as source and destination IP address, frame length, protocol type etc.
When the IP layer has processed the packet, the packet is passed to the upper TCP layer. TCP layer prints out TCP debug messages containing the TCP header information such as source and destination ports, sequence and acknowledge numbers, checksum value, frame length etc.

Redirecting Output

Debug messages are output to a standard IO port. The Low level routine sendchar function outputs a single character. If required, you can customize this function to send the debug messages to some other device. In most cases, a serial ITM debug channel is used to print out the debug messages.

Note

When the sendchar function runs in polling mode, printing all debug messages significantly reduces the performance. The preferred way is to rewrite the sendchar function to work in the interrupt mode.
Use the highest baud rate possible to reduce the impact on performance from printing the debug messages.
If the debug mode is enabled and the embedded system is connected to a high traffic LAN with plenty of broadcast packets, the system might malfunction.
Printing debug messages blocks out the system task scheduler during the time when the message is being sent from the serial port. The incoming IP packets accumulate in the memory. This soon causes an out of memory error. Any further incoming packets are lost until some memory is released.

Migrating from RL-TCPnet

The following sections describe the changes to the API functions of the Network Component compared to RL-TCPnet, the Real-Time Library provided with MDK Version 4. Previously, there have been two files carrying the header files: rtl.h and net_config.h. This has been unified in MDK-ARM Version 5 to one header file called rl_net.h. The MDK-ARM Version 5 Network Component requires CMSIS-RTOS functionality. Events are no longer called by interrupt service routines which makes the timing of the overall system more predictable.

The API functions along with the differences are shown in the order:

RL-TCPnet: MDK-ARM Version 4 with links to the RL-ARM online manual.
Network Component v7: IPv4/IPv6 support.
Description of the difference (if more than a name change to the new naming convention).

Note: Some API function names are changed to unify the name space of the Software Components.

Changes from rtl.h

rtl.h         // Network API for RL-ARM middleware components (MDK-ARM Version 4)
rl_net.h      // Complete API for Network Component (MDK-ARM Version 5)

MDK Middleware now uses a single header file for the Network Component.

void       init_TcpNet   (void)
netStatus  netInitialize (void)

Return code changed to netStatus.

BOOL  main_TcpNet (void)
removed

This function is now called internally in Network Component library.

void  timer_tick (void)
removed

The function is now replaced by CMSIS-RTOS functionality and therefore no longer required.

U8       udp_get_socket   (U8 tos, U8 opt, U16 (*listener)(U8 socket, U8 *remip, U16 port, U8 *buf, U16 len))
int32_t  netUDP_GetSocket (netUDP_cb_t cb_func)

Return code changed to int32_t, removed parameters tos and opt. Refer to netUDP_cb_t.

BOOL       udp_release_socket   (U8      socket)
netStatus  netUDP_ReleaseSocket (int32_t socket)

Return code changed to netStatus.

BOOL       udp_open    (U8      socket, U16   locport)
netStatus  netUDP_Open (int32_t socket, uint16_t port)

Return code changed to netStatus.

BOOL       udp_close    (U8      socket)
netStatus  netUDP_Close (int32_t socket)

Return code changed to netStatus.

BOOL  udp_mcast_ttl (U8 socket, U8 ttl)
removed

Use netUDP_SetOption instead.

U8      * udp_get_buf      (U16      size)
uint8_t * netUDP_GetBuffer (uint32_t size)

Identical functionality.

BOOL       udp_send    (U8      socket, U8 *remip, U16 remport, U8      *buf, U16     dlen)
netStatus  netUDP_Send (int32_t socket, const NET_ADDR *addr,   uint8_t *buf, uint32_t len)

Return code changed to netStatus and IP address to NET_ADDR.

U8       tcp_get_socket   (U8 type, U8 tos, U16 tout, U16 (*listener)(U8 socket, U8 event, U8 *buf, U16 len))
int32_t  netTCP_GetSocket (netTCP_cb_t cb_func)

Return code changed to int32_t, removed parameters type and tos. Refer to netTCP_cb_t.

BOOL       tcp_release_socket   (U8      socket)
netStatus  netTCP_ReleaseSocket (int32_t socket)

Return code changed to netStatus.

BOOL       tcp_listen    (U8      socket, U16   locport)
netStatus  netTCP_Listen (int32_t socket, uint16_t port)

Return code changed to netStatus.

BOOL       tcp_connect    (U8      socket, U8 *remip, U16 remport, U16      locport   )
netStatus  netTCP_Connect (int32_t socket, const NET_ADDR *addr,   uint16_t local_port)

Return code changed to netStatus and IP address to NET_ADDR.

U8      * tcp_get_buf      (U16      size)
uint8_t * netTCP_GetBuffer (uint32_t size)

Identical functionality.

U16       tcp_max_dsize            (U8      socket)
uint32_t  netTCP_GetMaxSegmentSize (int32_t socket)

Identical functionality.

BOOL  tcp_check_send   (U8      socket)
bool  netTCP_SendReady (int32_t socket)

Identical functionality.

U8            tcp_get_state   (U8      socket)
netTCP_State  netTCP_GetState (int32_t socket)

Return code changed to netTCP_State.

BOOL       tcp_send    (U8      socket, U8      *buf, U16     dlen)
netStatus  netTCP_Send (int32_t socket, uint8_t *buf, uint32_t len)

Return code changed to netStatus.

BOOL       tcp_close    (U8      socket)
netStatus  netTCP_Close (int32_t socket)

Return code changed to netStatus.

BOOL       tcp_abort    (U8      socket)
netStatus  netTCP_Abort (int32_t socket)

Return code changed to netStatus.

void       tcp_reset_window          (U8      socket)
netStatus  netTCP_ResetReceiveWindow (int32_t socket)

Return code changed to netStatus.

BOOL       arp_cache_ip   (                       U8      *ipadr,    U8               type)
netStatus  netARP_CacheIP (uint32_t if_num, const uint8_t *ip4_addr, netARP_CacheType type)

Return code changed to netStatus.
Added if_num specifying the network interface number
Using netARP_CacheType enum now

BOOL       arp_cache_mac   (                       U8      *hwadr)
netStatus  netARP_CacheMAC (uint32_t if_num, const uint8_t *mac_addr)

Return code changed to netStatus.
Added if_num specifying the network interface number.

void       ppp_listen     (const char *user,     const char *passw)
netStatus  netPPP_Listen  (const char *username, const char *password)

Return code changed to netStatus.

void       ppp_connect    (const char *dialnum,  const char *user,     const char *passw)
netStatus  netPPP_Connect (const char *dial_num, const char *username, const char *password)

Return code changed to netStatus.

void       ppp_close    (void)
netStatus  netPPP_Close (void)

Return code changed to netStatus.

void       slip_listen    (void)
netStatus  netSLIP_Listen (void)

Return code changed to netStatus.

void       slip_connect    (const char *dialnum)
netStatus  netSLIP_Connect (const char *dial_num)

Return code changed to netStatus.

void       slip_close    (void)
netStatus  netSLIP_Close (void)

Return code changed to netStatus.

U8         get_host_by_name      (U8         *hostn,                    void (*cbfunc)(U8 event, U8 *host_ip))
netStatus  netDNSc_GetHostByName (const char *name, int16_t addr_type,  netDNSc_cb_t cb_func)

Return code changed to netStatus.
Adder parameter addr_type.
Event definitions changed to netDNSc_Event (see netDNSc_cb_t).

BOOL       smtp_connect     (U8 *ipadr, U16 port, void (*cbfunc)(U8 event))
netStatus  netSMTPc_Connect (const NET_ADDR *addr)

Return code changed to netStatus.
Function callback parameter removed.
New function netSMTPc_Notify added for that purpose.

void       dhcp_disable    (void)
netStatus  netDHCP_Disable (uint32_t if_num)

Return code changed to netStatus.
The argument if_num specifies the network interface number.

BOOL       igmp_join    (                       U8      *group_ip)
netStatus  netIGMP_Join (uint32_t if_num, const uint8_t *ip4_addr)

Return code changed to netStatus.
The argument if_num specifies the network interface number.

BOOL       igmp_leave    (                       U8      *group_ip)
netStatus  netIGMP_Leave (uint32_t if_num, const uint8_t *ip4_addr)

Return code changed to netStatus.
The argument if_num specifies the network interface number.

BOOL       snmp_trap    (      U8 *manager_ip, U8     gen_trap, U8     spec_trap,       U16      *obj_list)
netStatus  netSNMP_Trap (const NET_ADDR *addr, uint8_t generic, uint8_t specific, const uint16_t *obj_list)

Return code changed to netStatus
Changed trap manager IP address to NET_ADDR

BOOL       snmp_set_community   (const char *community)
netStatus  netSNMP_SetCommunity (const char *community)

Return code changed to netStatus.

BOOL       icmp_ping    (      U8      *remip, void (*cbfunc)(U8 event))
netStatus  netPing_Echo (const NET_ADDR *addr, netPing_cb_t cb_func)

Return code changed to netStatus.
Event definitions changed (refer to netPing_cb_t).

BOOL       ftpc_connect    (U8 *ipadr, U16 port,  U8             command, void (*cbfunc)(U8 event))
netStatus  netFTPc_Connect (const NET_ADDR *addr, netFTP_Command command)

Return code changed to netStatus.
Command definitions changed enum netFTP_Command.
Function callback parameter removed. New function netFTPc_Notify added for that purpose.

BOOL       tftpc_put    (U8 *ipadr, U16  port, const char *src,   const char *dst,       void (*cbfunc)(U8 event))
netStatus  netTFTPc_Put (const NET_ADDR *addr, const char *fname, const char *local_fname)

Return code changed to netStatus.
Function callback parameter removed. New function netTFTPc_Notify added for that purpose.

BOOL       tftpc_get    (U8 *ipadr, U16  port, const char *src,   const char *dst,       void (*cbfunc)(U8 event))
netStatus  netTFTPc_Get (const NET_ADDR *addr, const char *fname, const char *local_fname)

Return code changed to netStatus.
Function callback parameter removed. New function netTFTPc_Notify added for that purpose.

BOOL       sntp_get_time    (      U8      *ipadr, void (*cbfunc)(U32 utc_time))
netStatus  netSNTPc_GetTime (const NET_ADDR *addr, netSNTPc_cb_t cb_func)

Return code changed to netStatus
IP address changed to NET_ADDR

void  ftp_evt_notify (U8            evt)
void  netFTPs_Notify (netFTPs_Event event)

Event definitions changed to enum netFTPs_Event.

const char *http_encoding  (void)
const char *netCGI_Charset (void)

Identical functionality.

BSD socket functions

Return code changed from SCK_Exxx to BSD_ERROR_xxx.

Changes from net_config.h

net_config.h     // Common TCPnet definitions (MDK-ARM Version 4)
rl_net_ds.h      // Complete API for Network Component (MDK-ARM Version 5, Dual-Stack)

MDK Middleware now uses a single header file for the Network Component.

void  dhcp_cbfunc    (                 U8         opt,       U8      *val, U16      len)
void  netDHCP_Notify (uint32_t if_num, uint8_t option, const uint8_t *val, uint32_t len)

Added if_num specifying the network interface number.

void * http_fopen     (      U8   *name)
void * netHTTPs_fopen (const char *fname)

Identical functionality.

void  http_fclose     (void *file)
void  netHTTPs_fclose (void *file)

Identical functionality.

U16       http_fread     (void *file, U8      *buf, U16      len)
uint32_t  netHTTPs_fread (void *file, uint8_t *buf, uint32_t len)

Identical functionality.

BOOL   http_fgets     (void *file, U8   *buf, U16      size)
char  *netHTTPs_fgets (void *file, char *buf, uint32_t size)

Return code changed to *char.

U32   http_finfo     (      U8   *name)
void  netHTTPs_fstat (const char *fname, uint32_t *fsize, uint32_t *ftime)

Added parameters *fsize and *ftime.
Return code removed.

void  cgi_process_var     (      U8   *qstr)
void  netCGI_ProcessQuery (const char *qstr)

Identical functionality.

void  cgi_process_data   (U8      code,       U8   *dat,  U16      len)
void  netCGI_ProcessData (uint8_t code, const char *data, uint32_t len)

Identical functionality.

U16       cgi_func      (      U8   *env, U8   *buf, U16       buflen, U32      *pcgi)
uint32_t  netCGI_Script (const char *env, char *buf, uint32_t buf_len, uint32_t *pcgi)

Identical functionality.

      U8   * cgx_content_type   (void)
const char * netCGX_ContentType (void)

Return code changed to const char *.

BOOL  http_accept_host      (U8 *rem_ip, U16 rem_port)
bool  netHTTPs_AcceptClient (const NET_ADDR *addr)

Identical functionality.

BOOL  http_file_access    (U8 *fname, U8 user_id)
bool  netHTTPs_FileAccess (uint8_t user_id, const char *fname)

Identical functionality.

U8       http_check_account    (      U8   *user,           U8   *passw)
uint8_t  netHTTPs_CheckAccount (const char *username, const char *password)

Identical functionality.

      U8   * http_get_var     (      U8   *env, void *ansi, U16      maxlen)
const char * netCGI_GetEnvVar (const char *env, char *ansi, uint32_t max_len)

Return code changed to const char *.

      U8   * http_get_lang        (void)
const char * netHTTPs_GetLanguage (void)

Return code changed to const char *.

void       http_get_info      (REMOTEM *info)
netStatus  netHTTPs_GetClient (NET_ADDR *addr, uint32_t addr_len)

Return code changed to netStatus.

U8       http_get_session    (void)
int32_t  netHTTPs_GetSession (void)

Identical functionality.

U8       http_get_user_id   (void)
uint8_t  netHTTPs_GetUserId (void)

Identical functionality.

      U8   * http_get_content_type   (void)
const char * netHTTPs_GetContentType (void)

Return code changed to const char *.

U32   http_date (RL_TIME *time)
removed

U16       tnet_cbfunc               (U8                code, U8   *buf, U16      buflen)
uint32_t  netTELNETs_ProcessMessage (netTELNETs_Message msg, char *buf, uint32_t buf_len)

Identical functionality.

U16       tnet_process_cmd          (      U8   *cmd, U8   *buf, U16      buflen,  U32      *pvar)
uint32_t  netTELNETs_ProcessCommand (const char *cmd, char *buf, uint32_t buf_len, uint32_t *pvar)

Identical functionality.

BOOL  tnet_ccmp               (      U8   *buf,       U8   *cmd)
bool  netTELNETs_CheckCommand (const char *cmd, const char *user_cmd)

Identical functionality.

void  tnet_set_delay (U16 cnt)
removed

Use netTELNETs_RepeatCommand instead.

void       tnet_get_info        (REMOTEM *info)
netStatus  netTELNETs_GetClient (NET_ADDR *addr, uint32_t addr_len)

Return code changed to netStatus.

new int32_t netTELNETs_GetSession (void)

Identical functionality.

U8       tnet_get_user_id     (void)
uint8_t  netTELNETs_GetUserId (void)

Identical functionality.

BOOL  tnet_msg_poll (U8 session)
removed

Use netTELNETs_RequestMessage instead.

BOOL  tnet_accept_host        (U8 *rem_ip, U16 rem_port)
bool  netTELNETs_AcceptClient (const NET_ADDR *addr)

Identical functionality.

U8    tnet_check_account (U8 code, U8 *id)
removed

Use netTELNETs_CheckUsername and netTELNETs_CheckPassword instead.

void * tftp_fopen     (      U8   *fname,       U8   *mode)
void * netTFTPs_fopen (const char *fname, const char *mode)

Identical functionality.

void  tftp_fclose     (void *file)
void  netTFTPs_fclose (void *file)

Identical functionality.

U16       tftp_fread     (void *file, U8      *buf, U16      len)
uint32_t  netTFTPs_fread (void *file, uint8_t *buf, uint32_t len)

Identical functionality.

U16       tftp_fwrite     (void *file,       U8      *buf, U16      len)
uint32_t  netTFTPs_fwrite (void *file, const uint8_t *buf, uint32_t len)

Identical functionality.

BOOL  tftp_accept_host      (U8 *rem_ip, U16 rem_port)
bool  netTFTPs_AcceptClient (const NET_ADDR *addr)

Identical functionality.

void * tftpc_fopen    (      U8   *fname,       U8   *mode)
void * netTFTPc_fopen (const char *fname, const char *mode)

Identical functionality.

void  tftpc_fclose    (void *file)
void  netTFTPc_fclose (void *file)

Identical functionality.

U16       tftpc_fread    (void *file, U8      *buf, U16      len)
uint32_t  netTFTPc_fread (void *file, uint8_t *buf, uint32_t len)

Identical functionality.

U16       tftpc_fwrite    (void *file,       U8      *buf, U16      len)
uint32_t  netTFTPc_fwrite (void *file, const uint8_t *buf, uint32_t len)

Identical functionality.

void * ftp_fopen     (      U8   *fname,       U8   *mode)
void * netFTPs_fopen (const char *fname, const char *mode)

Identical functionality.

void  ftp_fclose     (void *file)
void  netFTPs_fclose (void *file)

Identical functionality.

U16       ftp_fread     (void *file, U8      *buf, U16      len)
uint32_t  netFTPs_fread (void *file, uint8_t *buf, uint32_t len)

Identical functionality.

U16       ftp_fwrite     (void *file,       U8      *buf, U16      len)
uint32_t  netFTPs_fwrite (void *file, const uint8_t *buf, uint32_t len)

Identical functionality.

BOOL  ftp_fdelete     (      U8   *fname)
bool  netFTPs_fdelete (const char *fname)

Identical functionality.

BOOL  ftp_frename     (      U8   *fname,       U8   *newn)
bool  netFTPs_frename (const char *fname, const char *newname)

Identical functionality.

U16      ftp_ffind     (    U8      code,  U8    *buf,   U8      *mask,   U16        len)
int32_t  netFTPs_ffind (const char *mask, char *fname, uint32_t *fsize, NET_FS_TIME *ftime, bool first)

name changed, functions not compatible.
removed parameters code, *buf and len.
added parameters *fname, *fsize, *ftime and first.
return code changed to return the status.

BOOL  ftp_accept_host      (U8 *rem_ip, U16 rem_port)
bool  netFTPs_AcceptClient (const NET_ADDR *addr)

Changed IP address and port to NET_ADDR.

U8    ftp_check_account (U8 code, U8 *id)
removed

Use netFTPs_CheckUsername and netFTPs_CheckPassword instead.

U8       ftp_get_user_id   (void)
uint8_t  netFTPs_GetUserId (void)

Identical functionality.

BOOL  ftp_file_access    (U8 *fname, U8 mode, U8 user_id)
bool  netFTPs_FileAccess (uint8_t user_id, const char *fname, uint8_t access)

Identical functionality.

void  ftp_evt_notify (U8            evt)
void  netFTPs_Notify (netFTPs_Event event)

Changed event to netFTPs_Event enum.

void * ftpc_fopen    (                         U8   *mode)
void * netFTPc_fopen (const char *fname, const char *mode)

The argument fname specifies local file name.

void  ftpc_fclose    (void *file)
void  netFTPc_fclose (void *file)

Identical functionality.

U16       ftpc_fread    (void *file, U8      *buf, U16      len)
uint32_t  netFTPc_fread (void *file, uint8_t *buf, uint32_t len)

Identical functionality.

U16       ftpc_fwrite    (void *file,       U8      *buf, U16      len)
uint32_t  netFTPc_fwrite (void *file, const uint8_t *buf, uint32_t len)

Identical functionality.

U16       ftpc_cbfunc     (U8 code,                 U8   *buf, U16      buflen)
uint32_t  netFTPc_Process (netFTPc_Request request, char *buf, uint32_t buf_len)

Changed code/request to netFTPc_Request.

U16       smtp_cbfunc      (U8 code,                  U8   *buf, U16      buflen,  U32      *pvar)
uint32_t  netSMTPc_Process (netSMTPc_Request request, char *buf, uint32_t buf_len, uint32_t *pvar)

Changed code/request to netSMTPc_Request.

BOOL  smtp_accept_auth              (U8 *srv_ip)
bool  netSMTPc_AcceptAuthentication (const NET_ADDR *addr)

Changed IP address to NET_ADDR.

Migrating from Network Component v5/v6

Previous versions of the MDK-Professional Middleware (Keil.MDK-Middleware.6.5.0 and below) did not support IPv6. This has been added in the latest release. With this, a change in the namespace has taken place. Most functions are working identically, but have been extended to support IPv6. This reference compares the API changes for every component function-by-function. If you require a complete function reference for the old API, please install a previous version of the Network Component.

The API functions along with the differences are shown in the order:

Network Component v5/v6: IPv4-only support.
Network Component v7: IPv4/IPv6 support.
Description of the difference.

Network Core

netStatus net_initialize (void)
netStatus netInitialize  (void)

name changed, functions compatible
netInitialize creates netCore_Thread and RTOS protection objects (thread-safe).
netCore_Thread runs in event-driven mode

int net_main (void)
removed

removed from Network-DS user API and moved to an internal netCore_Thread
netInitialize creates netCore_Thread and RTOS protection objects (thread-safe).

UDP Sockets

int32_t udp_get_socket   (uint8_t tos, uint8_t opt, net_udp_cb_t cb_func)
int32_t netUDP_GetSocket (                          netUDP_cb_t  cb_func)

name changed, functions not compatible
replaced parameters with default values: tos, opt
callback function changed to netUDP_cb_t (different parameters)
netUDP_GetSocket is thread-safe

Default values for removed parameters:

tos = 0,
opt = Calculate and verify checksum enabled.

Use netUDP_SetOption function to change these values:

To change the tos value use:

netUDP_SetOption (socket, netUDP_OptionTOS, tos);

To disable the checksum calculation use:

netUDP_SetOption (socket, netUDP_OptionChecksum, 0);

uint32_t (*net_udp_cb_t)(int32_t socket, const uint8_t *ip_addr, uint16_t port, const uint8_t *buf, uint32_t len);
uint32_t (*netUDP_cb_t) (int32_t socket, const NET_ADDR   *addr,                const uint8_t *buf, uint32_t len);

name changed, functions not compatible
parameters *ip_addr and port replaced with structure *addr, where:
ip_addr = addr->addr

port = addr->port

netStatus udp_release_socket   (int32_t socket)
netStatus netUDP_ReleaseSocket (int32_t socket)

name changed, functions compatible
netUDP_ReleaseSocket is thread-safe

netStatus udp_open    (int32_t socket, uint16_t port)
netStatus netUDP_Open (int32_t socket, uint16_t port)

name changed, functions compatible
netUDP_Open is thread-safe

netStatus udp_close    (int32_t socket)
netStatus netUDP_Close (int32_t socket)

name changed, functions compatible
netUDP_Close is thread-safe

uint8_t *udp_get_buf      (uint32_t size)
uint8_t *netUDP_GetBuffer (uint32_t size)

name changed, functions compatible
netUDP_GetBuffer is thread-safe

netStatus udp_send    (int32_t socket, const uint8_t *ip_addr, uint16_t port, uint8_t *buf, uint32_t len)
netStatus netUDP_Send (int32_t socket, const NET_ADDR *addr,                  uint8_t *buf, uint32_t len)

name changed, functions not compatible
parameters *ip_addr and port replaced with *addr structure
netUDP_Send is thread-safe

To convert from old parameters to new NET_ADDR structure use the following code:

NET_ADDR4 addr4;
addr4.addr_type = NET_ADDR_IP4;
addr4.port      = port;
memcpy (addr4.addr, ip_addr, NET_ADDR_IP4_LEN);

netStatus udp_multicast_ttl (int32_t socket, uint8_t ttl)
removed

Use netUDP_SetOption function to change ttl:

netUDP_SetOption (socket, netUDP_OptionTTL, ttl);

TCP Sockets

int32_t tcp_get_socket   (uint8_t type, uint8_t tos, uint32_t tout, net_tcp_cb_t cb_func)
int32_t netTCP_GetSocket (                                          netTCP_cb_t  cb_func)

name changed, functions not compatible
replaced parameters with defaults: type, tos, tout
callback function changed to netTCP_cb_t (different parameters)
netTCP_GetSocket is thread-safe

Default values for removed parameters:

type = 0,
tos = 0,
tout = default timeout specified in configuration Net_Config_TCP.h

Use netTCP_SetOption function to change the defaults.

To enable TCP_TYPE_DELAY_ACK use:

netTCP_SetOption (socket, netTCP_OptionDelayedACK, 1);

To enable TCP_TYPE_KEEP_ALIVE use:

netTCP_SetOption (socket, netTCP_OptionKeepAlive, 1);

To enable TCP_TYPE_FLOW_CTRL use:

netTCP_SetOption (socket, netTCP_OptionFlowControl, 1);

uint32_t (*net_tcp_cb_t)(int32_t socket,     tcpEvent event,                       const uint8_t *buf, uint32_t len);
uint32_t (*netTCP_cb_t) (int32_t socket, netTCP_Event event, const NET_ADDR *addr, const uint8_t *buf, uint32_t len);

name changed, functions not compatible
parameter tcpEvent changed to netTCP_Event, enumerations are compatible
added parameter addr, which provides an IP address and port number of the remote peer
parameter buf and len functionality changed to provide only the data
In Network v5/v6 the meaning of parameters was defined with an event type:
- tcpEventData: buf = pointer to data, len = length of the data
- other events: buf = IP address, len = port number.

netStatus tcp_release_socket   (int32_t socket)
netStatus netTCP_ReleaseSocket (int32_t socket)

name changed, functions compatible
netTCP_ReleaseSocket is thread-safe

netStatus tcp_listen    (int32_t socket, uint16_t port)
netStatus netTCP_Listen (int32_t socket, uint16_t port)

name changed, functions compatible
now implicitly starts a TCP socket in SERVER mode
netTCP_Listen is thread-safe

netStatus tcp_connect    (int32_t socket, const uint8_t *ip_addr, uint16_t port, uint16_t local_port)
netStatus netTCP_Connect (int32_t socket, const NET_ADDR *addr,                  uint16_t local_port)

name changed, functions not compatible
parameters *ip_addr and port need conversion to structure *addr Use the following code for the conversion:
NET_ADDR4 addr4;

addr4.addr_type = NET_ADDR_IP4;

addr4.port = port;

memcpy (addr4.addr, ip_addr, NET_ADDR_IP4_LEN);
now implicitly starts a TCP socket in CLIENT mode
netTCP_Connect is thread-safe

uint8_t *tcp_get_buf      (uint32_t size)
uint8_t *netTCP_GetBuffer (uint32_t size)

name changed, functions compatible
netTCP_GetBuffer is thread-safe

uint32_t tcp_max_data_size        (int32_t socket)
uint32_t netTCP_GetMaxSegmentSize (int32_t socket)

name changed, functions compatible
netTCP_GetMaxSegmentSize is thread-safe

bool tcp_check_send   (int32_t socket)
bool netTCP_SendReady (int32_t socket)

name changed, functions compatible
netTCP_SendReady is thread-safe

tcpState     tcp_get_state   (int32_t socket)
netTCP_State netTCP_GetState (int32_t socket)

name changed, functions not compatible
enumerator netTCP_State has an additional state netTCP_StateINVALID, which was not existing before
netTCP_GetState is thread-safe

const char *tcp_ntoa (tcpState state)
removed

netStatus tcp_send    (int32_t socket, uint8_t *buf, uint32_t len)
netStatus netTCP_Send (int32_t socket, uint8_t *buf, uint32_t len)

name changed, functions compatible
netTCP_Send is thread-safe

netStatus tcp_close    (int32_t socket)
netStatus netTCP_Close (int32_t socket)

name changed, functions compatible
netTCP_Close is thread-safe

netStatus tcp_abort    (int32_t socket)
netStatus netTCP_Abort (int32_t socket)

name changed, functions compatible
netTCP_Abort is thread-safe

netStatus tcp_reset_window          (int32_t socket)
netStatus netTCP_ResetReceiveWindow (int32_t socket)

name changed, functions compatible
netTCP_ResetReceiveWindow is thread-safe

BSD Sockets

The BSD Socket API is not changed and is backward compatible. It has been extended to support new IPv6 addresses without breaking existing API.

FTP Server

bool ftp_accept_client    (const uint8_t *ip_addr, uint16_t port)
bool netFTPs_AcceptClient (const NET_ADDR *addr)

name changed, functions not compatible
parameters *ip_addr and port are replaced with structure *addr, where
port = addr->port

ip_addr = addr->addr

uint8_t ftp_check_username    (const char *username)
uint8_t netFTPs_CheckUsername (const char *username)

name changed, functions compatible

bool ftp_check_password    (uint8_t user_id, const char *password)
bool netFTPs_CheckPassword (uint8_t user_id, const char *password)

name changed, functions compatible

bool ftp_file_access    (uint8_t user_id, const char *fname, uint8_t  mode)
bool netFTPs_FileAccess (uint8_t user_id, const char *fname, uint32_t access)

name changed, functions not compatible
parameter mode changed to access:

mode access

0 NET_ACCESS_FILE_READ

1 NET_ACCESS_FILE_WRITE

2 NET_ACCESS_DIRECTORY_CREATE and NET_ACCESS_DIRECTORY_REMOVE

3 NET_ACCESS_DIRECTORY_LIST

uint8_t ftp_get_user_id   (void)
uint8_t netFTPs_GetUserId (void)

name changed, functions compatible

void ftp_server_notify (ftpServerEvent event)
void netFTPs_Notify    (netFTPs_Event  event)

name changed, functions compatible
enumerators ftpServerEvent and netFTPs_Event are compatible

void *ftp_server_fopen (const char *fname, const char *mode)
void *netFTPs_fopen    (const char *fname, const char *mode)

Changed function name to new naming convention.

void ftp_server_fclose (void *file)
void netFTPs_fclose    (void *file)

Changed function name to new naming convention.

uint32_t ftp_server_fread (void *file, uint8_t *buf, uint32_t len)
uint32_t netFTPs_fread    (void *file, uint8_t *buf, uint32_t len)

Changed function name to new naming convention.

uint32_t ftp_server_fwrite (void *file, const uint8_t *buf, uint32_t len)
uint32_t netFTPs_fwrite    (void *file, const uint8_t *buf, uint32_t len)

Changed function name to new naming convention.

bool ftp_server_fdelete (const char *fname)
bool netFTPs_fdelete    (const char *fname)

Changed function name to new naming convention.

bool ftp_server_frename (const char *fname, const char *newname)
bool netFTPs_frename    (const char *fname, const char *newname)

Changed function name to new naming convention.

bool ftp_server_mkdir (const char *path)
bool netFTPs_mkdir    (const char *path)

Changed function name to new naming convention.

bool ftp_server_rmdir (const char *path)
bool netFTPs_rmdir    (const char *path)

Changed function name to new naming convention.

uint32_t ftp_server_ffind (uint8_t     code, char   *buf, uint32_t  buflen, const char  *mask)
int32_t  netFTPs_ffind    (const char *mask, char *fname, uint32_t  *fsize, NET_FS_TIME *ftime, bool first)

name changed, functions not compatible.
removed parameters code, *buf and len.
added parameters *fname, *fsize, *ftime and first.
return code changed to return the status.

FTP Client

netStatus ftp_client_connect (const uint8_t *ip_addr, uint16_t port, ftpCommand     command)
netStatus netFTPc_Connect    (const NET_ADDR *addr,                  netFTP_Command command)

name changed, functions not compatible
parameters *ip_addr and port need conversion to structure *addr
Use the following code for the conversion:
NET_ADDR4 addr4;

addr4.addr_type = NET_ADDR_IP4;

addr4.port = port;

memcpy (addr4.addr, ip_addr, NET_ADDR_IP4_LEN);
enumerators ftpCommand and netFTP_Command are compatible
netFTPc_Connect is thread-safe

uint32_t ftp_client_request (ftpClientRequest request, char *buf, uint32_t len)
uint32_t netFTPc_Process    (netFTPc_Request  request, char *buf, uint32_t buf_len)

name changed, functions not compatible

enumerators ftpClientRequest and netFTPc_Request are not compatible:

ftpClientRequest	netFTPc_Request
`ftpClientUsername`	`netFTPc_RequestUsername`
`ftpClientPassword`	`netFTPc_RequestPassword`
`ftpClientPath`	`netFTPc_RequestDirectory`
`ftpClientFilename`	`netFTPc_RequestName`
`ftpClientDirectory`	`netFTPc_RequestName`
`ftpClientNewName`	`netFTPc_RequestNewName`
`ftpClientFilterMask`	`netFTPc_RequestListMask`
`ftpClientList`	`netFTPc_RequestList`
`ftpClientLocalFile`	`netFTPc_RequestLocalFilename`

void ftp_client_notify (ftpClientEvent event)
void netFTPc_Notify    (netFTPc_Event  event)

name changed, functions compatible
enumerators ftpClientEvent and netFTPc_Event are compatible

void *ftp_client_fopen (const char *fname, const char *mode)
void *netFTPc_fopen    (const char *fname, const char *mode)

Changed function name to new naming convention.

void ftp_client_fclose (void *file)
void netFTPc_fclose    (void *file)

Changed function name to new naming convention.

uint32_t ftp_client_fread (void *file, uint8_t *buf, uint32_t len)
uint32_t netFTPc_fread    (void *file, uint8_t *buf, uint32_t len)

Changed function name to new naming convention.

uint32_t ftp_client_fwrite (void *file, const uint8_t *buf, uint32_t len)
uint32_t netFTPc_fwrite    (void *file, const uint8_t *buf, uint32_t len)

Changed function name to new naming convention.

TFTP Server

bool tftp_accept_client    (const uint8_t *ip_addr, uint16_t port)
bool netTFTPs_AcceptClient (const NET_ADDR *addr)

name changed, functions not compatible
parameters *ip_addr and port are replaced with structure *addr, where
port = addr->port

ip_addr = addr->addr

void *tftp_server_fopen (const char *fname, const char *mode)
void *netTFTPs_fopen    (const char *fname, const char *mode)

Changed function name to new naming convention.

void tftp_server_fclose (void *file)
void netTFTPs_fclose    (void *file)

Changed function name to new naming convention.

uint32_t tftp_server_fread (void *file, uint8_t *buf, uint32_t len)
uint32_t netTFTPs_fread    (void *file, uint8_t *buf, uint32_t len)

Changed function name to new naming convention.

uint32_t tftp_server_fwrite (void *file, const uint8_t *buf, uint32_t len)
uint32_t netTFTPs_fwrite    (void *file, const uint8_t *buf, uint32_t len)

Changed function name to new naming convention.

TFTP Client

netStatus tftp_client_put (const uint8_t *ip_addr, uint16_t port, const char *src,   const char *dst)
netStatus netTFTPc_Put    (const NET_ADDR *addr,                  const char *fname, const char *local_fname)

name changed, functions not compatible
parameters *ip_addr and port need conversion to structure *addr
Use the following code for the conversion:
NET_ADDR4 addr4;

addr4.addr_type = NET_ADDR_IP4;

addr4.port = port;

memcpy (addr4.addr, ip_addr, NET_ADDR_IP4_LEN);
parameter *src renamed to *local_name
parameter *dst renamed to *fname
netTFTPc_Put is thread-safe

netStatus tftp_client_get (const uint8_t *ip_addr, uint16_t port, const char *src,   const char *dst)
netStatus netTFTPc_Get    (const NET_ADDR *addr,                  const char *fname, const char *local_fname)

name changed, functions not compatible
parameters *ip_addr and port need conversion to structure *addr
Use the following code for the conversion:
NET_ADDR4 addr4;

addr4.addr_type = NET_ADDR_IP4;

addr4.port = port;

memcpy (addr4.addr, ip_addr, NET_ADDR_IP4_LEN);
parameter *src renamed to *fname
parameter *dst renamed to *local_name
netTFTPc_Get is thread-safe

void tftp_client_notify (tftpClientEvent event)
void netTFTPc_Notify    (netTFTPc_Event  event)

name changed, functions not compatible

enumerators tftpClientEvent and netTFTPc_Event are not compatible:

tftpClientEvent	netTFTPc_Event
`tftpClientSuccess`	`netTFTPc_EventSuccess`
`tftpClientTimeout`	`netTFTPc_EventTimeout`
`tftpClientAccessDenied`	`netTFTPc_EventAccessDenied`
`tftpClientFileNotFound`	`netTFTPc_EventFileNotFound`
`tftpClientDiskFull`	`netTFTPc_EventDiskFull`
`tftpClientDiskFull`	`netTFTPc_EventLocalFileError`
`tftpClientError`	`netTFTPc_EventError`

void *tftp_client_fopen (const char *fname, const char *mode)
void *netTFTPc_fopen    (const char *fname, const char *mode)

Changed function name to new naming convention.

void tftp_client_fclose (void *file)
void netTFTPc_fclose    (void *file)

Changed function name to new naming convention.

uint32_t tftp_client_fread (void *file, uint8_t *buf, uint32_t len)
uint32_t netTFTPc_fread    (void *file, uint8_t *buf, uint32_t len)

Changed function name to new naming convention.

uint32_t tftp_client_fwrite (void *file, const uint8_t *buf, uint32_t len)
uint32_t netTFTPc_fwrite    (void *file, const uint8_t *buf, uint32_t len)

Changed function name to new naming convention.

Telnet Server

netStatus telnet_server_set_delay  (uint32_t delay)
netStatus netTELNETs_RepeatCommand (uint32_t delay)

name changed, functions compatible

netStatus telnet_server_get_client (uint8_t *ip_addr, uint8_t *mac_addr)
netStatus netTELNETs_GetClient     (NET_ADDR *addr, uint32_t addr_len)

name changed, functions not compatible
parameter *ip_addr replaced with structure *addr and addr_len
parameter *mac_addr removed
Use netARP_GetMAC or netNDP_GetMAC to retrieve MAC address from cache

int32_t telnet_server_get_session (void)
int32_t netTELNETs_GetSession     (void)

name changed, functions compatible

bool telnet_check_command     (const char *cmd, const char *user_cmd)
bool netTELNETs_CheckCommand  (const char *cmd, const char *user_cmd)

name changed, functions compatible

uint32_t telnet_server_message      (telnetServerMessage msg, char *buf, uint32_t len)
uint32_t netTELNETs_ProcessMessage  (netTELNETs_Message  msg, char *buf, uint32_t buf_len)

name changed, functions compatible
enumerators telnetServerMessage and netTELNETs_Message are compatible, but the sequence of definitions is reordered

uint32_t telnet_server_process     (const char *cmd, char *buf, uint32_t buflen,  uint32_t *pvar)
uint32_t netTELNETs_ProcessCommand (const char *cmd, char *buf, uint32_t buf_len, uint32_t *pvar)

name changed, functions compatible

bool telnet_server_message_poll (int32_t session)
removed

Use netTELNETs_RequestMessage function for unsolicited messages instead.

Network v7 library does not poll for unsolicited messages anymore. When a request for unsolicited message is registered with the netTELNETs_RequestMessage function, the server requests the message content with the function netTELNETs_ProcessMessage.

bool telnet_accept_client    (const uint8_t *ip_addr, uint16_t port)
bool netTELNETs_AcceptClient (const NET_ADDR *addr)

name changed, functions not compatible
parameters *ip_addr and port are replaced with structure *addr, where
port = addr->port

ip_addr = addr->addr

uint8_t telnet_check_username    (const char *username)
uint8_t netTELNETs_CheckUsername (const char *username)

name changed, functions compatible

bool telnet_check_password    (uint8_t user_id, const char *password)
bool netTELNETs_CheckPassword (uint8_t user_id, const char *password)

name changed, functions compatible

uint8_t telnet_get_user_id   (void)
uint8_t netTELNETs_GetUserId (void)

name changed, functions compatible

HTTP Server

const char *http_get_env_var (const char *env, char *ansi, uint32_t maxlen)
const char *netCGI_GetEnvVar (const char *env, char *ansi, uint32_t max_len)

name changed, functions compatible

uint32_t http_utc_time (uint8_t hr, uint8_t min, uint8_t sec, uint8_t day, uint8_t mon, uint16_t year)
removed

netStatus http_server_get_client (uint8_t *ip_addr, uint8_t *mac_addr)
netStatus netHTTPs_GetClient     (NET_ADDR *addr, uint32_t addr_len)

name changed, functions not compatible
parameter *ip_addr replaced with structure *addr and addr_len
parameter *mac_addr removed
Use netARP_GetMAC or netNDP_GetMAC to retrieve MAC address from cache

int32_t http_server_get_session (void)
int32_t netHTTPs_GetSession     (void)

name changed, functions compatible

const char *http_server_get_lang (void)
const char *netHTTPs_GetLanguage (void)

name changed, functions compatible

const char *http_server_get_content_type (void)
const char *netHTTPs_GetContentType      (void)

Changed function name to new naming convention.

name changed, functions compatible

void cgi_process_query   (const char *qstr)
void netCGI_ProcessQuery (const char *qstr)

name changed, functions compatible

void cgi_process_data   (uint8_t code, const char *data, uint32_t len)
void netCGI_ProcessData (uint8_t code, const char *data, uint32_t len)

name changed, functions compatible

uint32_t cgi_script    (const char *env, char *buf, uint32_t buflen,  uint32_t *pcgi)
uint32_t netCGI_Script (const char *env, char *buf, uint32_t buf_len, uint32_t *pcgi)

name changed, functions compatible

const char *cgi_content_type   (const char *file_ext)
const char *netCGI_ContentType (const char *file_ext)

name changed, functions compatible

const char *cgx_content_type   (void)
const char *netCGX_ContentType (void)

name changed, functions compatible

const char *http_encoding  (void)
const char *netCGI_Charset (void)

name changed, functions compatible

bool http_accept_client    (const uint8_t *ip_addr, uint16_t port)
bool netHTTPs_AcceptClient (const NET_ADDR *addr)

name changed, functions not compatible
parameters *ip_addr and port are replaced with structure *addr, where
port = addr->port

ip_addr = addr->addr

uint8_t http_check_account    (const char *username, const char *password)
uint8_t netHTTPs_CheckAccount (const char *username, const char *password)

name changed, functions compatible

bool http_file_access    (uint8_t user_id, const char *fname)
bool netHTTPs_FileAccess (uint8_t user_id, const char *fname)

name changed, functions compatible

uint8_t http_get_user_id   (void)
uint8_t netHTTPs_GetUserId (void)

name changed, functions compatible

void *http_server_fopen (const char *fname)
void *netHTTPs_fopen    (const char *fname)

name changed, functions compatible

void http_server_fclose (void *file)
void netHTTPs_fclose    (void *file)

name changed, functions compatible

uint32_t http_server_fread (void *file, uint8_t *buf, uint32_t len)
uint32_t netHTTPs_fread    (void *file, uint8_t *buf, uint32_t len)

name changed, functions compatible

char *http_server_fgets (void *file, char *buf, uint32_t size)
char *netHTTPs_fgets    (void *file, char *buf, uint32_t size)

name changed, functions compatible

uint32_t http_server_ftime (const char *fname)
removed

Use netHTTPs_fstat instead.

SMTP Client

netStatus smtp_client_connect (const uint8_t *ip_addr, uint16_t port)
netStatus netSMTPc_Connect    (const NET_ADDR *addr)

name changed, functions not compatible
parameters *ip_addr and port need conversion to structure *addr
Use the following code for the conversion:
NET_ADDR4 addr4;

addr4.addr_type = NET_ADDR_IP4;

addr4.port = port;

memcpy (addr4.addr, ip_addr, NET_ADDR_IP4_LEN);
netSMTPc_Connect is thread-safe

uint32_t smtp_client_request (smtpClientRequest request, char *buf, uint32_t buflen,  uint32_t *pvar)
uint32_t netSMTPc_Process    (netSMTPc_Request  request, char *buf, uint32_t buf_len, uint32_t *pvar)

name changed, functions not compatible
enumerators smtpClientRequest and netSMTPc_Request are compatible.

void smtp_client_notify (smtpClientEvent event)
void netSMTPc_Notify    (netSMTPc_Event  event)

name changed, functions compatible
enumerators smtpClientEvent and netSMTPc_Event are compatible

bool smtp_client_accept_authentication (const uint8_t *ip_addr)
bool netSMTPc_AcceptAuthentication     (const NET_ADDR *addr)

name changed, functions not compatible
parameter *ip_addr replaced with structure *addr, where:
ip_addr = addr->addr

SNTP Client

netStatus sntp_get_time    (const uint8_t *ip_addr, net_sntp_client_cb_t cb_func)
netStatus netSNTPc_GetTime (const NET_ADDR *addr,   netSNTPc_cb_t        cb_func)

name changed, functions not compatible
parameter *ip_addr changed to structure *addr
Use the following code for the conversion:
NET_ADDR4 addr4;

addr4.addr_type = NET_ADDR_IP4;

memcpy (addr4.addr, ip_addr, NET_ADDR_IP4_LEN);
callback function changed to netSNTPc_cb_t
netSNTPc_GetTime is thread-safe

void (*net_sntp_client_cb_t)(uint32_t utc_time);
void (*netSNTPc_cb_t)       (uint32_t seconds, uint32_t seconds_fraction);

name changed, functions not compatible
parameter utc_time renamed to seconds
parameter seconds_fraction added

SNMP Agent

netStatus snmp_trap    (const uint8_t *ip_addr, uint8_t generic, uint8_t specific, const uint16_t *obj_list)
netStatus netSNMP_Trap (const NET_ADDR *addr,   uint8_t generic, uint8_t specific, const uint16_t *obj_list)

name changed, functions not compatible
parameter *ip_addr changed to structure *addr
Use the following code for the conversion:
NET_ADDR4 addr4;

addr4.addr_type = NET_ADDR_IP4;

memcpy (addr4.addr, ip_addr, NET_ADDR_IP4_LEN);
netSNMP_Trap is thread-safe

netStatus snmp_set_community   (const char *community)
netStatus netSNMP_SetCommunity (const char *community)

name changed, functions compatible
netSNMP_SetCommunity is thread-safe

Network Interfaces

netStatus arp_cache_ip   (uint32_t if_num, const uint8_t *ip_addr,  arpCacheType type)
netStatus netARP_CacheIP (uint32_t if_num, const uint8_t *ip4_addr, netARP_CacheType type)

name changed, functions compatible
enumerators arpCacheType and netARP_CacheType are compatible
netARP_CacheIP is thread-safe

netStatus arp_cache_mac   (uint32_t if_num, const uint8_t *mac_addr)
netStatus netARP_CacheMAC (uint32_t if_num, const uint8_t *mac_addr)

name changed, functions compatible
netARP_CacheMAC is thread-safe

netStatus arp_get_ip   (                 const uint8_t *mac_addr, uint8_t *ip_addr)
netStatus netARP_GetIP (uint32_t if_num, const uint8_t *mac_addr, uint8_t *ip4_addr)

name changed, functions not compatible
parameter if_num added
Use if_num=0 when replacing arp_get_ip
netARP_GetIP is thread-safe

netStatus arp_get_mac   (                 const uint8_t *ip_addr,  uint8_t *mac_addr)
netStatus netARP_GetMAC (uint32_t if_num, const uint8_t *ip4_addr, uint8_t *mac_addr)

name changed, functions not compatible
parameter if_num added
Use if_num=0 when replacing arp_get_mac
netARP_GetMAC is thread-safe

netStatus dhcp_disable    (uint32_t if_num)
netStatus netDHCP_Disable (uint32_t if_num)

name changed, functions compatible
netDHCP_Disable is thread-safe

netStatus igmp_join    (uint32_t if_num, const uint8_t *ip_addr)
netStatus netIGMP_Join (uint32_t if_num, const uint8_t *ip4_addr)

name changed, functions compatible
netIGMP_Join is thread-safe

netStatus igmp_leave    (uint32_t if_num, const uint8_t *ip_addr)
netStatus netIGMP_Leave (uint32_t if_num, const uint8_t *ip4_addr)

name changed, functions compatible
netIGMP_Leave is thread-safe

void eth_link_notify (uint32_t if_num, ethLinkEvent event)
void netETH_Notify   (uint32_t if_num, netETH_Event event, uint32_t val)

name changed, functions not compatible
parameter val added
enumerators ethLinkEvent and netETH_Event are not compatible:
- events ethLinkDown and netETH_LinkDown are equal
- multiple events ethLinkUp_xxxx are replaced by a single event netETH_LinkUp, where additional parameter val provides more information about the link

void dhcp_client_notify (uint32_t if_num, dhcpClientOption opt, const uint8_t *val, uint32_t len)
void netDHCP_Notify     (uint32_t if_num,       uint8_t option, const uint8_t *val, uint32_t len)

name changed, functions not compatible

parameter opt changed to option:

opt	option
`dhcpClientIPaddress`	`#define` `NET_DHCP_OPTION_IP_ADDRESS`
`dhcpClientNTPservers`	`#define` `NET_DHCP_OPTION_NTP_SERVERS`
`dhcpClientBootfileName`	`#define` `NET_DHCP_OPTION_BOOTFILE_NAME`

netStatus ppp_listen     (const char *username, const char *password)
netStatus netPPP_Listen  (const char *username, const char *password)

name changed, functions compatible
netPPP_Listen is thread-safe

netStatus ppp_connect    (const char *dial_num, const char *username, const char *password)
netStatus netPPP_Connect (const char *dial_num, const char *username, const char *password)

name changed, functions compatible
netPPP_Connect is thread-safe

netStatus ppp_close    (void)
netStatus netPPP_Close (void)

name changed, functions compatible
netPPP_Close is thread-safe

bool ppp_is_up     (void)
bool netPPP_LinkUp (void)

name changed, functions compatible
netPPP_LinkUp is thread-safe

netStatus slip_listen    (void)
netStatus netSLIP_Listen (void)

name changed, functions compatible
netSLIP_Listen is thread-safe

netStatus slip_connect    (const char *dial_num)
netStatus netSLIP_Connect (const char *dial_num)

name changed, functions compatible
netSLIP_Connect is thread-safe

netStatus slip_close    (void)
netStatus netSLIP_Close (void)

name changed, functions compatible
netSLIP_Close is thread-safe

bool slip_is_up     (void)
bool netSLIP_LinkUp (void)

name changed, functions compatible
netSLIP_LinkUp is thread-safe

netStatus icmp_ping    (const uint8_t *ip_addr, net_icmp_cb_t cb_func)
netStatus netPing_Echo (const NET_ADDR *addr,   netPing_cb_t  cb_func)

name changed, functions not compatible
parameter *ip_addr changed to structure *addr
Use the following code for the conversion:
NET_ADDR4 addr4;

addr4.addr_type = NET_ADDR_IP4;

memcpy (addr4.addr, ip_addr, NET_ADDR_IP4_LEN);

// addr4.port - don't care
callback function changed to netPing_cb_t
netPing_Echo is thread-safe

void (*net_icmp_cb_t)(icmpEvent     event);
void (*netPing_cb_t) (netPing_Event event);

name changed, functions compatible
enumerators icmpEvent and netPing_Event are compatible

netStatus get_host_by_name      (const char *name,                    net_dns_client_cb_t cb_func)
netStatus netDNSc_GetHostByName (const char *name, int16_t addr_type, netDNSc_cb_t        cb_func)

name changed, functions not compatible
added parameter addr_type
callback function changed to netDNSc_cb_t
netDNSc_GetHostByName is thread-safe

void (*net_dns_client_cb_t)(dnsClientEvent event, const uint8_t *ip_addr);
void (*netDNSc_cb_t)       (netDNSc_Event  event, const NET_ADDR   *addr);

name changed, functions not compatible
enumerators dnsClientEvent and netDNSc_Event are compatible
parameter *ip_addr replaced with structure *addr, where:
ip_addr = addr->addr

Network Address Conversion

const char *ip4_ntoa   (                    const uint8_t *ip4_addr)
const char *netIP_ntoa (int16_t addr_type,  const uint8_t *ip_addr, char *string_buf, uint32_t buf_len)

name changed, functions not compatible
parameters addr_type, *string_buf and buf_len added.
Use the following code for the conversion:
char ip_ascii[16];

netIP_ntoa (NET_ADDR_IP4, ip4_addr, ip_ascii, sizeof(ip_ascii));
netIP_ntoa is thread-safe

bool ip4_aton   (const char *cp,                             uint8_t *ip4_addr)
bool netIP_aton (const char *addr_string, int16_t addr_type, uint8_t *ip_addr)

name changed, functions not compatible
parameter *cp renamed to *addr_string
parameters addr_type and *ip_addr added
Use the following code for the conversion:
netIP_aton (cp, NET_ADDR_IP4, ip4_addr);
netIP_aton is thread-safe

const char *mac_ntoa    (const uint8_t *mac_addr)
const char *netMAC_ntoa (const uint8_t *mac_addr, char *string_buf, uint32_t buf_len)

name changed, functions not compatible
parameters addr_type, *string_buf and buf_len added
Use the following code for the conversion:
char mac_ascii[20];

netMAC_ntoa (mac_addr, mac_ascii, sizeof(mac_ascii));
netMAC_ntoa is thread-safe

bool mac_aton    (const char *cp,         uint8_t *mac_addr)
bool netMAC_aton (const char *mac_string, uint8_t *mac_addr)

name changed, functions compatible
parameter *cp renamed to *mac_string
netMAC_aton is thread-safe

Network Definitions

Network definitions have been changed. Refer to this table:

Network Component v5/v6	Network Component v7
IP4_ADDR_LEN	NET_ADDR_IP4_LEN
ETH_ADDR_LEN	NET_ADDR_ETH_LEN

mode	access
0	NET_ACCESS_FILE_READ
1	NET_ACCESS_FILE_WRITE
2	NET_ACCESS_DIRECTORY_CREATE and NET_ACCESS_DIRECTORY_REMOVE
3	NET_ACCESS_DIRECTORY_LIST
