File System Interface

HTTP server functions that work with a File System. More...

Functions
void *	netHTTPs_fopen (const char *fname)
	Open a file for reading on HTTP server. [interface]. More...
void	netHTTPs_fclose (void *file)
	Close a file previously open on HTTP server. [interface]. More...
uint32_t	netHTTPs_fread (void *file, uint8_t *buf, uint32_t len)
	Read block of data from a file on HTTP server. [interface]. More...
char *	netHTTPs_fgets (void *file, char *buf, uint32_t size)
	Read a string from a file on HTTP server. [interface]. More...
void	netHTTPs_fstat (const char *fname, uint32_t *fsize, uint32_t *ftime)
	Retrieve file size and last modification time. [interface]. More...

Description

HTTP server functions that work with a File System.

All File System Interface functions are located in HTTP_Server_FS.c, which will be automatically added to your project's Network folder. The file is preconfigured for the , so no modifications are required. If you wish to use another type of file system, you need to override these weak procedures with your required functionality.

The following functions are implemented in this module:

• netHTTPs_fopen - open a file for reading or writing.
• netHTTPs_fclose - close a file that was previously opened.
• netHTTPs_fread - read a block of data from a file.
• netHTTPs_fgets - read a string from a file.
• netHTTPs_fstat - retrieve size and last modification time of a file.

Web on SD Card

The Web Server supports storing of web pages on a SD Card, which is attached to the embedded system. This is useful if you want to update or change the web content remotely. In this case, the File System Component is used, which must be configured for a target device Memory Card Drive.

You can use any of the update methods to change the content of web pages:

• HTTP File Upload: The web files are uploaded using a web browser. The HTTP server must be configured for the file upload.
• FTP Server: The web files are uploaded and managed with a FTP Client.

Web Update

When the Web Server tries to open a web page, it searches the external file system first. This is usually an externally attached SD Card. As the Compact Web Server is not configured to use an external file system, it searches only the internal ROM file system.

If the requested file is found on the SD Card, the content is sent to the web client. If the requested file does not exist on the SD Card, it is opened from the internal ROM file system and transferred to the web client. This concept allows you to replace easily the web content from the internal ROM file system with a new one stored on the external SD Card.

You should carefully update the cgi and cgx script files, as changes in the script files usually need to be reflected in the application code, which is in the module HTTP_Server_CGI.c. If you have made a mistake in the uploaded script files, the web pages might not be accessible any more.

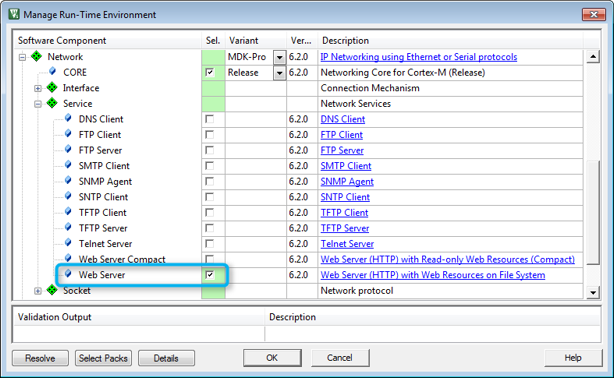

To enable the SD-Card File System, you need the select the Web Server in the Manage Run-Time Environment window under Network:Service:

Function Documentation

netHTTPs_fclose()

void netHTTPs_fclose

(

void *

file

)

Close a file previously open on HTTP server. [interface].

Parameters

[in]

file

pointer to the file to close.

Returns

none.

The function netHTTPs_fclose closes the file identified by the file stream pointer in the function argument.

The function interfaces to the File System Component and will be called by the Network Component automatically. If another file system will be used, refer to the reference implementation in the HTTP_Server_FS.c module.

netHTTPs_fgets()

char * netHTTPs_fgets	(	void *	file,
		char *	buf,
		uint32_t	size
	)

Read a string from a file on HTTP server. [interface].

Parameters

[in]	file	pointer to the file to read from.
[out]	buf	output buffer to write data to.
[in]	size	size of output buffer.

Returns

status information:

• Pointer to string on success.
• NULL in case of an error.

The function netHTTPs_fgets reads up to size bytes from the file identified by the file stream pointer in the function argument.

The argument buf is a pointer to the buffer which stores the data.

The function interfaces to the File System Component and will be called by the Network Component automatically. If another file system will be used, refer to the reference implementation in the HTTP_Server_FS.c module.

Note

The function is used by the script interpreter.

netHTTPs_fopen()

void * netHTTPs_fopen

(

const char *

fname

)

Open a file for reading on HTTP server. [interface].

Parameters

[in]

fname

name of the file to open.

Returns

status information:

• Pointer to an open file.
• NULL in case of an error.

The function netHTTPs_fopen opens a file for reading.

The argument fname specifies the name of the file to open. If the file does not exist, the function fails and returns NULL. fname is percent-encoded. This means that all reserved characters in a file name are escaped.

The function interfaces to the File System Component and will be called by the Network Component automatically. If another file system will be used, refer to the reference implementation in the HTTP_Server_FS.c module.

netHTTPs_fread()

uint32_t netHTTPs_fread	(	void *	file,
		uint8_t *	buf,
		uint32_t	len
	)

Read block of data from a file on HTTP server. [interface].

Parameters

[in]	file	pointer to the file to read from.
[out]	buf	block of memory to write data to.
[in]	len	length of data to read in bytes.

Returns

number of bytes successfully read.

The function netHTTPs_fread reads len bytes from the file identified by the file stream pointer in the function argument.

The argument buf is a pointer to the buffer where the function stores the read data.

The function interfaces to the File System Component and will be called by the Network Component automatically. If another file system will be used, refer to the reference implementation in the HTTP_Server_FS.c module.

Note

The function must read len bytes. The Web Server stops reading and closes the file if the return value is less than len bytes.

netHTTPs_fstat()

void netHTTPs_fstat	(	const char *	fname,
		uint32_t *	fsize,
		uint32_t *	ftime
	)

Retrieve file size and last modification time. [interface].

Parameters

[in]	fname	name of the file.
[out]	fsize	file size in bytes.
[out]	ftime	created or last modified time.

Returns

none.

The function netHTTPs_fstat reads the size of a file and the time when the file was last modified.

The argument fname identifies the file for which the information is to be retrieved.

The function interfaces to the File System Component and will be called by the Network Component automatically. If another file system will be used, refer to the reference implementation in the HTTP_Server_FS.c module.
