ADC: Audio Device Class

Implement application specific behavior of an Audio Device Class (ADC) USB Device. More...

Content
	User API
	User API reference of the Audio Device Class.
	Configuration
	Configuration of the USB Device ADC Class in µVision.

Description

Implement application specific behavior of an Audio Device Class (ADC) USB Device.

Use the following class specific functions to customize the functionality of an Audio Device Class (ADC) Device. Adapt these functions in the file USBD_User_ADC_Audio_n.c.

Refer to:

• ADC: Audio Device Class for an overview of the ADC class.
• USB Device Audio for an example project that uses the ADC class.

The USB Component allows multiple instances of the ADC class. This feature is used to create USB Composite Devices. Each ADC class instance has a separate files and interface functions:

• A configuration file USBD_Config_ADC_n.h.
• An application-specific user source code file, which can be implemented with the USBD_User_ADC_Audio_n.c.
• Functions that start with the prefix USBD_ADCn_ are available for each instance of an ADC class.

This documentation uses n as a placeholder for the instance number 0 - 3. Most applications only require one instance of an ADC class. For the first ADC class instance the instance number is 0:

• USBD_Config_ADC_0.h
• USBD_User_ADC_Audio_0.c
• The function prefix is USBD_ADC0_

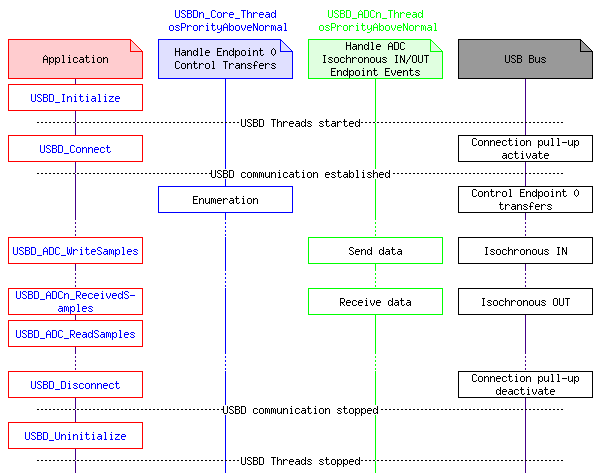

Software Structure

The handling for the ADC class endpoint events is implemented in USBD_ADCn_Thread which is started by USBD_Initialize. Each instance of an ADC class runs an instance of the USBD_ADCn_Thread. This thread handles the Isochronous IN/OUT Endpoints of the USB ADC Device.

Implementation

To create an USB Device with an ADC class:

• Set the required number for USB:Device:ADC class instances during the RTE Component Selection.
• Set the parameters in the configuration file USBD_Config_ADC_n.h.
• Implement the application specific behavior using these template.

User Code Templates
There is one user code template available that helps to add support for an ADC device:

1. USBD_User_ADC_Audio.c is a code template for the application specific functionality of a USB ADC Device with Audio Interface.

User Code Template USBD_User_ADC_Audio.c

The following source code can be used to implement the application specific behavior of an USB ADC Device with Audio Interface.

/*------------------------------------------------------------------------------
 * MDK Middleware - Component ::USB:Device:ADC
 * Copyright (c) 2004-2020 Arm Limited (or its affiliates). All rights reserved.
 *------------------------------------------------------------------------------
 * Name:    USBD_User_ADC_Audio_n.c
 * Purpose: USB Device Audio Device Class (ADC) User module
 *          Template for USB Audio Device Class (ADC) Sound Card
 * Rev.:    V6.3.8
 *----------------------------------------------------------------------------*/

#include <stdint.h>
#include <stdbool.h>
#include <string.h>
#include "rl_usb.h"

#include "USBD_Config_ADC_n.h"

#include "Board_Audio.h"

// Imported settings from USBD_Config_ADC_n.h file
#define  PLAYBACK_AVAILABLE                  (USBD_ADCn_EP_ISO_OUT_EN != 0U)
#define  PLAYBACK_CHANNELS                   (USBD_ADCn_OUT_CH_NUM)
#define  PLAYBACK_FREQ                       (USBD_ADCn_OUT_TSAM_FREQ)
#define  PLAYBACK_RESOLUTION                 (USBD_ADCn_OUT_BBITRESOLUTION)
#if     (USBD_ADCn_OUT_BSUBFRAMESIZE >= 3U)
#define  PLAYBACK_SAMPLE_SIZE                (4U)
#else
#define  PLAYBACK_SAMPLE_SIZE                (USBD_ADCn_OUT_BSUBFRAMESIZE)
#endif
#if     (PLAYBACK_CHANNELS > 1U)
#define  PLAYBACK_FORMAT                     (PLAYBACK_SAMPLE_SIZE | ((PLAYBACK_CHANNELS - 1U) << 7))
#else
#define  PLAYBACK_FORMAT                     (PLAYBACK_SAMPLE_SIZE)
#endif
#define  PLAYBACK_USB_BUFFER_SAMPLES         (USBD_ADCn_OUT_BUF_SIZE)
#define  PLAYBACK_AUDIO_BUFFER_SAMPLES       (PLAYBACK_USB_BUFFER_SAMPLES / 8U)
#define  PLAYBACK_AUDIO_BUFFER_SIZE         ((PLAYBACK_AUDIO_BUFFER_SAMPLES + PLAYBACK_CHANNELS) * PLAYBACK_SAMPLE_SIZE)

#define  RECORD_AVAILABLE                    (USBD_ADCn_EP_ISO_IN_EN != 0U)
#define  RECORD_CHANNELS                     (USBD_ADCn_IN_CH_NUM)
#define  RECORD_FREQ                         (USBD_ADCn_IN_TSAM_FREQ)
#if     (USBD_ADCn_IN_BSUBFRAMESIZE >= 3U)
#define  RECORD_SAMPLE_SIZE                  (4U)
#else
#define  RECORD_SAMPLE_SIZE                  (USBD_ADCn_IN_BSUBFRAMESIZE)
#endif
#if     (RECORD_CHANNELS > 1U)
#define  RECORD_FORMAT                       (RECORD_SAMPLE_SIZE | ((RECORD_CHANNELS - 1U) << 7))
#else
#define  RECORD_FORMAT                       (RECORD_SAMPLE_SIZE)
#endif
#define  RECORD_USB_BUFFER_SAMPLES           (USBD_ADCn_IN_BUF_SIZE)
#define  RECORD_AUDIO_BUFFER_SAMPLES         (RECORD_USB_BUFFER_SAMPLES / 8U)
#define  RECORD_AUDIO_BUFFER_SIZE           ((RECORD_AUDIO_BUFFER_SAMPLES + RECORD_CHANNELS) * RECORD_SAMPLE_SIZE)

// Supported configuration check
#if     (PLAYBACK_AVAILABLE)
#if    ((PLAYBACK_CHANNELS == 0U) || (PLAYBACK_CHANNELS > 2U))
#error   Playback channel configuration mono or stereo supported!
#endif
#endif
#if     (RECORD_AVAILABLE)
#if    ((RECORD_CHANNELS == 0U) || (RECORD_CHANNELS > 2U))
#error   Recording channel configuration mono or stereo supported!
#endif
#endif


#if     (PLAYBACK_AVAILABLE)
static   uint8_t  play_idx = 0U;
static   uint32_t play_num = 0U;
static   uint8_t  play_buf [2][PLAYBACK_AUDIO_BUFFER_SIZE] __attribute__((aligned(4U)));
#endif

#if     (RECORD_AVAILABLE)
static   uint8_t  rec_idx = 0U;
static   uint32_t rec_num = 0U;
static   uint8_t  rec_buf [2][RECORD_AUDIO_BUFFER_SIZE]    __attribute__((aligned(4U)));
#endif

#if ((PLAYBACK_AVAILABLE) && (PLAYBACK_RESOLUTION == 24U))
static void Repack_shl_8 (uint8_t *ptr, uint32_t num) {
  uint32_t i;

  for (i = 0; i < num; i ++) {
    *(__packed uint32_t *)ptr = ((*(__packed uint32_t *)ptr) << 8U) & 0xFFFFFF00U;
    ptr += 4U;
  }
}
#endif

// Audio Events Handling Callback function.
// \param[in]   event  notification mask
static void AudioCallback (uint32_t event) {
  uint32_t samples_available;
#if (PLAYBACK_AVAILABLE)
   int32_t num;
#endif

  // Restart new audio reception and new transmission first
#if (RECORD_AVAILABLE)
  if (event & AUDIO_EVENT_RECEIVE_COMPLETE) {
    // Start new audio data reception (double buffering)
    (void)Audio_ReceiveData ((void *)(&rec_buf[rec_idx ^ 1U][0U]), RECORD_AUDIO_BUFFER_SAMPLES);
  }
#endif
#if (PLAYBACK_AVAILABLE)
  if ((event & AUDIO_EVENT_SEND_COMPLETE) && (play_num != 0U)) {
    // Start new audio data transmission (double buffering)
    (void)Audio_SendData ((void *)(&play_buf[play_idx][0U]), (uint32_t)(play_num));
    play_idx ^= 1U;                     // Change active buffer index
  }
#endif

#if (RECORD_AVAILABLE)
  // Handling of recording
  if (event & AUDIO_EVENT_RECEIVE_COMPLETE) {
    // Compensate frequency difference between USB and Audio Interface
    // by adding or removing 1 sample for mono or 2 samples for stereo
    samples_available = USBD_ADC_WrittenSamplesPending (nU) + rec_num;
    rec_num = RECORD_AUDIO_BUFFER_SAMPLES;
    if (samples_available <= (2U * RECORD_AUDIO_BUFFER_SAMPLES)) {
      // Add (repeat last) 1 sample for mono or 2 samples for stereo
      // to send to USB if USB is faster than Audio Interface
      memcpy((void *)(&rec_buf[rec_idx][ RECORD_AUDIO_BUFFER_SAMPLES                    * RECORD_SAMPLE_SIZE]),
             (void *)(&rec_buf[rec_idx][(RECORD_AUDIO_BUFFER_SAMPLES - RECORD_CHANNELS) * RECORD_SAMPLE_SIZE]),
              RECORD_CHANNELS * RECORD_SAMPLE_SIZE);
      rec_num += RECORD_CHANNELS;
    } else if (samples_available >= (RECORD_USB_BUFFER_SAMPLES - (2U * RECORD_AUDIO_BUFFER_SAMPLES))) {
      // Remove 1 sample for mono or 2 samples for stereo
      // to send to USB if USB is slower than Audio Interface
      rec_num -= RECORD_CHANNELS;
    }

    // Send last received buffer of samples to USB
    (void)USBD_ADC_WriteSamples (nU, (void *)(&rec_buf[rec_idx][0U]), (int32_t)(rec_num));
    rec_idx ^= 1U;                      // Change active buffer index
  }
#endif

#if (PLAYBACK_AVAILABLE)
  // Handling of playback
  if ((event & AUDIO_EVENT_SEND_COMPLETE) && (play_num != 0U)) {
    // Read next buffer of samples from USB
    num = USBD_ADC_ReadSamples (nU, (void *)(&play_buf[play_idx][0U]), PLAYBACK_AUDIO_BUFFER_SAMPLES);
    if (num > 0) {
      play_num = (uint32_t)(num);
    } else {
      play_num = 0U;
    }
#if (PLAYBACK_RESOLUTION == 24U)
    // If samples need to be repacked form relevant 24-bit to 32-bit
    // for 32-bit Audio Interface sending (playing)
    Repack_shl_8 (&play_buf[play_idx][0U], play_num);
#endif

    // Compensate frequency difference between USB and Audio Interface
    // by adding or removing 1 sample for mono or 2 samples for stereo
    samples_available = USBD_ADC_ReceivedSamplesAvailable (nU) + play_num;
    if (samples_available == 0U) {
      // Stop playback audio stream
      (void)Audio_Stop  (AUDIO_STREAM_OUT);
    } else if (samples_available <= (2U * PLAYBACK_AUDIO_BUFFER_SAMPLES)) {
      // Add (repeat last) 1 sample for mono or 2 samples for stereo
      // to send to Audio Interface if USB is slower than Audio Interface
      memcpy((void *)(&play_buf[play_idx][ play_num                      * PLAYBACK_SAMPLE_SIZE]),
             (void *)(&play_buf[play_idx][(play_num - PLAYBACK_CHANNELS) * PLAYBACK_SAMPLE_SIZE]),
              PLAYBACK_CHANNELS * PLAYBACK_SAMPLE_SIZE);
      play_num += PLAYBACK_CHANNELS;
    } else if (samples_available >= (PLAYBACK_USB_BUFFER_SAMPLES - (2U * PLAYBACK_AUDIO_BUFFER_SAMPLES))) {
      // Remove 1 sample for mono or 2 samples for stereo
      // to send to Audio Interface if USB is faster than Audio Interface
      play_num -= PLAYBACK_CHANNELS;
    }
  }
#endif
}

#if (PLAYBACK_AVAILABLE)
// Callback function called when data in USB buffer for speaker samples reaches half-full from empty
void USBD_ADCn_ReceivedSamples (void) {
  int32_t num;

  // Read initial data for playback
  num = USBD_ADC_ReadSamples (nU, (void *)(&play_buf[0U][0U]), PLAYBACK_AUDIO_BUFFER_SAMPLES);
  if (num > 0) {
    play_num = (uint32_t)(num);
  } else {
    play_num = 0U;
  }

#if (PLAYBACK_RESOLUTION == 24U)
  // If samples need to be repacked form relevant 24-bit to 32-bit
  // for 32-bit Audio Interface sending (playing)
  Repack_shl_8 (&play_buf[0U][0U], play_num);
#endif
  // Start initial audio data transmission (play)
  (void)Audio_SendData ((void *)(&play_buf[0U][0U]), play_num);

  // Start playback audio stream
  (void)Audio_Start (AUDIO_STREAM_OUT);

  // Read next data for playback from Audio callback
  play_idx = 1U;
  num = USBD_ADC_ReadSamples (nU, (void *)(&play_buf[1U][0U]), PLAYBACK_AUDIO_BUFFER_SAMPLES);
  if (num > 0) {
    play_num = (uint32_t)(num);
  } else {
    play_num = 0U;
  }

#if (PLAYBACK_RESOLUTION == 24U)
  // If samples need to be repacked form relevant 24-bit to 32-bit
  // for 32-bit Audio Interface sending (playing)
  Repack_shl_8 (&play_buf[1U][0U], play_num);
#endif
}
#endif

// Callback function called during USBD_Initialize to initialize the USB ADC class instance.
void USBD_ADCn_Initialize (void) {

  // Initialize Audio Interface driver
  (void)Audio_Initialize    (AudioCallback);

#if (PLAYBACK_AVAILABLE)
  // Set stereo speakers volume range to 0 to 100 with step 1, initially positioned at 50 %
  (void)USBD_ADC_SpeakerSetVolumeRange (nU, 0U, 0U, 100U, 1U, 50U);

  // Initialize Audio Interface for speakers according to USBD_Config_ADC_0.h file settings, not muted and volume at 50 %
  (void)Audio_SetDataFormat (AUDIO_STREAM_OUT, PLAYBACK_FORMAT);
  (void)Audio_SetFrequency  (AUDIO_STREAM_OUT, PLAYBACK_FREQ);
  (void)Audio_SetMute       (AUDIO_STREAM_OUT, AUDIO_CHANNEL_MASTER, (bool)false);
  (void)Audio_SetVolume     (AUDIO_STREAM_OUT, AUDIO_CHANNEL_MASTER, 50U);
#endif

#if (RECORD_AVAILABLE)
  // Set microphone volume range to 0 to 100 with step 1, initially positioned at 50 %
  (void)USBD_ADC_MicrophoneSetVolumeRange (nU, 0U, 0U, 100U, 1U, 50U);

  // Initialize Audio Interface for microphone according to USBD_Config_ADC_0.h file settings, not muted and volume at 50 %
  (void)Audio_SetDataFormat (AUDIO_STREAM_IN, RECORD_FORMAT);
  (void)Audio_SetFrequency  (AUDIO_STREAM_IN, RECORD_FREQ);
  (void)Audio_SetMute       (AUDIO_STREAM_IN, AUDIO_CHANNEL_MASTER, (bool)false);
  (void)Audio_SetVolume     (AUDIO_STREAM_IN, AUDIO_CHANNEL_MASTER, 50U);
#endif
}

// Callback function called during USBD_Uninitialize to de-initialize the USB ADC class instance.
void USBD_ADCn_Uninitialize (void) {
  (void)Audio_Uninitialize ();
}

#if (PLAYBACK_AVAILABLE)
// Callback function called when play stopped.
void USBD_ADCn_PlayStop (void) {
  (void)Audio_Stop  (AUDIO_STREAM_OUT); // Stop playback audio stream
}

// Callback function called when speaker mute setting changed.
// \param[in]     ch            channel index.
//                                - value 0: master channel
//                                - value 1: left speaker (in stereo mode)
//                                - value 2: right speaker (in stereo mode)
// \param[in]     on            current mute setting.
//                                - false :  mute off
//                                - true :   mute on
void USBD_ADCn_SetSpeakerMute (uint8_t ch, bool on) {
  (void)Audio_SetMute (AUDIO_STREAM_OUT, ch, on);
}

// Callback function called when speaker volume setting changed.
// \param[in]     ch            channel index.
//                                - value 0: master channel
//                                - value 1: left speaker (in stereo mode)
//                                - value 2: right speaker (in stereo mode)
// \param[in]     vol           current volume setting.
void USBD_ADCn_SetSpeakerVolume (uint8_t ch, uint16_t vol) {
  (void)Audio_SetVolume (AUDIO_STREAM_OUT, ch, (uint8_t)(vol));
}
#endif

#if (RECORD_AVAILABLE)
// Callback function called when recording started.
void USBD_ADCn_RecordStart (void) {
  rec_idx = 0U;                         // Current receiving buffer index is 0
  rec_num = RECORD_AUDIO_BUFFER_SAMPLES;// Current receiving length
  // Start initial audio data reception (record)
  (void)Audio_ReceiveData (&rec_buf[0U][0U], RECORD_AUDIO_BUFFER_SAMPLES);
  (void)Audio_Start (AUDIO_STREAM_IN);  // Start recording audio stream
}

// Callback function called when recording stopped.
void USBD_ADCn_RecordStop (void) {
  (void)Audio_Stop  (AUDIO_STREAM_IN);  // Stop recording audio stream
}

// Callback function called when microphone mute setting changed.
// \param[in]     ch            channel index.
//                                - value 0: master channel
//                                - value 1: left microphone (in stereo mode)
//                                - value 2: right microphone (in stereo mode)
// \param[in]     on            current mute setting.
//                                - false :  mute off
//                                - true :   mute on
void USBD_ADCn_SetMicrophoneMute (uint8_t ch, bool on) {
  (void)Audio_SetMute (AUDIO_STREAM_IN, ch, on);
}

// Callback function called when microphone volume setting changed.
// \param[in]     ch            channel index.
//                                - value 0: master channel
//                                - value 1: left microphone (in stereo mode)
//                                - value 2: right microphone (in stereo mode)
// \param[in]     vol           current volume setting.
void USBD_ADCn_SetMicrophoneVolume (uint8_t ch, uint16_t vol) {
  (void)Audio_SetVolume (AUDIO_STREAM_IN, ch, (uint8_t)(vol));
}
#endif
