CDC: Communication Device Class (NCM)

Implement application specific behavior of a Communication Device Class (CDC) USB Device using the sub-class Network Control Model (NCM) for Ethernet-over-USB applications. More...

Content
	User API
	User API reference of the Communication Device Class (NCM).
	Configuration
	Configuration of the USB Device CDC (NCM) Class in µVision.

Description

Implement application specific behavior of a Communication Device Class (CDC) USB Device using the sub-class Network Control Model (NCM) for Ethernet-over-USB applications.

The ability to connect Ethernet devices via USB ports is known as Ethernet-over-USB. Various industry protocols are available to achieve this. One of the most advanced protocols is the CDC (NCM) class which is supported by the USB Component.

The usbnet Kernel module in Linux hosts enables you to attach a USB Device to the host to emulate an Ethernet device. There is no native Ethernet-over-USB support in Windows.

Refer to:

• CDC: Communication Device Class for an overview of the CDC class.
• Ethernet-over-USB (for Linux hosts) example project.

The USB Component allows multiple instances of the CDC class. This feature is used to create USB Composite Devices. Each CDC class instance has a separate files and interface functions:

• A CDC configuration file USBD_Config_CDC_n.h.
• An application-specific user source code file, which can be implemented with the USBD_User_CDC_NCM_n.c, or USBD_User_CDC_NCM_ETH_n.c.
• Functions that start with the prefix USBD_CDCn_NCM are available for each instance of a CDC NCM class.

This documentation uses n as a placeholder for the instance number 0 - 7. Most applications only require one instance of a CDC NCM class. For the first CDC NCM class instance the instance number is 0:

• USBD_Config_CDC_0.h
• USBD_User_CDC_NCM_0.c
• The function prefix is USBD_CDC0_NCM

Descriptor Requirements The following descriptors are required in an USB CDC NCM Device:

• Standard Device Descriptor
• Standard Configuration Descriptor
• Interface Association Descriptor
• CDC Header Functional Descriptor
• CDC Union Functional Descriptor
• CDC Ethernet Networking Functional Descriptor
• NCM Functional Descriptor
• Standard Interface Descriptor for the CDC Class communication interface
• Standard Endpoint Descriptor for Interrupt IN endpoint
• Standard Interface Descriptor for the CDC Class data interface
• Standard Endpoint Descriptors for Bulk IN and Bulk OUT endpoints

The necessary descriptors are automatically generated by the USB Middleware Component. The page USB Descriptors provides more information on the topic.

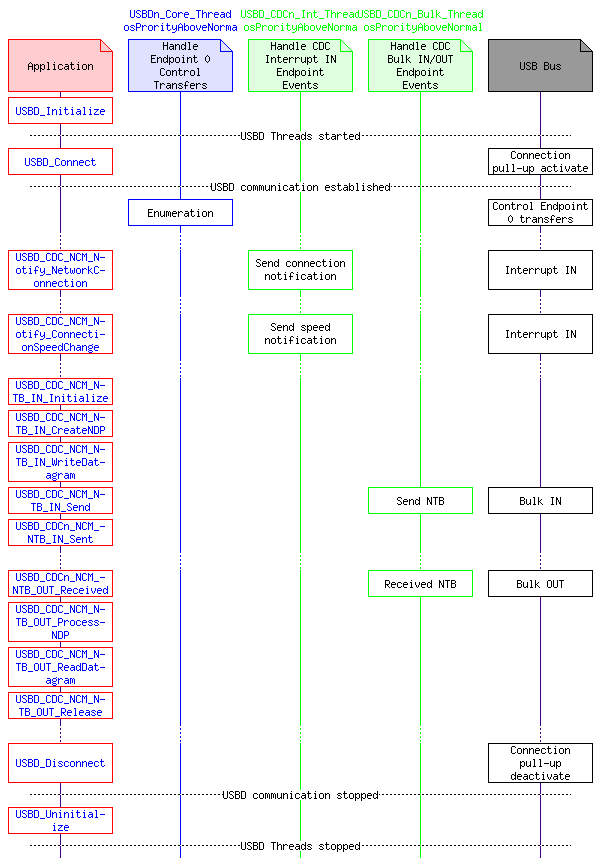

Software Structure

The handling for the CDC class endpoint events is implemented in USBD_CDCn_Int_Thread and USBD_CDCn_Bulk_Thread which are started by USBD_Initialize. Each instance of a CDC class runs an instance of USBD_CDCn_Int_Thread and USBD_CDCn_Bulk_Thread.

The thread USBD_CDCn_Int_Thread handles Interrupt IN Endpoint whereas the USBD_CDCn_Bulk_Thread handles the Bulk IN and Bulk OUT Endpoints.

Implementation

To create an USB Device with a CDC NCM class:

• Set the required number for USB:Device:CDC class instances during the RTE Component Selection.
• Set the parameters in the configuration file USBD_Config_CDC_n.h.
• Implement the application specific behavior using this template or
• Use the pre-built template file for Ethernet-over-USB.

User Code Template USBD_User_CDC_NCM.c

The following source code contains all the required callback functions and can be used to implement the application specific behavior of a USB CDC (NCM) Device.

/*------------------------------------------------------------------------------
 * MDK Middleware - Component ::USB:Device:CDC
 * Copyright (c) 2004-2020 Arm Limited (or its affiliates). All rights reserved.
 *------------------------------------------------------------------------------
 * Name:    USBD_User_CDC_NCM_n.c
 * Purpose: USB Device Communication Device Class (CDC)
 *          Network Control Model (NCM) User module
 * Rev.:    V1.0.6
 *----------------------------------------------------------------------------*/

#include <stdio.h>
#include <string.h>

#include "rl_usb.h"

#include "USBD_Config_CDC_n.h"

#define USB_CDC_NUM             n       /* USB CDC Instance number */

#define MAX_IN_DATAGRAMS        10

static const wchar_t  *wsMacAddress = USBD_CDCn_NCM_MAC_ADDRESS;
static       uint8_t     MacAddress[6];

static uint16_t LinkState;
static uint32_t LinkSpeed;

static struct {
  uint32_t ntb_input_size;
  uint16_t ntb_format;
  uint16_t max_datagram_size;
  uint16_t crc_mode;
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x02) != 0)
  uint8_t  net_address[6];
#endif
#if (USBD_CDCn_NCM_W_NUMBER_MC_FILTERS != 0)
  uint8_t  mc_filters[6*(USBD_CDCn_NCM_W_NUMBER_MC_FILTERS & 0x7FFF)];
#endif
#if (USBD_CDCn_NCM_B_NUMBER_POWER_FILTERS != 0)
  uint8_t  power_filter_active[(USBD_CDCn_NCM_B_NUMBER_POWER_FILTERS + 7)/8];
#endif
  uint16_t packet_filter_bitmap;
#if (USBD_CDCn_NCM_BM_ETHERNET_STATISTICS != 0)
  uint32_t eth_statistics[29];
#endif
} NCM_State;

static uint32_t FrameIN_Size;
static uint8_t  FrameIN [USBD_CDCn_NCM_W_MAX_SEGMENT_SIZE];
static uint8_t  FrameOUT[USBD_CDCn_NCM_W_MAX_SEGMENT_SIZE];

#ifdef USB_CMSIS_RTOS2
static void Connection_Thread (void *arg);
static void DataIN_Thread     (void *arg);
static void DataOUT_Thread    (void *arg);

#ifdef USB_CMSIS_RTOS2_RTX5
static osRtxThread_t        connection_thread_cb_mem           __SECTION(.bss.os.thread.cb);
static uint64_t             connection_thread_stack_mem[512/8] __SECTION(.bss.os.thread.stack);
static osRtxThread_t        data_in_thread_cb_mem              __SECTION(.bss.os.thread.cb);
static uint64_t             data_in_thread_stack_mem   [512/8] __SECTION(.bss.os.thread.stack);
static osRtxThread_t        data_out_thread_cb_mem             __SECTION(.bss.os.thread.cb);
static uint64_t             data_out_thread_stack_mem  [512/8] __SECTION(.bss.os.thread.stack);
#endif

static const osThreadAttr_t connection_thread_attr = {
  "Connection_Thread",
  0U,
#ifdef USB_CMSIS_RTOS2_RTX5
 &connection_thread_cb_mem,
  sizeof(osRtxThread_t),
 &connection_thread_stack_mem[0],
#else
  NULL,
  0U,
  NULL,
#endif
  512U,
  osPriorityNormal,
  0U,
  0U
};

static const osThreadAttr_t data_in_thread_attr = {
  "DataIN_Thread",
  0U,
#ifdef USB_CMSIS_RTOS2_RTX5
 &data_in_thread_cb_mem,
  sizeof(osRtxThread_t),
 &data_in_thread_stack_mem[0],
#else
  NULL,
  0U,
  NULL,
#endif
  512U,
  osPriorityNormal,
  0U,
  0U
};

static const osThreadAttr_t data_out_thread_attr = {
  "DataOUT_Thread",
  0U,
#ifdef USB_CMSIS_RTOS2_RTX5
 &data_out_thread_cb_mem,
  sizeof(osRtxThread_t),
 &data_out_thread_stack_mem[0],
#else
  NULL,
  0U,
  NULL,
#endif
  512U,
  osPriorityNormal,
  0U,
  0U
};
#else
static void Connection_Thread (void const *arg);
static void DataIN_Thread     (void const *arg);
static void DataOUT_Thread    (void const *arg);

extern const osThreadDef_t os_thread_def_Connection_Thread;
osThreadDef(Connection_Thread, osPriorityNormal, 1, NULL);
extern const osThreadDef_t os_thread_def_DataIN_Thread;
osThreadDef(DataIN_Thread,     osPriorityNormal, 1, NULL);
extern const osThreadDef_t os_thread_def_DataOUT_Thread;
osThreadDef(DataOUT_Thread,    osPriorityNormal, 1, NULL);
#endif

static void *Connection_ThreadId;
static void *DataIN_ThreadId;
static void *DataOUT_ThreadId;


// MAC Address conversion from wide string
// \param[in]   wstr    Pointer to wide string.
// \param[out]  addr    Pointer to address.
static void MAC_wstr_to_addr (const wchar_t *wstr, uint8_t *addr) {
  uint8_t  c;
  uint8_t  n;
  uint32_t i;

  for (i = 0U; i < 12U; i++) {
    c = (uint8_t)wstr[i];
    if        ((c >= '0') && (c <= '9')) {
      n = c - '0';
    } else if ((c >= 'A') && (c <= 'F')) {
      n = c - ('A' + 10U);
    } else if ((c >= 'a') && (c <= 'f')) {
      n = c - ('a' + 10U);
    } else {
      n = 0U;
    }
    if ((i & 1U) != 0U) {
      addr[i>>1] |= n;
    } else {
      addr[i>>1]  = (uint8_t)((uint32_t)n << 4);
    }
  }
}


// Called during USBD_Initialize to initialize the USB CDC class instance (NCM).
void USBD_CDCn_NCM_Initialize (void) {
  // Add code for initialization

  MAC_wstr_to_addr(wsMacAddress, MacAddress);

  memset(&NCM_State, 0, sizeof(NCM_State));
  NCM_State.ntb_input_size = USBD_CDCn_NCM_DW_NTB_IN_MAX_SIZE;
  NCM_State.max_datagram_size = USBD_CDCn_NCM_W_MAX_SEGMENT_SIZE;
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x02) != 0)
  memcpy(NCM_State.net_address, MacAddress, 6);
#endif
  NCM_State.packet_filter_bitmap = 0x0CU;

  LinkState = 0U;
  LinkSpeed = 0U;

  FrameIN_Size = 0U;
  memset(FrameIN, 0, sizeof(FrameIN));

  // Create Threads
#ifdef USB_CMSIS_RTOS2
  Connection_ThreadId = osThreadNew(Connection_Thread, NULL, &connection_thread_attr);
  DataIN_ThreadId     = osThreadNew(DataIN_Thread,     NULL, &data_in_thread_attr);
  DataOUT_ThreadId    = osThreadNew(DataOUT_Thread,    NULL, &data_out_thread_attr);
#else
  Connection_ThreadId = osThreadCreate(osThread(Connection_Thread), NULL);
  DataIN_ThreadId     = osThreadCreate(osThread(DataIN_Thread),     NULL);
  DataOUT_ThreadId    = osThreadCreate(osThread(DataOUT_Thread),    NULL);
#endif
}


// Called during USBD_Uninitialize to de-initialize the USB CDC class instance (NCM).
void USBD_CDCn_NCM_Uninitialize (void) {
  // Add code for de-initialization
  (void)osThreadTerminate(Connection_ThreadId);
  (void)osThreadTerminate(DataIN_ThreadId);
  (void)osThreadTerminate(DataOUT_ThreadId);
}


// Called upon USB Bus Reset Event.
void USBD_CDCn_NCM_Reset (void) {
  // Add code for reset
}


// Called when USB Host changes data interface from alternate 0 to alternate 1 (activates data interface).
void USBD_CDCn_NCM_Start (void) {
  // Add code for data interface activation
#ifdef USB_CMSIS_RTOS2
  (void)osThreadFlagsSet(Connection_ThreadId, 1U);
  (void)osThreadFlagsSet(DataIN_ThreadId,     1U);
#else
  (void)osSignalSet(Connection_ThreadId, 1U);
  (void)osSignalSet(DataIN_ThreadId,     1U);
#endif
}


// Called when USB Host changes data interface from alternate 1 to alternate 0 (de-activates data interface).
void USBD_CDCn_NCM_Stop (void) {
  // Add code for data interface de-activation
  // Explained in ncm10.pdf document from www.usb.org in paragraph 7.2

  FrameIN_Size = 0U;
#ifdef USB_CMSIS_RTOS
  osSignalClear(DataIN_ThreadId, 1U);
#endif

  memset(&NCM_State, 0, sizeof(NCM_State));
  NCM_State.ntb_input_size = USBD_CDCn_NCM_DW_NTB_IN_MAX_SIZE;
  NCM_State.max_datagram_size = USBD_CDCn_NCM_W_MAX_SEGMENT_SIZE;
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x02) != 0)
  memcpy(NCM_State.net_address, MacAddress, 6);
#endif
  NCM_State.packet_filter_bitmap = 0x0CU;
}


// Called upon USB Host request to set the Ethernet device multicast filters.
// \param[in]   addr_list            Pointer to list of 48-bit Multicast addresses.
// \param[in]   num_of_filters       Number of filters.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_SetEthernetMulticastFilters (const uint8_t *addr_list, uint16_t num_of_filters) {
#if (USBD_CDCn_NCM_W_NUMBER_MC_FILTERS != 0)
  if (num_of_filters > (USBD_CDCn_NCM_W_NUMBER_MC_FILTERS & 0x7FFF)) { return false; }

  // Add code for handling request

  memcpy(NCM_State.mc_filters, addr_list, num_of_filters * 6);

  return true;
#else
  (void)addr_list;
  (void)num_of_filters;
  return false;
#endif
}


// Called upon USB Host request to set up the specified Ethernet power management pattern filter.
// \param[in]   filter_number        Filter number.
// \param[in]   pattern_filter       Power management pattern filter structure.
// \param[in]   pattern_filter_size  Size of pattern filter structure.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_SetEthernetPowerManagementPatternFilter (uint16_t filter_number, const uint8_t *pattern_filter, uint16_t pattern_filter_size) {
#if (USBD_CDCn_NCM_B_NUMBER_POWER_FILTERS != 0)
  if (filter_number >= USBD_CDCn_NCM_B_NUMBER_POWER_FILTERS) { return false; }

  // Add code for handling request

  NCM_State.power_filter_active[filter_number / 8] |= 1U << (filter_number % 8);

  return true;
#else
  (void)filter_number;
  (void)pattern_filter;
  (void)pattern_filter_size;
  return false;
#endif
}


// Called upon USB Host request to retrieve the status of the specified Ethernet power management pattern filter.
// \param[in]   filter_number        Filter number.
// \param[out]  pattern_active       Pointer to pattern active boolean.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_GetEthernetPowerManagementPatternFilter (uint16_t filter_number, uint16_t *pattern_active) {
#if (USBD_CDCn_NCM_B_NUMBER_POWER_FILTERS != 0)
  *pattern_active = (NCM_State.power_filter_active[filter_number / 8] & (1U << (filter_number % 8))) ? 1 : 0;
  return true;
#else
  (void)filter_number;
  (void)pattern_active;
  return false;
#endif
}


// Called upon USB Host request to configure device Ethernet packet filter settings.
// \param[in]   packet_filter_bitmap Packet Filter Bitmap.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_SetEthernetPacketFilter (uint16_t packet_filter_bitmap) {
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x01) != 0)
  // Add code for handling request

  NCM_State.packet_filter_bitmap = packet_filter_bitmap;

  return true;
#else
  (void)packet_filter_bitmap;
  return false;
#endif
}


// Called upon USB Host request to retrieve a statistic based on the feature selector.
// \param[in]   feature_selector     Feature Selector.
// \param[out]  data                 Pointer to Statistics Value.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_GetEthernetStatistic (uint16_t feature_selector, uint32_t *data) {
#if (USBD_CDCn_NCM_BM_ETHERNET_STATISTICS != 0)
  if (feature_selector == 0x00U) { return true;  }
  if (feature_selector >  0x1DU) { return false; }
  *data = NCM_State.eth_statistics[feature_selector - 1];
  return true;
#else
  (void)feature_selector;
  (void)data;
  return false;
#endif
}


// Called upon USB Host request to retrieve the parameters that describe NTBs for each direction.
// \param[out]  ntb_params           Pointer to NTB Parameter Structure.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_GetNtbParameters (CDC_NCM_NTB_PARAM *ntb_params) {

  ntb_params->wLength                 = sizeof(CDC_NCM_NTB_PARAM);
  ntb_params->bmNtbFormatsSupported   = USBD_CDCn_NCM_BM_NTB_FORMATS_SUPPORTED;
  ntb_params->dwNtbInMaxSize          = USBD_CDCn_NCM_DW_NTB_IN_MAX_SIZE;
  ntb_params->wNdpInDivisor           = USBD_CDCn_NCM_W_NDP_IN_DIVISOR;
  ntb_params->wNdpInPayloadRemainder  = USBD_CDCn_NCM_W_NDP_IN_PAYLOAD_REMINDER;
  ntb_params->wNdpInAlignment         = USBD_CDCn_NCM_W_NDP_IN_ALIGNMENT;
  ntb_params->Reserved0               = 0U;
  ntb_params->dwNtbOutMaxSize         = USBD_CDCn_NCM_DW_NTB_OUT_MAX_SIZE;
  ntb_params->wNdpOutDivisor          = USBD_CDCn_NCM_W_NDP_OUT_DIVISOR;
  ntb_params->wNdpOutPayloadRemainder = USBD_CDCn_NCM_W_NDP_OUT_PAYLOAD_REMINDER;
  ntb_params->wNdpOutAlignment        = USBD_CDCn_NCM_W_NDP_OUT_ALIGNMENT;
  ntb_params->Reserved1               = 0U;

  return true;
}


// Called upon USB Host request to return the USB Device’s current EUI-48 station address.
// \param[out]  net_addr             Pointer to EUI-48 current address, in network byte order.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_GetNetAddress (uint8_t *net_addr) {
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x02) != 0)
  memcpy(net_addr, NCM_State.net_address, 6);
  return true;
#else
  (void)net_addr;
  return false;
#endif
}


// Called upon USB Host request to set the USB Device’s current EUI-48 station address.
// \param[in]   net_addr             Pointer to EUI-48 address, in network byte order.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_SetNetAddress (const uint8_t *net_addr) {
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x02) != 0)
  // Add code for handling request

  memcpy(NCM_State.net_address, net_addr, 6);

  return true;
#else
  (void)net_addr;
  return false;
#endif
}


// Called upon USB Host request to return the NTB data format currently being used.
// \param[out]  ntb_format           Pointer to NTB format code.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_GetNtbFormat (uint16_t *ntb_format) {
  *ntb_format = NCM_State.ntb_format;
  return true;
}


// Called upon USB Host request to select the format of NTB to be used for NTBs transmitted to the USB Host.
// \param[in]   ntb_format           NTB format selection:
//                - value 0 :        NTB-16
//                - value 1 :        NTB-32
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_SetNtbFormat (uint16_t ntb_format) {
#if (USBD_CDCn_NCM_BM_NTB_FORMATS_SUPPORTED > 1)
  if (ntb_format > 1) { return false; }
#else
  if (ntb_format > 0) { return false; }
#endif
  NCM_State.ntb_format = ntb_format;
  return true;
}


// Called upon USB Host request to return NTB input size currently being used.
// \param[out]  ntb_input_size       Pointer to NTB input size.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_GetNtbInputSize (uint32_t *ntb_input_size) {
  *ntb_input_size = NCM_State.ntb_input_size;
  return true;
}


// Called upon USB Host request to select the maximum size of NTB that is permitted to be sent to the USB Host.
// \param[in]   ntb_input_size       Maximum NTB size.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_SetNtbInputSize (uint32_t ntb_input_size) {
  if (ntb_input_size > USBD_CDCn_NCM_DW_NTB_IN_MAX_SIZE) { return false; }
  NCM_State.ntb_input_size = ntb_input_size;
  return true;
}


// Called upon USB Host request to return the currently effective maximum datagram size.
// \param[out]  max_datagram_size    Pointer to current maximum datagram size.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_GetMaxDatagramSize (uint16_t *max_datagram_size) {
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x08) != 0)
  *max_datagram_size = NCM_State.max_datagram_size;
  return true;
#else
  (void)max_datagram_size;
  return false;
#endif
}


// Called upon USB Host request to select the maximum datagram size that can be sent in an NTB.
// \param[in]   max_datagram_size    Maximum datagram size.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_SetMaxDatagramSize (uint16_t max_datagram_size) {
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x08) != 0)
  if (max_datagram_size > USBD_CDCn_NCM_W_MAX_SEGMENT_SIZE) { return false; }
  NCM_State.max_datagram_size = max_datagram_size;
  return true;
#else
  (void)max_datagram_size;
  return false;
#endif
}


// Called upon USB Host request to return the currently selected CRC mode.
// \param[out]  crc_mode             Pointer to current CRC mode.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_GetCrcMode (uint16_t *crc_mode) {
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x10) != 0)
  *crc_mode = NCM_State.crc_mode;
  return true;
#else
  (void)crc_mode;
  return false;
#endif
}


// Called upon USB Host request to control CRC mode.
// \param[in]   crc_mode             CRC mode:
//                - value 0 :        CRCs shall not be appended
//                - value 1 :        CRCs shall be appended
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_SetCrcMode (uint16_t crc_mode) {
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x10) != 0)
  if (crc_mode > 1) { return false; }
  NCM_State.crc_mode = crc_mode;
  return true;
#else
  (void)crc_mode;
  return false;
#endif
}


// Called when NTB was successfully sent.
void USBD_CDCn_NCM_NTB_IN_Sent (void) {
  // Add code for handling request
#ifdef USB_CMSIS_RTOS2
  (void)osThreadFlagsSet(DataIN_ThreadId, 1U);
#else
  (void)osSignalSet(DataIN_ThreadId, 1U);
#endif
}

// Called when NTB was successfully received.
void USBD_CDCn_NCM_NTB_OUT_Received (void) {
  // Add code for handling request
#ifdef USB_CMSIS_RTOS2
  (void)osThreadFlagsSet(DataOUT_ThreadId, 1U);
#else
  (void)osSignalSet(DataOUT_ThreadId, 1U);
#endif
}



// Thread handling ETH Connection
#ifdef USB_CMSIS_RTOS2
__NO_RETURN static void Connection_Thread (void *arg) {
#else
__NO_RETURN static void Connection_Thread (void const *arg) {
#endif
#ifdef USB_CMSIS_RTOS
  osEvent            os_event;
#endif
  uint32_t           event;
  uint32_t           speed;
  uint16_t           state;
  int32_t            status;

  (void)(arg);

  for (;;) {
#ifdef USB_CMSIS_RTOS2
    event = osThreadFlagsWait(1U, osFlagsWaitAll, 500U);
#else
    os_event = osSignalWait(1U, 500U);
    if (os_event.status == osEventSignal) {
      event = (uint32_t)os_event.value.signals;
    } else {
      event = 0x80000000U;
    }
#endif
//  state = GetConnectionState();   // 0 = Disconnected, 1 = Connected
    state = 1U;                     // Emulate always connected
//  if (state == 1U) {
//    speed = GetConnectionSpeed();
      speed = 100000000U;           // Emulate 100M bsp link speed
//  } else {
//    speed = 0U;
//  }
    if (speed != LinkSpeed) {
      LinkSpeed = speed;
//    if (state == 1U) {
        do {
          status = USBD_CDC_NCM_Notify_ConnectionSpeedChange(USB_CDC_NUM, speed, speed);
        } while (status == -(int32_t)usbDriverBusy);
//    }
    }
    if (state != LinkState) {
      LinkState = state;
      do {
        status = USBD_CDC_NCM_Notify_NetworkConnection(USB_CDC_NUM, state);
      } while (status == -(int32_t)usbDriverBusy);
    }
    if ((event & 0x80000000U) == 0U) {
      if (LinkState == 1U) {
        do {
          status = USBD_CDC_NCM_Notify_ConnectionSpeedChange(USB_CDC_NUM, LinkSpeed, LinkSpeed);
        } while (status == -(int32_t)usbDriverBusy);
      }
      do {
        status = USBD_CDC_NCM_Notify_NetworkConnection(USB_CDC_NUM, LinkState);
      } while (status == -(int32_t)usbDriverBusy);
    }
  }
}

// Thread handling Data IN (ETH -> USB)
#ifdef USB_CMSIS_RTOS2
__NO_RETURN static void DataIN_Thread (void *arg) {
#else
__NO_RETURN static void DataIN_Thread (void const *arg) {
#endif
  uint32_t size;
  uint32_t len;
   int32_t status;

  (void)arg;

  size = 0U;
  len  = 0U;

  for (;;) {
#ifdef USB_CMSIS_RTOS2
    (void)osThreadFlagsWait(3U, osFlagsWaitAll, osWaitForever);
#else
    (void)osSignalWait(3U, osWaitForever);
#endif
    status = USBD_CDC_NCM_NTB_IN_Initialize(USB_CDC_NUM);
    if (status != (int32_t)usbOK) { continue; }
    status = USBD_CDC_NCM_NTB_IN_CreateNDP(USB_CDC_NUM, MAX_IN_DATAGRAMS);
    if (status != (int32_t)usbOK) { continue; }
    for (;;) {
      if (FrameIN_Size != 0) {
        (void)USBD_CDC_NCM_NTB_IN_WriteDatagram(USB_CDC_NUM, FrameIN, FrameIN_Size);
        FrameIN_Size = 0;
      }

      (void)size;       // Emulate No Data
      (void)len;
//    size = GetDatagramSize();
//    if (size == 0U) {
        break;
//    }
//    if ((size < 14U) || (size > NCM_State.max_datagram_size)) {
//      ReadDatagram(NULL);  // Discard datagram
//      continue;
//    }
//    len = ReadDatagram(FrameIN);
//    if (len > 0) {
//      status = USBD_CDC_NCM_NTB_IN_WriteDatagram(USB_CDC_NUM, FrameIN, len);
//      if (status != (int32_t)usbOK) {
//        FrameIN_Size = len;
//#ifdef USB_CMSIS_RTOS2
//        (void)osThreadFlagsSet(DataIN_ThreadId, 2U);
//#else
//        (void)osSignalSet(DataIN_ThreadId, 2U);
//#endif
//        break;
//      }
//    }
    }
    (void)USBD_CDC_NCM_NTB_IN_Send(USB_CDC_NUM);
  }
}

// Thread handling Data OUT (USB -> ETH)
#ifdef USB_CMSIS_RTOS2
__NO_RETURN static void DataOUT_Thread (void *arg) {
#else
__NO_RETURN static void DataOUT_Thread (void const *arg) {
#endif
  uint32_t size;
  int32_t  len, status;

  (void)(arg);

  for (;;) {
#ifdef USB_CMSIS_RTOS2
    (void)osThreadFlagsWait(1U, osFlagsWaitAll, osWaitForever);
#else
    (void)osSignalWait(1U, osWaitForever);
#endif
    for (;;) {
      status = USBD_CDC_NCM_NTB_OUT_ProcessNDP(USB_CDC_NUM);
      if (status != (int32_t)usbOK) { break; }
      for (;;) {
        size = USBD_CDC_NCM_NTB_OUT_GetDatagramSize(USB_CDC_NUM);
        if (size == 0U) { break; }
        if ((size < 14U) || (size > NCM_State.max_datagram_size)) {
          (void)USBD_CDC_NCM_NTB_OUT_ReadDatagram(USB_CDC_NUM, NULL, 0U);
          continue;
        }
        len = USBD_CDC_NCM_NTB_OUT_ReadDatagram(USB_CDC_NUM, FrameOUT, size);
        if (len > 0) {
//        WriteDatagram(FrameOUT, len);
        }
      }
    }
    (void)USBD_CDC_NCM_NTB_OUT_Release(USB_CDC_NUM);
  }
}

User Code Template USBD_User_CDC_NCM_ETH_n.c

The following source code contains all the required callback functions and can be used to implement the application specific behavior of a USB CDC (NCM) Device with Ethernet-over-USB functionality.

/*------------------------------------------------------------------------------
 * MDK Middleware - Component ::USB:Device:CDC
 * Copyright (c) 2004-2020 Arm Limited (or its affiliates). All rights reserved.
 *------------------------------------------------------------------------------
 * Name:    USBD_User_CDC_NCM_ETH_n.c
 * Purpose: USB Device Communication Device Class (CDC)
 *          Network Control Model (NCM) User module for an USB Ethernet Bridge
 * Rev.:    V1.0.8
 *----------------------------------------------------------------------------*/

#include <stdio.h>
#include <string.h>

#include "rl_usb.h"

#include "Driver_ETH_MAC.h"             // ::CMSIS Driver:Ethernet MAC
#include "Driver_ETH_PHY.h"             // ::CMSIS Driver:Ethernet PHY
#include "USBD_Config_CDC_n.h"

#define ETH_MAC_NUM             0       /* ETH MAC Driver number */
#define ETH_PHY_NUM             0       /* ETH PHY Driver number */
#define USB_CDC_NUM             n       /* USB CDC Instance number */

#define MAX_IN_DATAGRAMS        10

extern ARM_DRIVER_ETH_MAC ARM_Driver_ETH_MAC_(ETH_MAC_NUM);
extern ARM_DRIVER_ETH_PHY ARM_Driver_ETH_PHY_(ETH_PHY_NUM);

static ARM_DRIVER_ETH_MAC *EthMac = &ARM_Driver_ETH_MAC_(ETH_MAC_NUM);
static ARM_DRIVER_ETH_PHY *EthPhy = &ARM_Driver_ETH_PHY_(ETH_PHY_NUM);

static const wchar_t   *wsMacAddress = USBD_CDCn_NCM_MAC_ADDRESS;
static ARM_ETH_MAC_ADDR   MacAddress;

static ARM_ETH_LINK_STATE LinkState;
static ARM_ETH_LINK_INFO  LinkInfo;
static uint32_t           LinkSpeed;

static uint32_t           PacketFilter;

static struct {
  uint32_t ntb_input_size;
  uint16_t ntb_format;
  uint16_t max_datagram_size;
  uint16_t crc_mode;
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x02) != 0)
  uint8_t  net_address[6];
#endif
#if (USBD_CDCn_NCM_W_NUMBER_MC_FILTERS != 0)
  uint8_t  mc_filters[6*(USBD_CDCn_NCM_W_NUMBER_MC_FILTERS & 0x7FFF)];
#endif
#if (USBD_CDCn_NCM_B_NUMBER_POWER_FILTERS != 0)
  uint8_t  power_filter_active[(USBD_CDCn_NCM_B_NUMBER_POWER_FILTERS + 7)/8];
#endif
  uint16_t packet_filter_bitmap;
#if (USBD_CDCn_NCM_BM_ETHERNET_STATISTICS != 0)
  uint32_t eth_statistics[29];
#endif
} NCM_State;

static uint32_t FrameIN_Size;
static uint8_t  FrameIN [USBD_CDCn_NCM_W_MAX_SEGMENT_SIZE];
static uint8_t  FrameOUT[USBD_CDCn_NCM_W_MAX_SEGMENT_SIZE];

static void EthMac_Notify (uint32_t event);

#ifdef USB_CMSIS_RTOS2
static void Connection_Thread (void *arg);
static void DataIN_Thread     (void *arg);
static void DataOUT_Thread    (void *arg);

#ifdef USB_CMSIS_RTOS2_RTX5
static osRtxThread_t        connection_thread_cb_mem           __SECTION(.bss.os.thread.cb);
static uint64_t             connection_thread_stack_mem[512/8] __SECTION(.bss.os.thread.stack);
static osRtxThread_t        data_in_thread_cb_mem              __SECTION(.bss.os.thread.cb);
static uint64_t             data_in_thread_stack_mem   [512/8] __SECTION(.bss.os.thread.stack);
static osRtxThread_t        data_out_thread_cb_mem             __SECTION(.bss.os.thread.cb);
static uint64_t             data_out_thread_stack_mem  [512/8] __SECTION(.bss.os.thread.stack);
#endif

static const osThreadAttr_t connection_thread_attr = {
  "Connection_Thread",
  0U,
#ifdef USB_CMSIS_RTOS2_RTX5
 &connection_thread_cb_mem,
  sizeof(osRtxThread_t),
 &connection_thread_stack_mem[0],
#else
  NULL,
  0U,
  NULL,
#endif
  512U,
  osPriorityNormal,
  0U,
  0U
};

static const osThreadAttr_t data_in_thread_attr = {
  "DataIN_Thread",
  0U,
#ifdef USB_CMSIS_RTOS2_RTX5
 &data_in_thread_cb_mem,
  sizeof(osRtxThread_t),
 &data_in_thread_stack_mem[0],
#else
  NULL,
  0U,
  NULL,
#endif
  512U,
  osPriorityNormal,
  0U,
  0U
};

static const osThreadAttr_t data_out_thread_attr = {
  "DataOUT_Thread",
  0U,
#ifdef USB_CMSIS_RTOS2_RTX5
 &data_out_thread_cb_mem,
  sizeof(osRtxThread_t),
 &data_out_thread_stack_mem[0],
#else
  NULL,
  0U,
  NULL,
#endif
  512U,
  osPriorityNormal,
  0U,
  0U
};
#else
static void Connection_Thread (void const *arg);
static void DataIN_Thread     (void const *arg);
static void DataOUT_Thread    (void const *arg);

extern const osThreadDef_t os_thread_def_Connection_Thread;
osThreadDef(Connection_Thread, osPriorityNormal, 1, NULL);
extern const osThreadDef_t os_thread_def_DataIN_Thread;
osThreadDef(DataIN_Thread,     osPriorityNormal, 1, NULL);
extern const osThreadDef_t os_thread_def_DataOUT_Thread;
osThreadDef(DataOUT_Thread,    osPriorityNormal, 1, NULL);
#endif

static void *Connection_ThreadId;
static void *DataIN_ThreadId;
static void *DataOUT_ThreadId;


// MAC Address conversion from wide string
// \param[in]   wstr    Pointer to wide string.
// \param[out]  addr    Pointer to address.
static void MAC_wstr_to_addr (const wchar_t *wstr, uint8_t *addr) {
  uint8_t  c;
  uint8_t  n;
  uint32_t i;

  for (i = 0U; i < 12U; i++) {
    c = (uint8_t)wstr[i];
    if        ((c >= '0') && (c <= '9')) {
      n = c - '0';
    } else if ((c >= 'A') && (c <= 'F')) {
      n = c - ('A' + 10U);
    } else if ((c >= 'a') && (c <= 'f')) {
      n = c - ('a' + 10U);
    } else {
      n = 0U;
    }
    if ((i & 1U) != 0U) {
      addr[i>>1] |= n;
    } else {
      addr[i>>1]  = (uint8_t)((uint32_t)n << 4);
    }
  }
}


// Called during USBD_Initialize to initialize the USB CDC class instance (NCM).
void USBD_CDCn_NCM_Initialize (void) {
  // Add code for initialization
  ARM_ETH_MAC_CAPABILITIES capabilities;
  int32_t                  status;

  MAC_wstr_to_addr(wsMacAddress, (uint8_t *)&MacAddress);

  memset(&NCM_State, 0, sizeof(NCM_State));
  NCM_State.ntb_input_size = USBD_CDCn_NCM_DW_NTB_IN_MAX_SIZE;
  NCM_State.max_datagram_size = USBD_CDCn_NCM_W_MAX_SEGMENT_SIZE;
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x02) != 0)
  memcpy(NCM_State.net_address, &MacAddress, 6);
#endif
  NCM_State.packet_filter_bitmap = 0x0CU;

  LinkState = ARM_ETH_LINK_DOWN;
  LinkInfo.speed  = 0U;
  LinkInfo.duplex = 0U;
  LinkSpeed = 0U;

  PacketFilter = ARM_ETH_MAC_ADDRESS_BROADCAST;

  FrameIN_Size = 0U;
  memset(FrameIN, 0, sizeof(FrameIN));

  // Initialize Media Access Controller
  capabilities = EthMac->GetCapabilities();

  status = EthMac->Initialize(EthMac_Notify);
  if (status != ARM_DRIVER_OK) { return; }
  status = EthMac->PowerControl(ARM_POWER_FULL);
  if (status != ARM_DRIVER_OK) { return; }

  status = EthMac->SetMacAddress(&MacAddress);
  if (status != ARM_DRIVER_OK) { return; }

  // Initialize Physical Media Interface
  status = EthPhy->Initialize(EthMac->PHY_Read, EthMac->PHY_Write);
  if (status != ARM_DRIVER_OK) { return; }
  status = EthPhy->PowerControl(ARM_POWER_FULL);
  if (status != ARM_DRIVER_OK) { return; }
  status = EthPhy->SetInterface(capabilities.media_interface);
  if (status != ARM_DRIVER_OK) { return; }
  status = EthPhy->SetMode(ARM_ETH_PHY_AUTO_NEGOTIATE);
  if (status != ARM_DRIVER_OK) { return; }

  // Create Threads
#ifdef USB_CMSIS_RTOS2
  Connection_ThreadId = osThreadNew(Connection_Thread, NULL, &connection_thread_attr);
  DataIN_ThreadId     = osThreadNew(DataIN_Thread,     NULL, &data_in_thread_attr);
  DataOUT_ThreadId    = osThreadNew(DataOUT_Thread,    NULL, &data_out_thread_attr);
#else
  Connection_ThreadId = osThreadCreate(osThread(Connection_Thread), NULL);
  DataIN_ThreadId     = osThreadCreate(osThread(DataIN_Thread),     NULL);
  DataOUT_ThreadId    = osThreadCreate(osThread(DataOUT_Thread),    NULL);
#endif
}


// Called during USBD_Uninitialize to de-initialize the USB CDC class instance (NCM).
void USBD_CDCn_NCM_Uninitialize (void) {
  // Add code for de-initialization
  (void)osThreadTerminate(Connection_ThreadId);
  (void)osThreadTerminate(DataIN_ThreadId);
  (void)osThreadTerminate(DataOUT_ThreadId);

  (void)EthPhy->PowerControl(ARM_POWER_OFF);
  (void)EthPhy->Uninitialize();

  (void)EthMac->PowerControl(ARM_POWER_OFF);
  (void)EthMac->Uninitialize();
}


// Called upon USB Bus Reset Event.
void USBD_CDCn_NCM_Reset (void) {
  // Add code for reset
}


// Called when USB Host changes data interface from alternate 0 to alternate 1 (activates data interface).
void USBD_CDCn_NCM_Start (void) {
  // Add code for data interface activation
#ifdef USB_CMSIS_RTOS2
  (void)osThreadFlagsSet(Connection_ThreadId, 1U);
  (void)osThreadFlagsSet(DataIN_ThreadId,     1U);
#else
  (void)osSignalSet(Connection_ThreadId, 1U);
  (void)osSignalSet(DataIN_ThreadId,     1U);
#endif
}


// Called when USB Host changes data interface from alternate 1 to alternate 0 (de-activates data interface).
void USBD_CDCn_NCM_Stop (void) {
  // Add code for data interface de-activation
  // Explained in ncm10.pdf document from www.usb.org in paragraph 7.2

  FrameIN_Size = 0U;
#ifdef USB_CMSIS_RTOS
  osSignalClear(DataIN_ThreadId, 1U);
#endif

  memset(&NCM_State, 0, sizeof(NCM_State));
  NCM_State.ntb_input_size = USBD_CDCn_NCM_DW_NTB_IN_MAX_SIZE;
  NCM_State.max_datagram_size = USBD_CDCn_NCM_W_MAX_SEGMENT_SIZE;
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x02) != 0)
  memcpy(NCM_State.net_address, &MacAddress, 6);
#endif
  NCM_State.packet_filter_bitmap = 0x0CU;

  PacketFilter = ARM_ETH_MAC_ADDRESS_BROADCAST;

  (void)EthMac->SetMacAddress(&MacAddress);
  (void)EthMac->SetAddressFilter(NULL, 0);
  (void)EthMac->Control(ARM_ETH_MAC_CONFIGURE,
                       (uint32_t)(LinkInfo.speed                           ) |
                       (uint32_t)(LinkInfo.duplex << ARM_ETH_MAC_DUPLEX_Pos) |
                        PacketFilter);
}


// Called upon USB Host request to set the Ethernet device multicast filters.
// \param[in]   addr_list            Pointer to list of 48-bit Multicast addresses.
// \param[in]   num_of_filters       Number of filters.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_SetEthernetMulticastFilters (const uint8_t *addr_list, uint16_t num_of_filters) {
#if (USBD_CDCn_NCM_W_NUMBER_MC_FILTERS != 0)
  int32_t status;

  if (num_of_filters > (USBD_CDCn_NCM_W_NUMBER_MC_FILTERS & 0x7FFF)) { return false; }

  // Add code for handling request
  status = EthMac->SetAddressFilter((ARM_ETH_MAC_ADDR *)((uint32_t)addr_list), num_of_filters);
  if (status != ARM_DRIVER_OK) { return false; }

  memcpy(NCM_State.mc_filters, addr_list, num_of_filters * 6);

  return true;
#else
  (void)addr_list;
  (void)num_of_filters;
  return false;
#endif
}


// Called upon USB Host request to set up the specified Ethernet power management pattern filter.
// \param[in]   filter_number        Filter number.
// \param[in]   pattern_filter       Power management pattern filter structure.
// \param[in]   pattern_filter_size  Size of pattern filter structure.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_SetEthernetPowerManagementPatternFilter (uint16_t filter_number, const uint8_t *pattern_filter, uint16_t pattern_filter_size) {
#if (USBD_CDCn_NCM_B_NUMBER_POWER_FILTERS != 0)
  if (filter_number >= USBD_CDCn_NCM_B_NUMBER_POWER_FILTERS) { return false; }

  // Add code for handling request

  NCM_State.power_filter_active[filter_number / 8] |= 1U << (filter_number % 8);

  return true;
#else
  (void)filter_number;
  (void)pattern_filter;
  (void)pattern_filter_size;
  return false;
#endif
}


// Called upon USB Host request to retrieve the status of the specified Ethernet power management pattern filter.
// \param[in]   filter_number        Filter number.
// \param[out]  pattern_active       Pointer to pattern active boolean.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_GetEthernetPowerManagementPatternFilter (uint16_t filter_number, uint16_t *pattern_active) {
#if (USBD_CDCn_NCM_B_NUMBER_POWER_FILTERS != 0)
  *pattern_active = (NCM_State.power_filter_active[filter_number / 8] & (1U << (filter_number % 8))) ? 1 : 0;
  return true;
#else
  (void)filter_number;
  (void)pattern_active;
  return false;
#endif
}


// Called upon USB Host request to configure device Ethernet packet filter settings.
// \param[in]   packet_filter_bitmap Packet Filter Bitmap.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_SetEthernetPacketFilter (uint16_t packet_filter_bitmap) {
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x01) != 0)
  int32_t status;

  // Add code for handling request
  PacketFilter = ((packet_filter_bitmap & 0x01U) ? ARM_ETH_MAC_ADDRESS_ALL       : 0) |
                 ((packet_filter_bitmap & 0x02U) ? ARM_ETH_MAC_ADDRESS_MULTICAST : 0) |
                 ((packet_filter_bitmap & 0x08U) ? ARM_ETH_MAC_ADDRESS_BROADCAST : 0);

  status = EthMac->Control(ARM_ETH_MAC_CONFIGURE,
                          (uint32_t)(LinkInfo.speed                           ) |
                          (uint32_t)(LinkInfo.duplex << ARM_ETH_MAC_DUPLEX_Pos) |
                           PacketFilter);
  if (status != ARM_DRIVER_OK) { return false; }

  NCM_State.packet_filter_bitmap = packet_filter_bitmap;

  return true;
#else
  (void)packet_filter_bitmap;
  return false;
#endif
}


// Called upon USB Host request to retrieve a statistic based on the feature selector.
// \param[in]   feature_selector     Feature Selector.
// \param[out]  data                 Pointer to Statistics Value.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_GetEthernetStatistic (uint16_t feature_selector, uint32_t *data) {
#if (USBD_CDCn_NCM_BM_ETHERNET_STATISTICS != 0)
  if (feature_selector == 0x00U) { return true;  }
  if (feature_selector >  0x1DU) { return false; }
  *data = NCM_State.eth_statistics[feature_selector - 1];
  return true;
#else
  (void)feature_selector;
  (void)data;
  return false;
#endif
}


// Called upon USB Host request to retrieve the parameters that describe NTBs for each direction.
// \param[out]  ntb_params           Pointer to NTB Parameter Structure.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_GetNtbParameters (CDC_NCM_NTB_PARAM *ntb_params) {

  ntb_params->wLength                 = sizeof(CDC_NCM_NTB_PARAM);
  ntb_params->bmNtbFormatsSupported   = USBD_CDCn_NCM_BM_NTB_FORMATS_SUPPORTED;
  ntb_params->dwNtbInMaxSize          = USBD_CDCn_NCM_DW_NTB_IN_MAX_SIZE;
  ntb_params->wNdpInDivisor           = USBD_CDCn_NCM_W_NDP_IN_DIVISOR;
  ntb_params->wNdpInPayloadRemainder  = USBD_CDCn_NCM_W_NDP_IN_PAYLOAD_REMINDER;
  ntb_params->wNdpInAlignment         = USBD_CDCn_NCM_W_NDP_IN_ALIGNMENT;
  ntb_params->Reserved0               = 0U;
  ntb_params->dwNtbOutMaxSize         = USBD_CDCn_NCM_DW_NTB_OUT_MAX_SIZE;
  ntb_params->wNdpOutDivisor          = USBD_CDCn_NCM_W_NDP_OUT_DIVISOR;
  ntb_params->wNdpOutPayloadRemainder = USBD_CDCn_NCM_W_NDP_OUT_PAYLOAD_REMINDER;
  ntb_params->wNdpOutAlignment        = USBD_CDCn_NCM_W_NDP_OUT_ALIGNMENT;
  ntb_params->Reserved1               = 0U;

  return true;
}


// Called upon USB Host request to return the USB Device’s current EUI-48 station address.
// \param[out]  net_addr             Pointer to EUI-48 current address, in network byte order.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_GetNetAddress (uint8_t *net_addr) {
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x02) != 0)
  memcpy(net_addr, NCM_State.net_address, 6);
  return true;
#else
  (void)net_addr;
  return false;
#endif
}


// Called upon USB Host request to set the USB Device’s current EUI-48 station address.
// \param[in]   net_addr             Pointer to EUI-48 address, in network byte order.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_SetNetAddress (const uint8_t *net_addr) {
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x02) != 0)
  int32_t status;

  // Add code for handling request
  status = EthMac->SetMacAddress((ARM_ETH_MAC_ADDR *)((uint32_t)net_addr));
  if (status != ARM_DRIVER_OK) { return false; }

  memcpy(NCM_State.net_address, net_addr, 6);

  return true;
#else
  (void)net_addr;
  return false;
#endif
}


// Called upon USB Host request to return the NTB data format currently being used.
// \param[out]  ntb_format           Pointer to NTB format code.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_GetNtbFormat (uint16_t *ntb_format) {
  *ntb_format = NCM_State.ntb_format;
  return true;
}


// Called upon USB Host request to select the format of NTB to be used for NTBs transmitted to the USB Host.
// \param[in]   ntb_format           NTB format selection:
//                - value 0 :        NTB-16
//                - value 1 :        NTB-32
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_SetNtbFormat (uint16_t ntb_format) {
#if (USBD_CDCn_NCM_BM_NTB_FORMATS_SUPPORTED > 1)
  if (ntb_format > 1) { return false; }
#else
  if (ntb_format > 0) { return false; }
#endif
  NCM_State.ntb_format = ntb_format;
  return true;
}


// Called upon USB Host request to return NTB input size currently being used.
// \param[out]  ntb_input_size       Pointer to NTB input size.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_GetNtbInputSize (uint32_t *ntb_input_size) {
  *ntb_input_size = NCM_State.ntb_input_size;
  return true;
}


// Called upon USB Host request to select the maximum size of NTB that is permitted to be sent to the USB Host.
// \param[in]   ntb_input_size       Maximum NTB size.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_SetNtbInputSize (uint32_t ntb_input_size) {
  if (ntb_input_size > USBD_CDCn_NCM_DW_NTB_IN_MAX_SIZE) { return false; }
  NCM_State.ntb_input_size = ntb_input_size;
  return true;
}


// Called upon USB Host request to return the currently effective maximum datagram size.
// \param[out]  max_datagram_size    Pointer to current maximum datagram size.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_GetMaxDatagramSize (uint16_t *max_datagram_size) {
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x08) != 0)
  *max_datagram_size = NCM_State.max_datagram_size;
  return true;
#else
  (void)max_datagram_size;
  return false;
#endif
}


// Called upon USB Host request to select the maximum datagram size that can be sent in an NTB.
// \param[in]   max_datagram_size    Maximum datagram size.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_SetMaxDatagramSize (uint16_t max_datagram_size) {
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x08) != 0)
  if (max_datagram_size > USBD_CDCn_NCM_W_MAX_SEGMENT_SIZE) { return false; }
  NCM_State.max_datagram_size = max_datagram_size;
  return true;
#else
  (void)max_datagram_size;
  return false;
#endif
}


// Called upon USB Host request to return the currently selected CRC mode.
// \param[out]  crc_mode             Pointer to current CRC mode.
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_GetCrcMode (uint16_t *crc_mode) {
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x10) != 0)
  *crc_mode = NCM_State.crc_mode;
  return true;
#else
  (void)crc_mode;
  return false;
#endif
}


// Called upon USB Host request to control CRC mode.
// \param[in]   crc_mode             CRC mode:
//                - value 0 :        CRCs shall not be appended
//                - value 1 :        CRCs shall be appended
// \return      true                 if this request was handled.
// \return      false                if this request was not handled.
bool USBD_CDCn_NCM_SetCrcMode (uint16_t crc_mode) {
#if ((USBD_CDCn_NCM_BM_NETWORK_CAPABILITIES & 0x10) != 0)
  if (crc_mode > 1) { return false; }
  NCM_State.crc_mode = crc_mode;
  return true;
#else
  (void)crc_mode;
  return false;
#endif
}


// Called when NTB was successfully sent.
void USBD_CDCn_NCM_NTB_IN_Sent (void) {
  // Add code for handling request
#ifdef USB_CMSIS_RTOS2
  (void)osThreadFlagsSet(DataIN_ThreadId, 1U);
#else
  (void)osSignalSet(DataIN_ThreadId, 1U);
#endif
}

// Called when NTB was successfully received.
void USBD_CDCn_NCM_NTB_OUT_Received (void) {
  // Add code for handling request
#ifdef USB_CMSIS_RTOS2
  (void)osThreadFlagsSet(DataOUT_ThreadId, 1U);
#else
  (void)osSignalSet(DataOUT_ThreadId, 1U);
#endif
}



// Called upon Ethernet MAC Event
static void EthMac_Notify (uint32_t event) {

  switch (event) {
    case ARM_ETH_MAC_EVENT_RX_FRAME:
#ifdef USB_CMSIS_RTOS2
      (void)osThreadFlagsSet(DataIN_ThreadId, 2U);
#else
      (void)osSignalSet(DataIN_ThreadId, 2U);
#endif
      break;
    default:
      break;
  }
}


// Thread handling ETH Connection
#ifdef USB_CMSIS_RTOS2
__NO_RETURN static void Connection_Thread (void *arg) {
#else
__NO_RETURN static void Connection_Thread (void const *arg) {
#endif
  ARM_ETH_LINK_STATE link_state;
#ifdef USB_CMSIS_RTOS
  osEvent            os_event;
#endif
  uint32_t           event;
  uint32_t           speed;
  uint16_t           state;
  int32_t            status;

  (void)(arg);

  for (;;) {
#ifdef USB_CMSIS_RTOS2
    event = osThreadFlagsWait(1U, osFlagsWaitAll, 500U);
#else
    os_event = osSignalWait(1U, 500U);
    if (os_event.status == osEventSignal) {
      event = (uint32_t)os_event.value.signals;
    } else {
      event = 0x80000000U;
    }
#endif
    link_state = EthPhy->GetLinkState();
    if (link_state == ARM_ETH_LINK_UP) {
      LinkInfo = EthPhy->GetLinkInfo();
      switch (LinkInfo.speed) {
        case 0:  speed =   10000000U; break;
        case 1:  speed =  100000000U; break;
        case 2:  speed = 1000000000U; break;
        default: speed = 0U;
      }
    } else {
      speed = 0U;
    }
    if (speed != LinkSpeed) {
      LinkSpeed = speed;
      if (link_state == ARM_ETH_LINK_UP) {
        do {
          status = USBD_CDC_NCM_Notify_ConnectionSpeedChange(USB_CDC_NUM, speed, speed);
        } while (status == -(int32_t)usbDriverBusy);
      }
    }
    if (link_state != LinkState) {
      LinkState = link_state;
      if (link_state == ARM_ETH_LINK_UP) {
        (void)EthMac->Control(ARM_ETH_MAC_CONFIGURE,
                             (uint32_t)(LinkInfo.speed                           ) |
                             (uint32_t)(LinkInfo.duplex << ARM_ETH_MAC_DUPLEX_Pos) |
                              PacketFilter);
        (void)EthMac->Control(ARM_ETH_MAC_CONTROL_TX, 1U);
        (void)EthMac->Control(ARM_ETH_MAC_CONTROL_RX, 1U);
      } else {
        (void)EthMac->Control(ARM_ETH_MAC_FLUSH,
                              ARM_ETH_MAC_FLUSH_TX |
                              ARM_ETH_MAC_FLUSH_RX);
        (void)EthMac->Control(ARM_ETH_MAC_CONTROL_TX, 0U);
        (void)EthMac->Control(ARM_ETH_MAC_CONTROL_RX, 0U);
      }
      state = (link_state == ARM_ETH_LINK_UP) ? 1U : 0U;
      do {
        status = USBD_CDC_NCM_Notify_NetworkConnection(USB_CDC_NUM, state);
      } while (status == -(int32_t)usbDriverBusy);
    }
    if ((event & 0x80000000U) == 0U) {
      if (LinkState == ARM_ETH_LINK_UP) {
        do {
          status = USBD_CDC_NCM_Notify_ConnectionSpeedChange(USB_CDC_NUM, LinkSpeed, LinkSpeed);
        } while (status == -(int32_t)usbDriverBusy);
      }
      state = (LinkState == ARM_ETH_LINK_UP) ? 1U : 0U;
      do {
        status = USBD_CDC_NCM_Notify_NetworkConnection(USB_CDC_NUM, state);
      } while (status == -(int32_t)usbDriverBusy);
    }
  }
}

// Thread handling Data IN (ETH -> USB)
#ifdef USB_CMSIS_RTOS2
__NO_RETURN static void DataIN_Thread (void *arg) {
#else
__NO_RETURN static void DataIN_Thread (void const *arg) {
#endif
  uint32_t size;
   int32_t status;

  (void)arg;

  for (;;) {
#ifdef USB_CMSIS_RTOS2
    (void)osThreadFlagsWait(3U, osFlagsWaitAll, osWaitForever);
#else
    (void)osSignalWait(3U, osWaitForever);
#endif
    do {
      status = USBD_CDC_NCM_NTB_IN_Initialize(USB_CDC_NUM);
      if (status != (int32_t)usbOK) { continue; }
      status = USBD_CDC_NCM_NTB_IN_CreateNDP(USB_CDC_NUM, MAX_IN_DATAGRAMS);
      if (status != (int32_t)usbOK) { continue; }
      for (;;) {
        if (FrameIN_Size != 0) {
          (void)USBD_CDC_NCM_NTB_IN_WriteDatagram(USB_CDC_NUM, FrameIN, FrameIN_Size);
          FrameIN_Size = 0;
        }
        size = EthMac->GetRxFrameSize();
        if (size == 0U) {
          break;
        }
        if ((size < 14U) || (size > NCM_State.max_datagram_size)) {
          (void)EthMac->ReadFrame(NULL, 0U);
          continue;
        }
        (void)EthMac->ReadFrame(FrameIN, size);
        if (size > 0) {
          #if ((USBD_CDCn_NCM_BM_ETHERNET_STATISTICS & 0x00000002) != 0)
            NCM_State.eth_statistics[1]++;
          #endif
          status = USBD_CDC_NCM_NTB_IN_WriteDatagram(USB_CDC_NUM, FrameIN, size);
          if (status != (int32_t)usbOK) {
            FrameIN_Size = size;
            break;
          }
        }
      }
      (void)USBD_CDC_NCM_NTB_IN_Send(USB_CDC_NUM);
    } while (FrameIN_Size);
  }
}

// Thread handling Data OUT (USB -> ETH)
#ifdef USB_CMSIS_RTOS2
__NO_RETURN static void DataOUT_Thread (void *arg) {
#else
__NO_RETURN static void DataOUT_Thread (void const *arg) {
#endif
  uint32_t size;
  int32_t  len, status;

  (void)(arg);

  for (;;) {
#ifdef USB_CMSIS_RTOS2
    (void)osThreadFlagsWait(1U, osFlagsWaitAll, osWaitForever);
#else
    (void)osSignalWait(1U, osWaitForever);
#endif
    for (;;) {
      status = USBD_CDC_NCM_NTB_OUT_ProcessNDP(USB_CDC_NUM);
      if (status != (int32_t)usbOK) { break; }
      for (;;) {
        size = USBD_CDC_NCM_NTB_OUT_GetDatagramSize(USB_CDC_NUM);
        if (size == 0U) { break; }
        if ((size < 14U) || (size > NCM_State.max_datagram_size)) {
          (void)USBD_CDC_NCM_NTB_OUT_ReadDatagram(USB_CDC_NUM, NULL, 0U);
          continue;
        }
        len = USBD_CDC_NCM_NTB_OUT_ReadDatagram(USB_CDC_NUM, FrameOUT, size);
        if (len > 0) {
          do {
            status = EthMac->SendFrame(FrameOUT, (uint32_t)(len), 0U);
          } while (status == ARM_DRIVER_ERROR_BUSY);
          #if ((USBD_CDCn_NCM_BM_ETHERNET_STATISTICS & 0x00000001) != 0)
            NCM_State.eth_statistics[0]++;
          #endif
        }
      }
    }
    (void)USBD_CDC_NCM_NTB_OUT_Release(USB_CDC_NUM);
  }
}
