LCD Panel

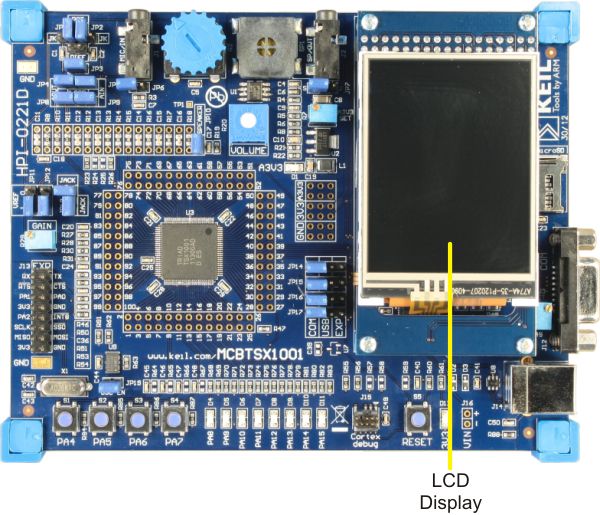

The LCD-TFT color graphics display panel (AMPIRE AM240320L8TNQW) contains a 240x320 pixel screen and connects using a 16-bit interface. The LCD panel is mounted on the MCBTSX1001 Display Board, and connects to MCBTSX1001 Base Board via 30-pin header.
