Serial Port

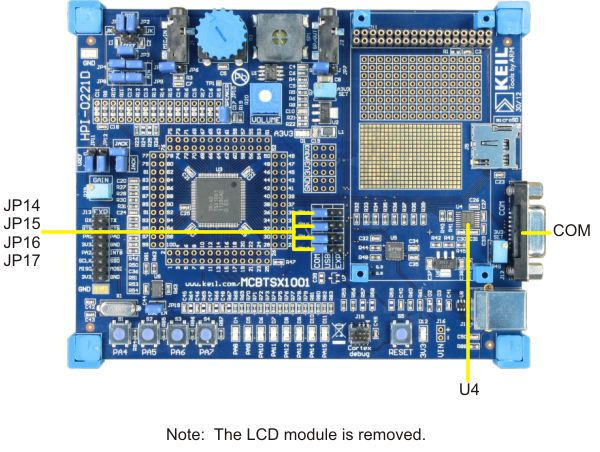

The MCBTSX1001 board connects the on-chip serial UART to the ST3232E (U4), which converts the logic signals to RS-232 voltage levels.

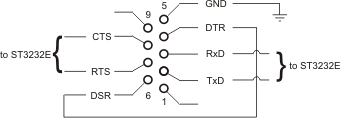

The serial port (COM) is configured as a standard 5-wire interface. The DB9 connector is wired to the RTS, CTS, RX and TX pins of the ST3232E serial UART when jumpers J14, JP15, JP16 and JP17 are in the COM position.
