Downloading to Flash

Download using the Keil ULINK JTAG-Adapter. The steps to setup ULINK for Programming Flash within µVision IDE are:

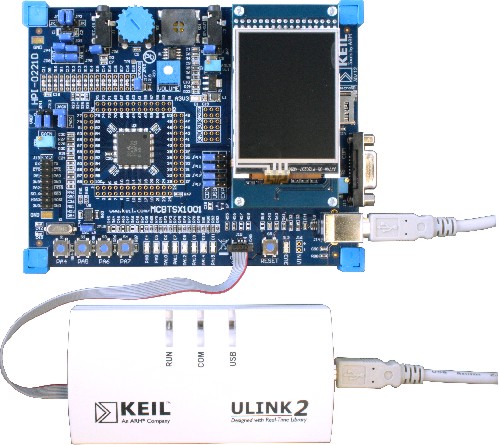

1. Connect the ULINK to the JTAG connector of the MCBTSX1001 Board. Note that the red cable marks pin 1 of the JTAG-connector.



2. Power up the MCBTSX1001 Board.
3. Configure Flash Programming in the Project — Options for Target — Utilities dialog.

   Set the Use Target Driver for Flash Programming option, then select the ULINK2/ME Cortex Debugger as the Flash programming tool.





   Check the Update Target before Debugging option to ensure that the Flash ROM gets programmed whenever the debugger starts.

   Click the Settings button to open the Flash Download Setup dialog for the next step.

4. Configure the Flash Download Setup dialog as follows:

   Set the Download Function options by first selecting Erase Sectors used by the application, then check Program and Verify to verify the Flash contains the downloaded application.




   Set the Start location for for the flash programming algorithm to 0x2000000 in RAM and set the Size to 0x0800.





   Click the Add button and find the TSX1001 Code EEPROM programming algorithm in the list of available algorithms. Select it, then click the Add button to add it to your target.

   Finally, click the OK button to save the Flash Download settings.

5. Download to Flash

   Click the Download to Flash toolbar button. This executes the Flash download program (Target Driver or External) selected in Project — Options for Target — Utilities and downloads the application program into the TSX1001 device.

   Or

   Use the µVision command Flash — Download to download the application program into the TSX1001 device.

ULINK can be also used for application code debugging in Flash ROM or RAM of the TSX1001 microcontroller.
