Setting Target Options

You must select the speed and memory configurations for your target hardware. Since these features of the MCBTSX1001 are fixed, copy the settings as shown below. The steps for setting the target options are:

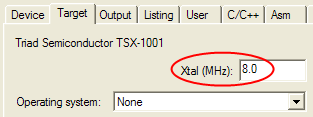

1. Open the Target Tab of the Project — Options for Target dialog.

   Type in the XTAL (MHz) of 8.0 for the oscillator frequency.

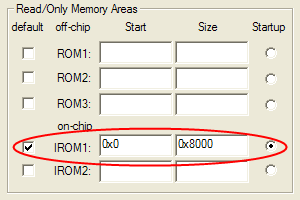

2. Enter the memory ROM area for your target system in IROM1.

   Enter the starting address of 0x0 in Start and the size of 0x8000 in Size.

   The MCBTSX1001 has on-chip ROM from 0x0 to 0x7FFF for a total of 0x8000 bytes.

   Clicking the Startup radio button assigns your startup code to this area of memory.

3. Enter the RAM memory area for your target system in IRAM1.

   Enter the starting address of 0x20000000 in Start and the size of 0x6000 in Size.

   The MCBTSX1001 has on-chip RAM from 0x20000000 to 0x20005FFF for a total of 0x6000 bytes.

Note

• In the licensed (non-evaluation) version of MDK-ARM, the Memory Areas parameters automatically configure the scatter file for the Linker/Locator.
