Creating a Project

Follow the steps below to create a new project file and to specify and organize your source (and debug) files that are a part of this project.

1. Select the ARM Toolset that you want to use for your project.
   The default configuration is the MDK-ARM Toolset and the information below is based on selecting the ARM Compiler.
2. Create a New Project File with the µVision menu command Project — New — µVision Project.
   Select a microcontroller from the Device Database^®.

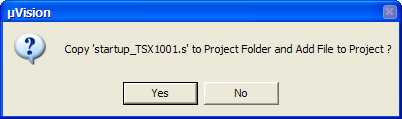

3. Add Startup Code from the folder ..\ARM\STARTUP\TRIAD to your project. After selecting, µVision prompts with the following dialog:



   Answer Yes since this startup code works with TSX1001 projects.

4. Add your own Source Code to the project using the µVision editor (or any editor of your choice) by either:
   • Right clicking the mouse in the Project Window on a group and select Add Files to Group from the context menu.

   • Or

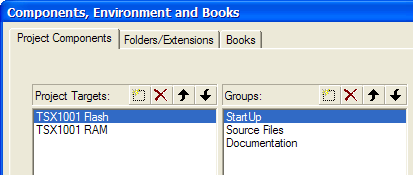

   • Opening the Project — Components, Environment and Books — Project Components dialog.
     Within this dialog, you may create and organize files into groups, or create other project targets with different tool configurations.
