Serial Window

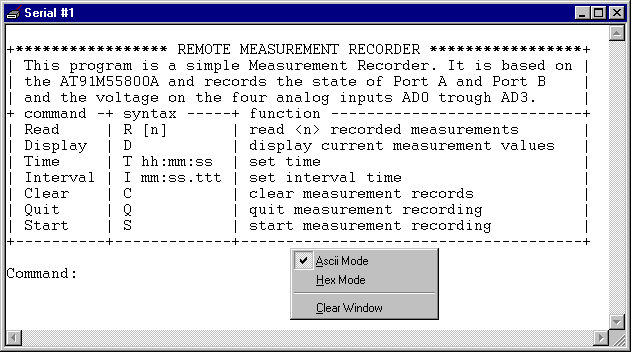

µVision3 provides several Serial Windows for
serial input and output. Serial data output from the simulated CPU is
displayed while characters you type in the Serial Window are
input to the simulated CPU.
This lets you simulate the CPU's UART without the need for external hardware. The serial output may be also assigned to a PC COM port using the ASSIGN command in the Output Window — Command page.
