Review Peripherals and CPU Configuration

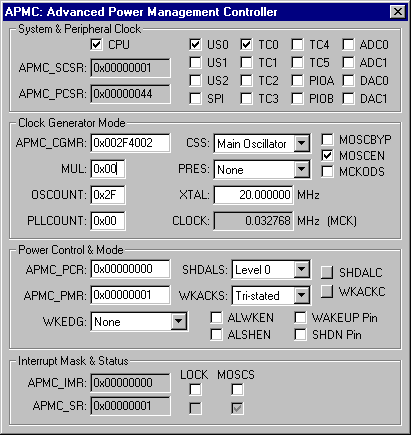

The µVision3 debugger provides dialogs for most peripherals that can be used to verify the initialization value. For example, with the dialog Peripheral — Advanced Power Management Controller you review the CPU configuration of the Atmel AT91M55800A device. Check CPU and peripheral initialization with the simulator first, since wrong settings may not work with the target debugger.
