Breakpoints Dialog
µVision supports complex breakpoints. For example, you may want to halt program execution when a variable contains a certain value. The example shows how to define a breakpoint that triggers when the value 3 is written to current.time.sec.

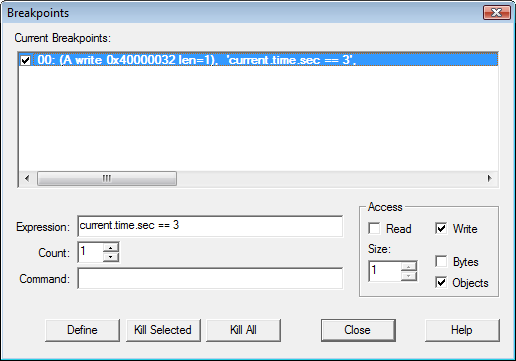

- Open the dialog Debug - Breakpoints.
- Enter into the filed Expression: current.time.sec==3.
- Enable the Write check box (this option specifies that the break condition is triggered only when the value 3 is assigned to the variable).
- Click the button Define to set the breakpoint.
Perform the following steps to test the breakpoint:
| Symbol | Description |
|---|---|
 |
Reset CPU. |
 |
If program execution is halted begin executing the MEASURE program. |
