SVCS Menu
The SVCS Menu allows you to configure and add commands for a Software Version Control System (SVCS), also known as Revision Control.
| Menu Item | Description |
|---|---|
| Configure Software Version Control | Configures the commands of your version control system. |

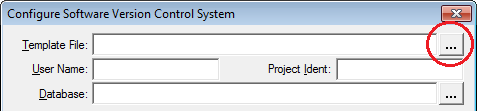

The content of the SVCS Menu depends on the Template File that you are using. Template files are provided for the version control systems listed below and are selected using the Configure Software Version Control System dialog.
The following template files are provided in the folder root\UV4:
| Template File | Version Control System | Version |
|---|---|---|
| CS RCS.SVCS | CS-RCS for Windows | any Version |
| CVS.SVCS | Concurrent Versions System | any Version |
| GIT.SVCS | Git for Windows | any Version |
| Microsoft Visual SourceSafe.SVCS | Microsoft Visual SourceSafe | Version 4 |
| Microsoft Visual SourceSafe5.SVCS | Microsoft Visual SourceSafe | Version 5 |
| Microsoft Visual SourceSafe6.SVCS | Microsoft Visual SourceSafe | Version 6 |
| MKS Source Integrity.SVCS | PTC Integrity | any Version |
| Perforce.SVCS | Perforce | any Version |
| Rational ClearCase.SVCS | Rational ClearCase | any Version |
| TortoiseSVN.SVCS | TortoiseSVN | any Version |
Note
- Detailed description is provided in Application Note 279: Using Git for Project Management with uVision.
