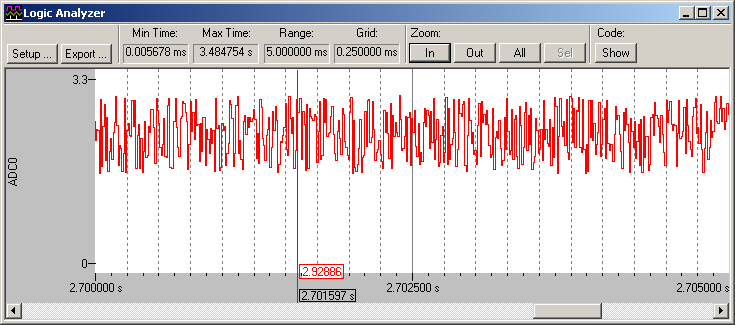

Noise SignalThe following Signal Function template may be used to noise signal pattern. The input signal is provided to the VTREG ADC0. The variables volts, frequency, offset, and duration allow to adjust the noise signal. // // Generate Noise Signal on AD Channel 0 // signal void ADC0_Noise (void) { float volts; // peak-to-peak volatage float frequency; // output frequency in Hz float offset; // volatge offset float duration; // duration in Seconds float val; long i, end; volts = 1.4; offset = 1.6; duration = 0.1; printf ("Sine Wave Signal on AD Channel 0.\n"); end = (duration * 100000); for (i = 0 ; i < end; i++) { val = ((float) rand (0)) / 32767.0; ADC0 = (val * volts) + offset; swatch (0.00001); // in 10 uSec steps } } The above setting generates the following signal on the ADC0 input.
| ||||||||||
|
