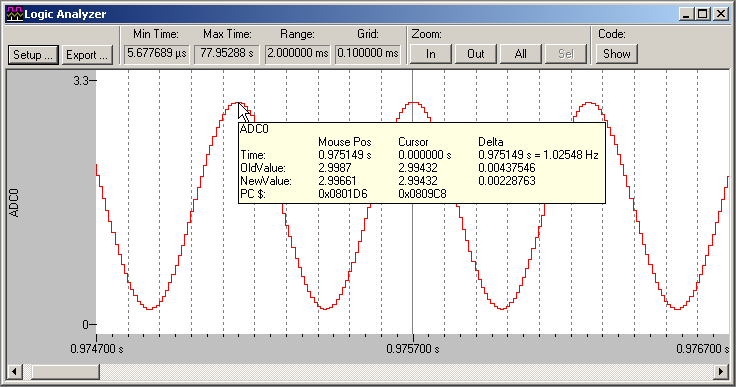

Sine WaveThe following signal function template may be used to generate a sine wave signal. The input signal is provided to the VTREG ADC0. The variables volts, frequency, offset, and duration allow to adjust the sine wave signal. // // Generate Sine Wave Signal on AD Channel 0 // signal void ADC0_Sine (void) { float volts; // peak-to-peak voltage float frequency; // output frequency in Hz float offset; // voltage offset float duration; // duration in Seconds float val; long i, end; volts = 1.4; offset = 1.6; frequency = 1800; duration = 0.1; printf ("Sine Wave Signal on AD Channel 0.\n"); end = (duration * 100000); for (i = 0 ; i < end; i++) { val = __sin (frequency * (((float) STATES) / CLOCK) * 2 * 3.1415926); ADC0 = (val * volts) + offset; swatch (0.00001); // in 10 uSec steps } } The above setting generates the following output.
| ||||||||||
|
