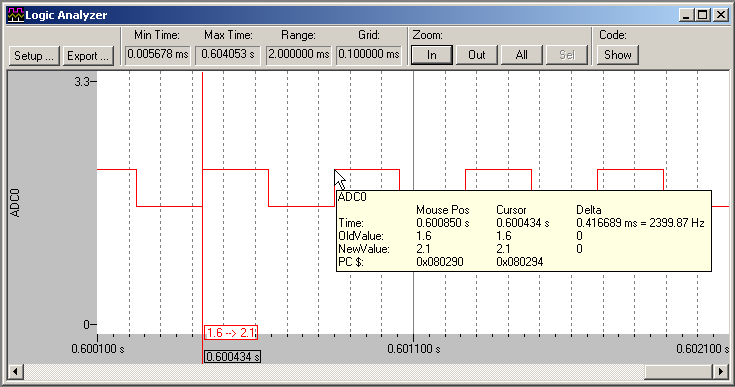

Square Wave SignalThe following signal function template may be used to generate a square wave signal. The input signal is provided to the VTREG ADC0. The variables volts, frequency, offset, and duration allow to adjust the square wave signal. // // Generates an Square Wave Signal on AD Channel 0 // signal void ADC0_Square (void) { float volts; // peak-to-peak volatage float frequency; // output frequency in Hz float offset; // volatge offset float duration; // duration in Seconds volts = 0.5; offset = 1.6; frequency = 2400; duration = 0.5; printf ("Square Wave Signal on AD Channel 0.\n"); while (duration > 0.0) { ADC0 = volts + offset; swatch (0.5 / frequency); ADC0 = offset; swatch (0.5 / frequency); duration -= 1.0 / frequency; } } The above setting generates the following output.
| ||||||||||
|
