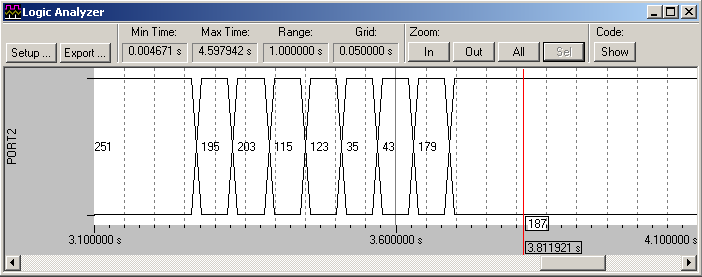

Impulse PatternsThe following Signal Function generates a signal impulse pattern as it is typical in many embedded systems. In this case it is the input of a DTMF receiver as they are common in telecom applications. // // Generate Input Signal Pattern from a DTMF Receiver // signal void SendDtmf (unsigned char digit) { if (digit == 0) digit = 10; PORT2 = (PORT2 & 0x07) | (digit << 4); swatch (0.06); PORT2 |= 0x8; } signal void Send (void) { SendDtmf (12); // send digit 12 = '*' swatch (0.12); SendDtmf (7); // send digit 7 swatch (0.12); SendDtmf (2); // send digit 2 swatch (0.12); SendDtmf (11); // send digit 11 = '#' } The above Signal Function generates the following input pattern on Port 2.
| ||||||||||
|
