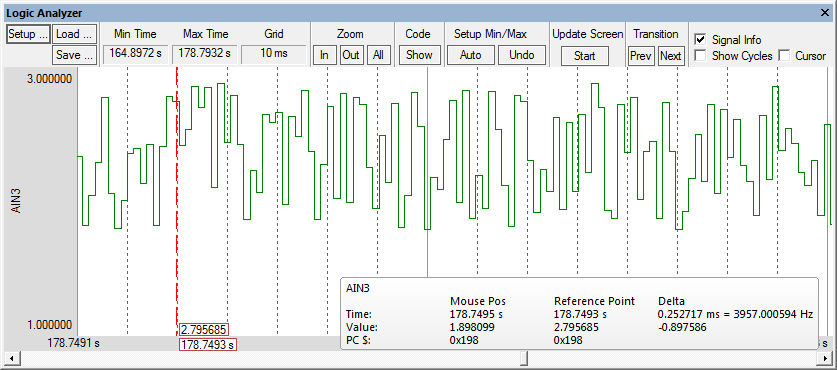

Noise SignalThe following signal function generates a noise signal pattern. The input signal is provided to the VTREG AIN3. The variables volts, frequency, offset, and duration are used to adjust the signal. /*---------------------------------------------------------------------- Generate Noise Signal on AD Channel 3 ----------------------------------------------------------------------*/ SIGNAL void AIN3_Noise (void) { float volts; // peak-to-peak volatage float frequency; // output frequency in Hz float offset; // volatge offset float duration; // duration in Seconds float val; long i, limited; volts = 1.4; offset = 1.6; duration = 0.1; printf ("Noise Signal on AD Channel 3.\n"); limited = (duration * 100000); for (i = 0 ; i < limited; i++) { val = ((float) rand(0)) / 32767.0; AIN3 = (val * volts) + offset; swatch (0.00001); // in 10 uSec steps } } DEFINE BUTTON "AIN3 Noise","AIN3_Noise()" Start debugging in simulation mode and drag the port into the Logic Analyzer. Open the Toolbox and click the button AIN3 Noise to view the signal output:
| ||||||||||
|
