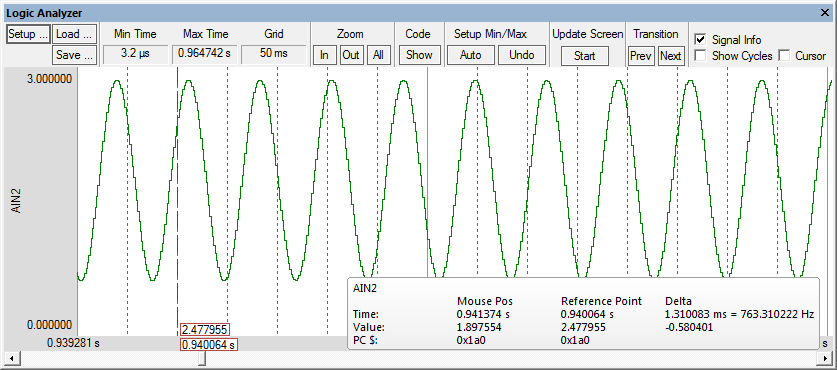

Sine WaveThe following signal function generates a sine wave signal. The input signal is provided to the VTREG AIN2. The variables volts, frequency, offset, and duration are used to adjust the signal. /*---------------------------------------------------------------------- Generate Sine Wave Signal on AD Channel 2 ----------------------------------------------------------------------*/ SIGNAL void AIN2_Sine (void) { float volts; // peak-to-peak voltage float frequency; // output frequency in Hz float offset; // voltage offset float duration; // duration in Seconds float val; long i, end; volts = 1.4; offset = 1.6; frequency = 1800; duration = 0.1; printf ("Sine Wave Signal on AD Channel 2.\n"); end = (duration * 100000); for (i = 0 ; i < end; i++) { val = __sin (frequency * (((float) STATES) / CLOCK) * 2 * 3.1415926); AIN2 = (val * volts) + offset; swatch (0.00001); // in 10 uSec steps } } DEFINE BUTTON "AIN2 Sin","AIN2_Sine()" Start debugging in simulation mode and drag the port into the Logic Analyzer. Open the Toolbox and click the button AIN2 Sin to view the signal output:
| ||||||||||
|
