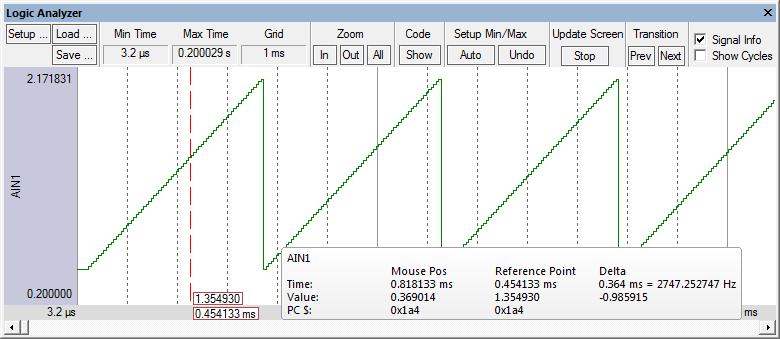

Saw Tooth SignalThe following signal function generates a saw tooth signal. The input signal is provided to the VTREG AIN1. The variables volts, frequency, offset, and duration are used to adjust the signal. /*---------------------------------------------------*/ /* Generate Sawtooth Signal on AD Channel 1 */ /*---------------------------------------------------*/ // SIGNAL void AIN1_Saw (void) { float volts; // peak-to-peak volatage float frequency; // output frequency in Hz float offset; // volatge offset float duration; // duration in Seconds float val; long i, end, steps; volts = 2.0; offset = 0.2; frequency = 1400; duration = 0.2; printf ("Sawtooth Signal on AD Channel 1.\n"); steps = (100000 * (1/frequency)); end = (duration * 100000); for (i = 0 ; i < end; i++) { val = (i % steps) / ((float) steps); AIN1 = (val * volts) + offset; swatch (0.00001); // in 10 uSec increments } } DEFINE BUTTON "AIN1 Saw","AIN1_Saw()" Start debugging in simulation mode and drag the port into the Logic Analyzer. Open the Toolbox and click the button AIN1 Saw to view the signal output:
| ||||||||||
|
