Symbols Window

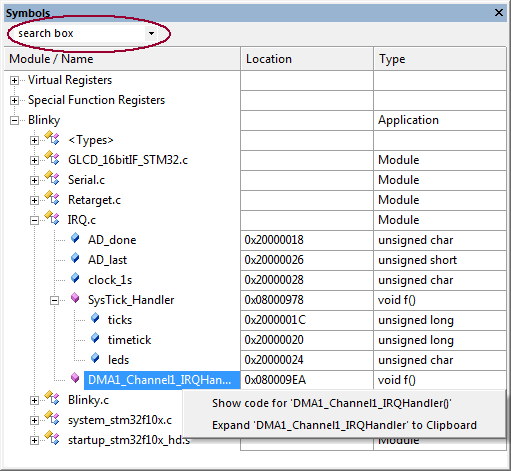

The Symbols window shows debug information about the application symbol name, location, and the symbol type. For functions, the window shows the return and parameter type.
Enable Options for Target - Output - Debug Information and compile the code to generate application debug information.
Open the window through the toolbar button or via
the menu View — Symbol Window.
Where
| search box | Allows finding symbol names quickly. The search string can consist of alphanumeric characters and mask characters as described in the appendix F. TR1 Search Expressions. |
| Module / Name |
Lists the symbol names, which are grouped as:
Symbol names are marked with different icons:
|
| Location | Shows the memory address, offset, or explanatory text. |
| Type | Shows the symbol type and for functions the return type. |
Modules - with a box
containing the colors yellow, violet, and blue.
Variables and Types -
with a blue box.
Functions - with a violet
box.
Function Arguments - with a
blue box preceded by a red arrow.
The context menu allows:
- Jumping to the code (for functions).
- Copying the symbol name to the clipboard.
- Adding variables to other windows.
Drag & drop symbols to other debug windows such as the Watch, Memory, or Command window.
